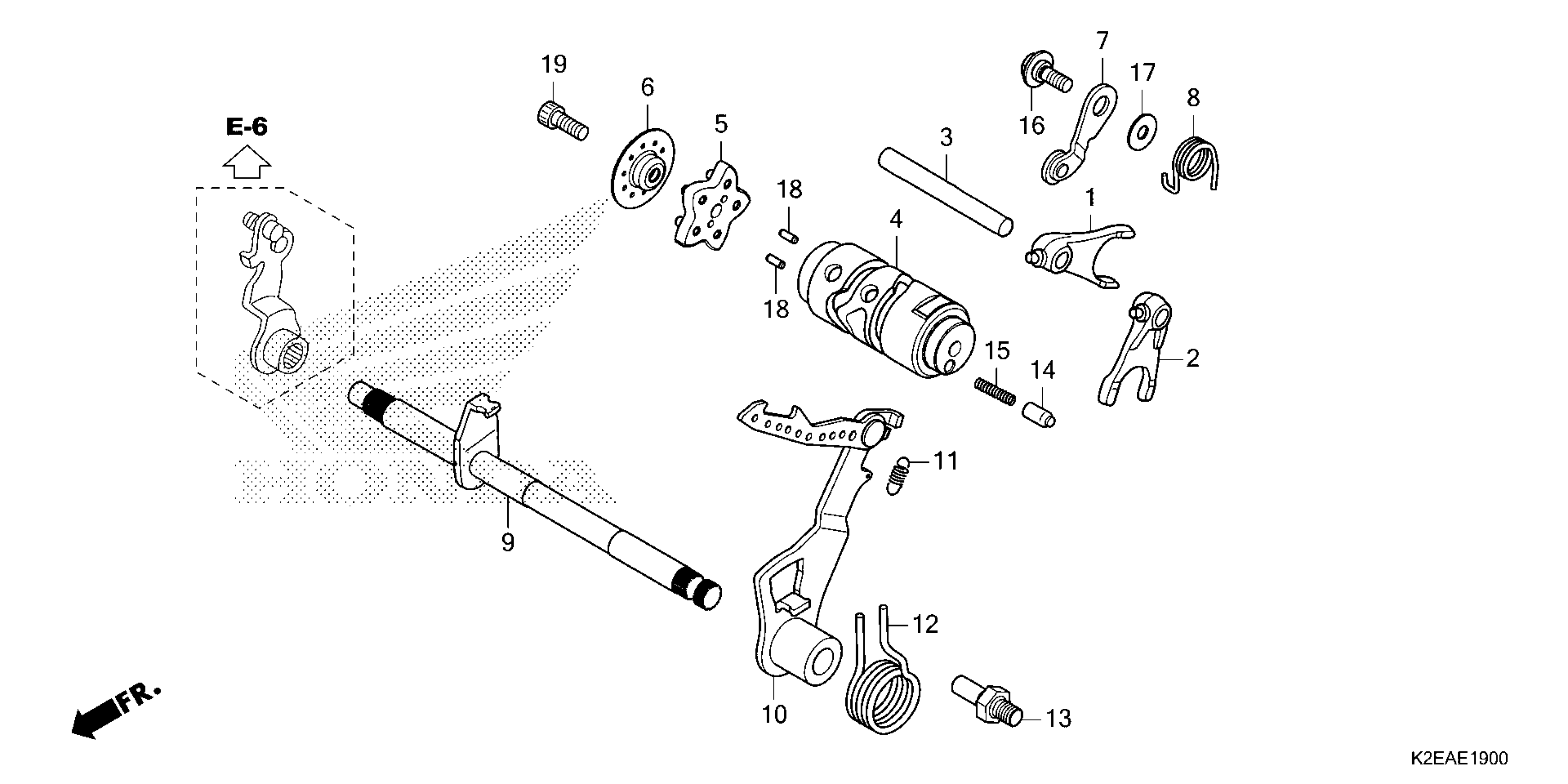

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 GEARSHIFT DRUM Diagram

Description

Price

FORK, R. GEARSHIFT

24211-K1M-T00

$12.59

FORK, L. GEARSHIFT

24212-K1M-T00

$12.59

SHAFT

24241-K1M-T00

$2.56

DRUM, GEARSHIFT

24301-K2E-A10

$32.97

PLATE

24410-K2E-A10

$35.87

HOLDER, DRUM STOPPER

24421-K1M-T00

$1.93

STOPPER, GEARSHIFT DRUM

24430-K1M-T00

$10.51

SPRING

24435-K1M-T00

$1.44

SPINDLE, GEARSHIFT

24610-K1M-T00

$16.82

ARM, GEARSHIFT

24630-K1M-T00

$9.26

SPRING, GEARSHIFT ARM

24641-K1M-T00

$1.78

SPRING, GEARSHIFT RETURN

24651-KPH-900

$2.09

PIN, SHIFT RETURN SPRING

24652-KPH-900

$4.28

CAP, CHANGE SWITCH CONTACT

35751-K26-920

$5.35

SPRING, CHANGE SWITCH CONTACT

35752-KPH-900

$0.46

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.29

WASHER (6.1MM)

90435-HB3-000

$2.80

ROLLER (3X8.5)

96220-30085

$0.49

BOLT, SOCKET (6X16)

96600-06016-00

$1.60
