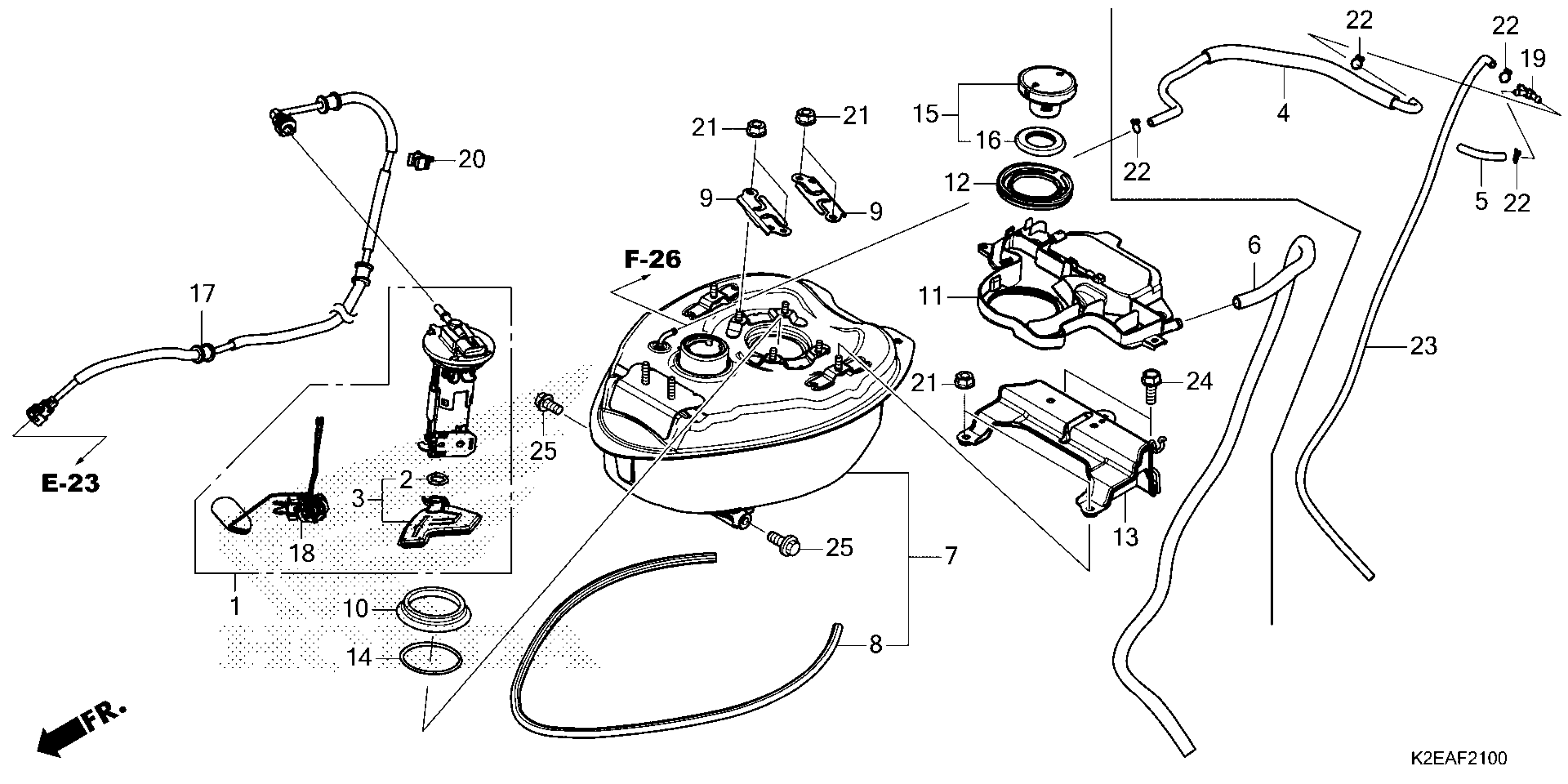

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT ASSY., FUEL (MITSUBA) (MSDS)

16700-K2E-T01

$126.18

O-RING (P7)

16706-KVB-S51

$1.03

FILTER SET

16707-KZV-T01

$9.51

TUBE, FUEL DRAIN

17417-K2E-T00

$11.43

TANK, FUEL *GY157P*

17500-K2E-T00ZC

$309.93

TANK ASSY., FUEL *YR344* (TURMERIC YELLOW) (NOT AVAILABLE)

17500-K2E-T00ZD

$288.74

RUBBER, FUEL TANK

17511-K2E-T00

$3.91

RETAINER, FUEL PUMP

17517-GGL-J00

$6.82

DUST SEAL (OHTUKA POLY-TECH)

17518-GHB-601

$7.69

TRAY, FUEL

17525-K2E-T00

$18.94

RUBBER, FUEL SEAL

17527-KZR-600

$2.41

PLATE, SEAT MOUNTING

17535-K2E-T00

$44.65

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$8.58

CAP, FUEL FILLER

17620-K01-902

Unavailable

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

HOSE, FUEL FEED

17650-K2E-T11

$16.51

FUEL UNIT (NIPPON SEIKI)

37800-K2E-T01

$39.00

CLIP, PIPE

90661-KPH-701

$2.94

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

BOLT, FLANGE (8X20)

95701-08020-08

$1.46
