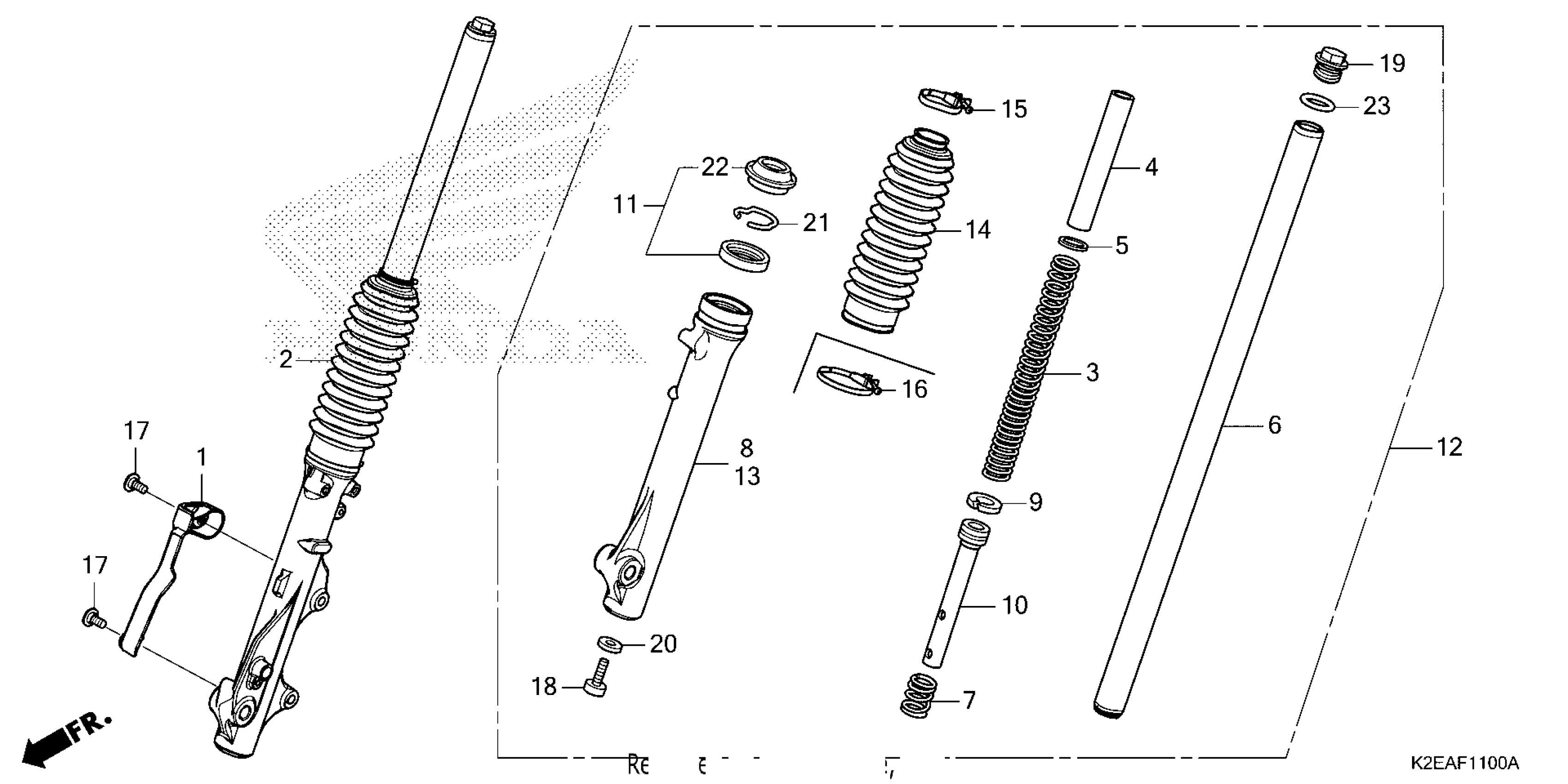

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 FRONT FORK Diagram

#

Description
Price

1

GUARD SET, ABS SENSOR (TYPE1) (WL)

38510-K2E-T00ZA

$6.74

2

FORK ASSY., R. FR. | Use up to Frame SN R5103764.

51400-K2E-T12

Unavailable

2

FORK ASSY., FR. R | Use from Frame SN R5103765.

51400-K2E-T13

$219.25

3

SPRING, FR. FORK

51401-K2E-T11

$11.26

4

COLLAR, SPRING

51402-K2E-T11

$3.13

5

JOINT, FR. FORK SPRING

51403-GF4-003

Unavailable

6

PIPE, FR. FORK (SHOWA)

51410-K2E-T01

$66.16

7

SPRING, REBOUND (SHOWA)

51412-GN5-901

$4.92

8

CASE, R. FR. (LOWER) (SHOWA)

51420-K2E-T01

$53.90

9

RING, PISTON

51437-KWB-601

$1.49

10

PIPE, SEAT

51470-K2E-T11

$3.48

11

SEAL SET, FR. FORK

51490-K88-L01

$9.44

12

FORK ASSY., L. FR. | Use up to Frame SN R5103764.

51500-K2E-T12

Unavailable

12

FORK ASSY., FR. L | Use from Frame SN R5103765.

51500-K2E-T13

$211.44

13

CASE, L. FR. (LOWER) (SHOWA)

51520-K2E-T01

$54.11

14

BOOT, FR. FORK | Use up to Frame SN R5103764.

51611-K2E-T02

$110.41

14

BOOT, FR. FORK (SHOWA) | Use from Frame SN R5103765.

51611-K2E-J11

$12.67

15

BAND A, BOOT

51612-K88-L01

$27.82

16

BAND B, BOOT | Use up to Frame SN R5103764.

51613-K88-L01

$9.95

17

SCREW, SPECIAL (5MM)

90102-K2E-T00

$1.49

18

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

19

BOLT, FORK

90123-KW7-901

$5.52

20

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

21

RING, OIL SEAL STOPPER (SHOWA)

90601-383-721

$5.13

22

DUST SEAL (SHOWA)

91254-GN1-013

$13.86

23

O-RING (16.8X2.4)

91256-166-003

$2.39
