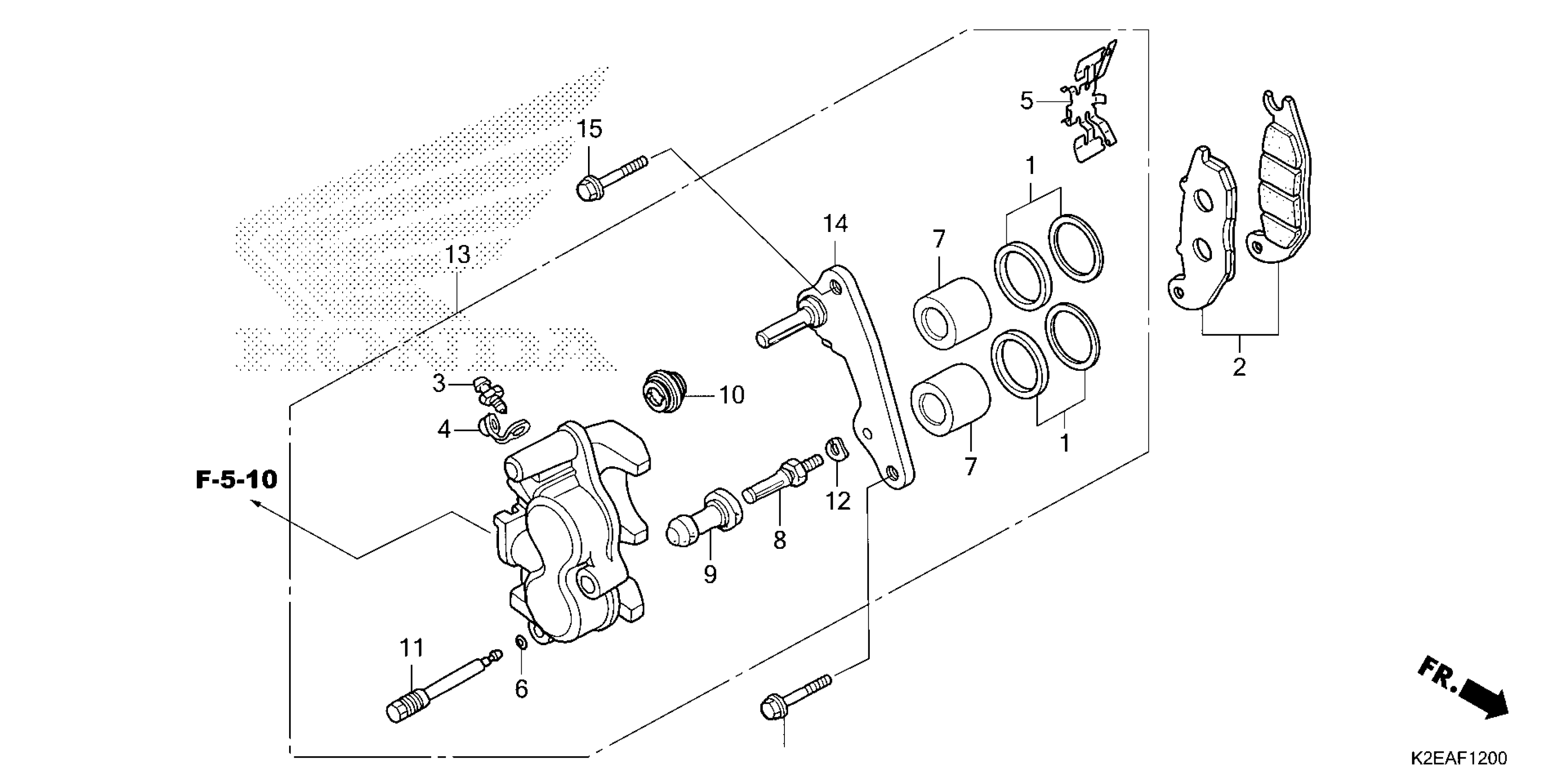

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-2, TOTAL QTY-3)

06451-GE2-405

$10.47

PAD SET, FR.

06455-KPP-N02

$19.29

SCREW, BLEEDER (NISSIN) This part replaces 43352-K81-N01.

43352-568-003

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SPRING, PAD

45108-KPH-951

$1.76

RING, STOPPER

45111-MAJ-G41

$3.63

PISTON A (25X27)

45117-MAJ-G41

$25.95

BOLT, PIN

45131-GZ0-006

$8.21

BOLT, PIN This part replaces 45131-K81-N01.

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-KPH-951

$2.65

WASHER, WAVE (NISSIN)

45216-166-006

$2.16

CALIPER SUB-ASSY.

45250-K2E-T11

$74.40

BRACKET SUB-ASSY.

45290-K2E-T11

$23.10

BOLT, FLANGE (8X25)

90155-GGZ-J00

$1.87
