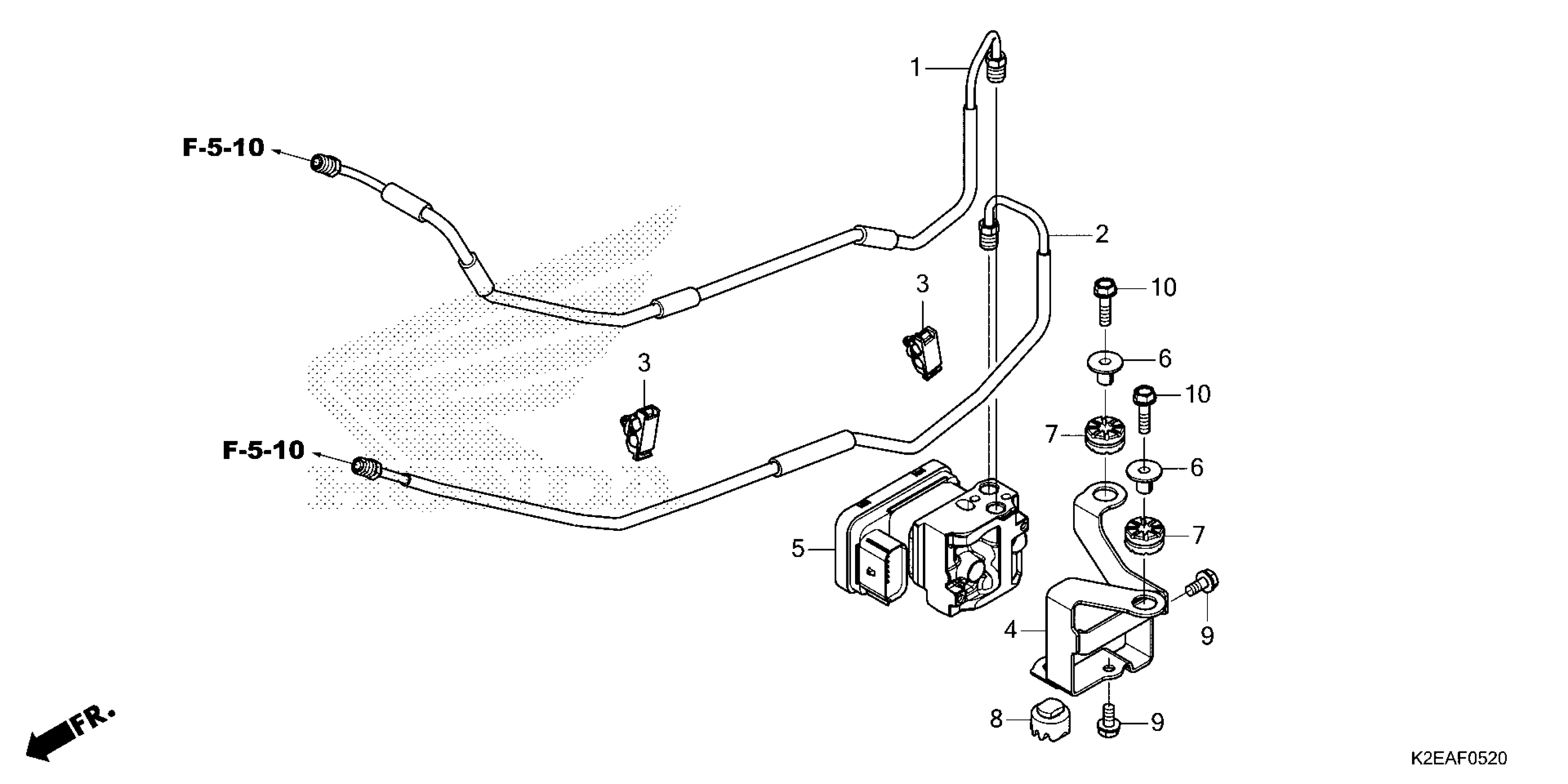

Honda CT125AAC (24) MOTORCYCLE, THA, VIN# MLHJA655-R5100001 TO MLHJA655-R5199999 ABS MODULATOR@BRAKE PIPE Diagram

PIPE A, FR. BRAKE

45126-K2E-T00

$16.24

PIPE B, FR. BRAKE

45127-K2E-T00

$13.19

CLIP, BRAKE PIPE

46392-TF0-003

$1.75

BRACKET, ABS MODULATOR

50245-K0G-950

$48.37

MODULATOR ASSY.

57110-K2E-T11

$671.62

COLLAR, RADIATOR MOUNTING

61102-KTY-D30

$3.83

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

RUBBER B, SEAT SETTING

77214-KPH-900

$1.18

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X22)

95701-06022-00

$1.66
