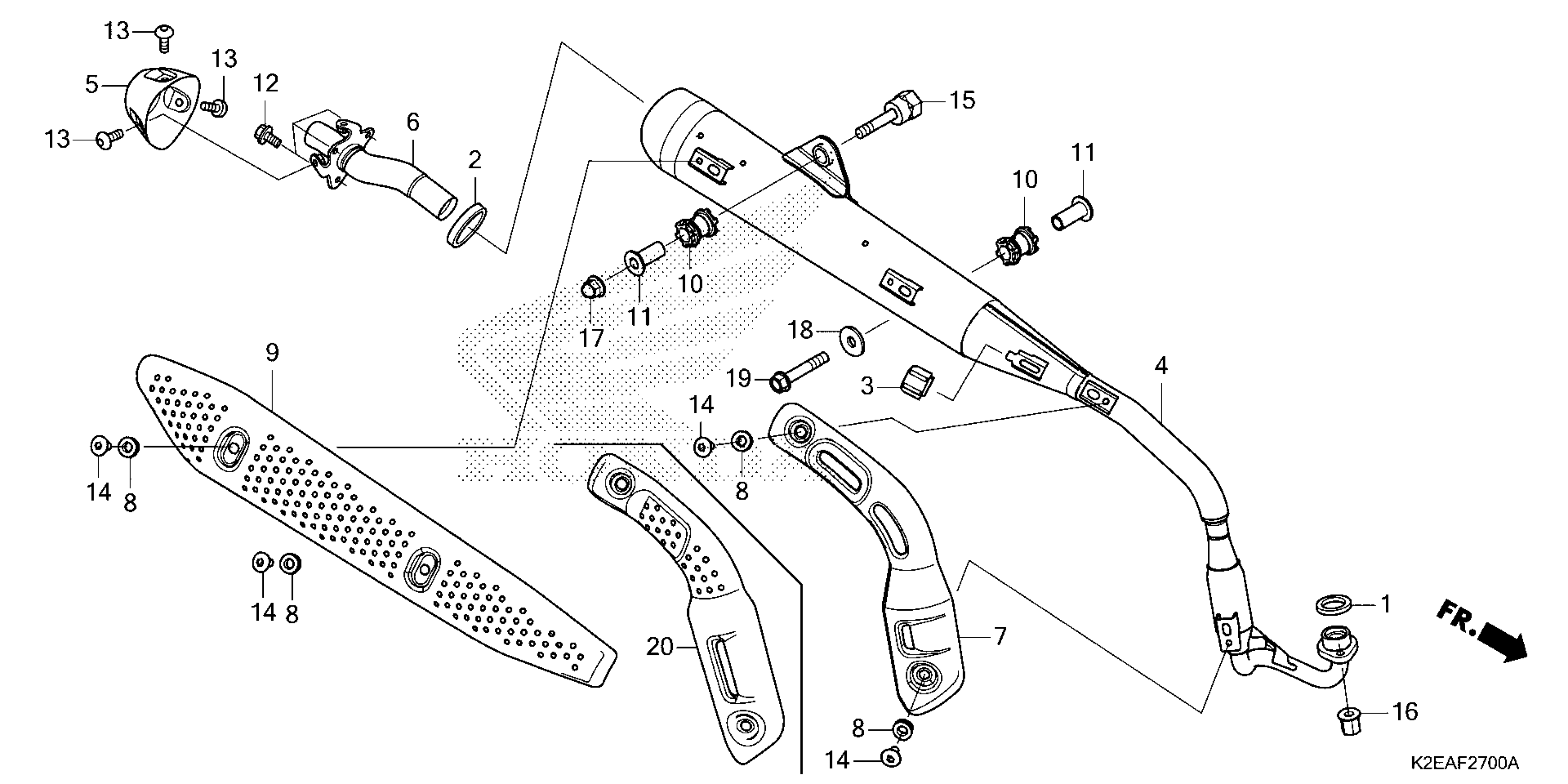

Honda CT125AAC (23) MOTORCYCLE, THA, VIN# MLHJA655-P5000001 TO MLHJA655-P5099999 MUFFLER Diagram

GASKET, EX. PIPE

18291-GE2-920

$6.48

GASKET A, EX. PIPE

18291-KR1-680

$8.69

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER, EX.

18300-K2E-A11

$864.13

CAP, TAIL

18306-K2E-A00

$160.52

ARRESTER, SPARK

18317-K2E-A00

$229.23

COVER, EX. PIPE

18325-K2E-T00

$71.41

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER, MUFFLER

18356-K2E-T00

$169.83

RUBBER, MUFFLER MOUNTING

18421-K26-B00

$1.49

COLLAR, MUFFLER MOUNTING

18422-K26-900

$4.49

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

SCREW, PAN (6X10)

90106-GBB-710

$1.49

SCREW, PAN (6X12)

90113-GFP-B00

$3.58

BOLT, ADAPTER (8MM)

90165-K2E-T00

$7.26

NUT, FLANGE (8MM)

90301-KWB-600

$1.49

NUT, CAP (8MM)

90443-KTM-970

$1.49

WASHER, PLAIN (8MM)

94103-08700

$1.49

BOLT, FLANGE (8X45)

95701-08045-07

$2.17
