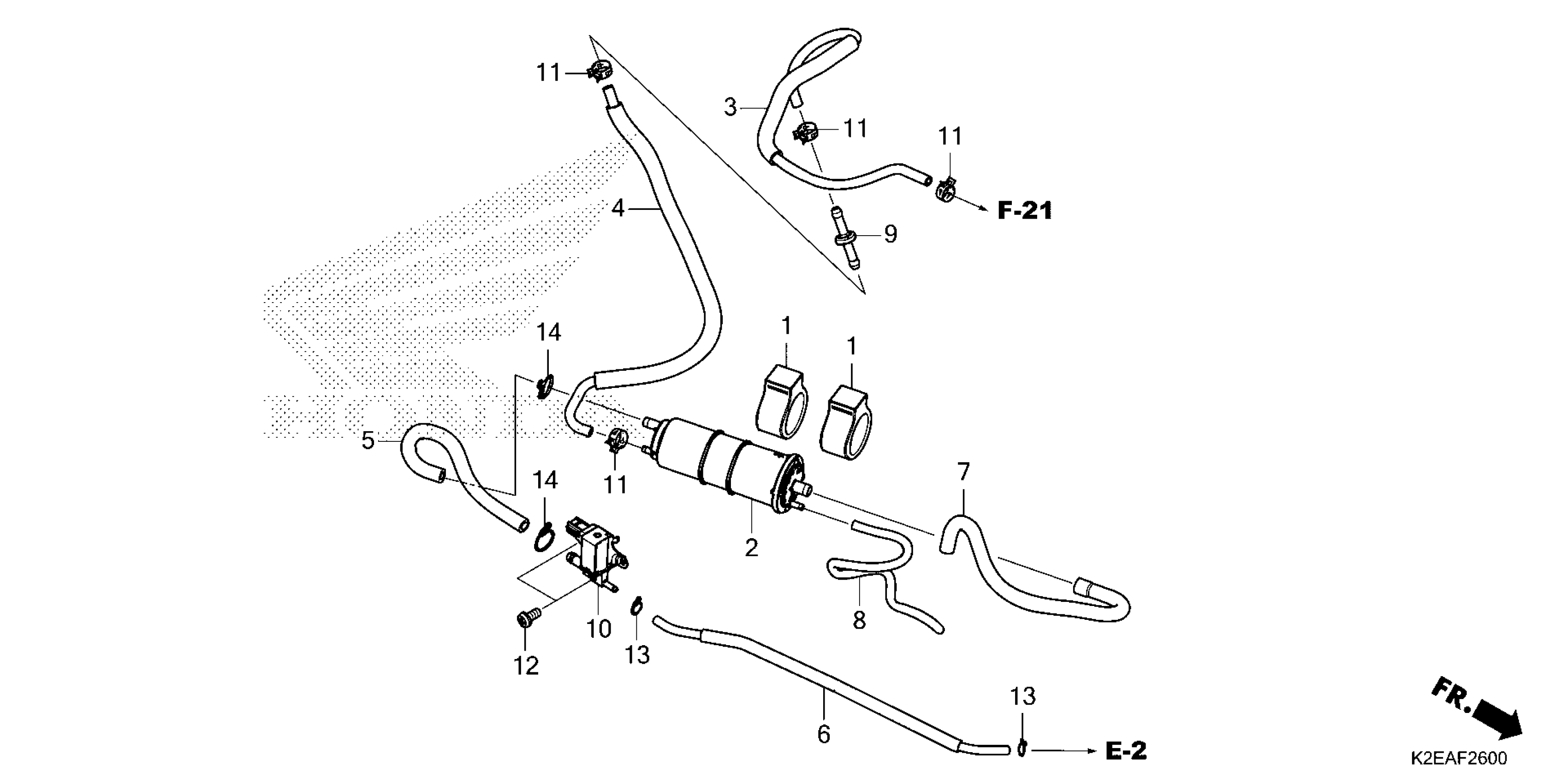

Honda CT125AAC (23) MOTORCYCLE, THA, VIN# MLHJA655-P5000001 TO MLHJA655-P5099999 CANISTER Diagram

#

Description
Price

1

RUBBER, CANISTER MOUNT

17311-GFM-K00

$8.90

2

CANISTER

17410-GFM-K01

$56.57

3

TUBE A, CHARGE

17411-K2E-T00

$39.44

4

TUBE B, CHARGE

17412-K2E-T00

$39.93

5

TUBE A, PURGE

17413-K2E-T00

$5.84

6

TUBE B, PURGE

17414-K2E-J10

$5.97

7

TUBE, AIR

17415-K2E-T00

$6.84

8

TUBE, DRAIN

17416-K2E-T00

$6.35

9

JOINT, FUEL TUBE

17561-K98-E00

$2.24

10

VALVE, PURGE CONTROL SOLENOID

36162-K48-A01

$126.47

11

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

12

SCREW, PAN (5X10)

93500-05010-0H

Unavailable

13

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.62

14

CLIP, TUBE (B12.5)

95002-02130

$1.06
