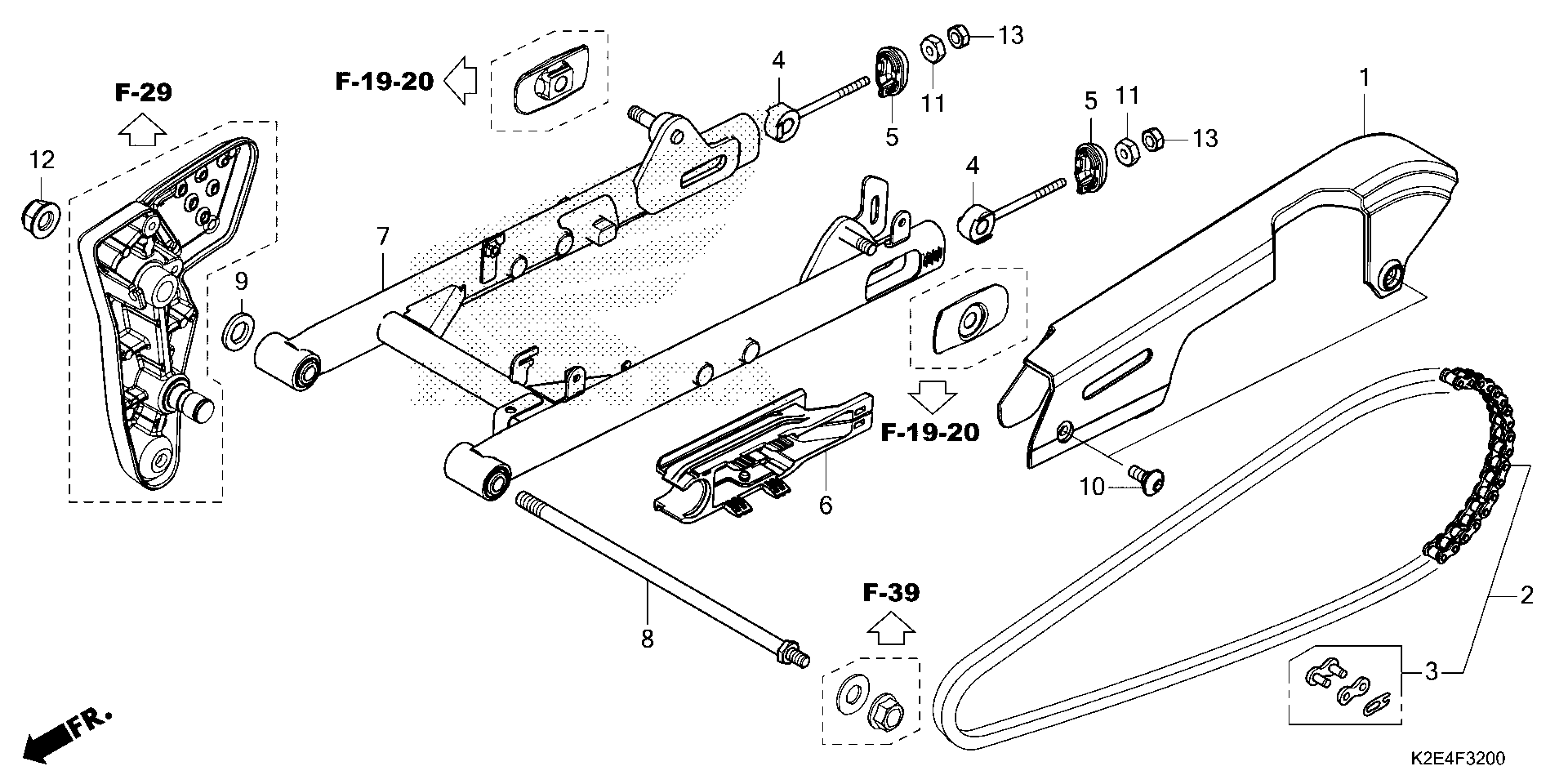

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 SWINGARM@CHAIN CASE Diagram

CASE, DRIVE CHAIN

40510-K2E-T00

$31.88

CHAIN, DRIVE (DID428HDS3-108RB) (DAIDO)

40530-K2E-T01

$25.61

MASTER LINK (DAIDO)

40531-KTA-911

$5.77

ADJUSTER, CHAIN

40543-K0G-900

$8.47

CAP, SWINGARM END

40546-K0G-900

$8.84

SLIDER, CHAIN

52170-K0G-900

$16.81

SWINGARM SUB-ASSY., RR. *R354* (GLOWING RED)

52200-K2E-T00ZB

$156.99

BOLT, SWINGARM PIVOT

90121-K2E-T00

$6.71

WASHER, PIVOT BOLT

90122-KWB-600

$0.64

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

NUT, SPECIAL (6MM)

90302-KZV-J00

$1.17

NUT, U (12MM)

90306-KWN-701

$3.77

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

NUT, HEX. (6MM)

94001-06200-0S

$1.19
