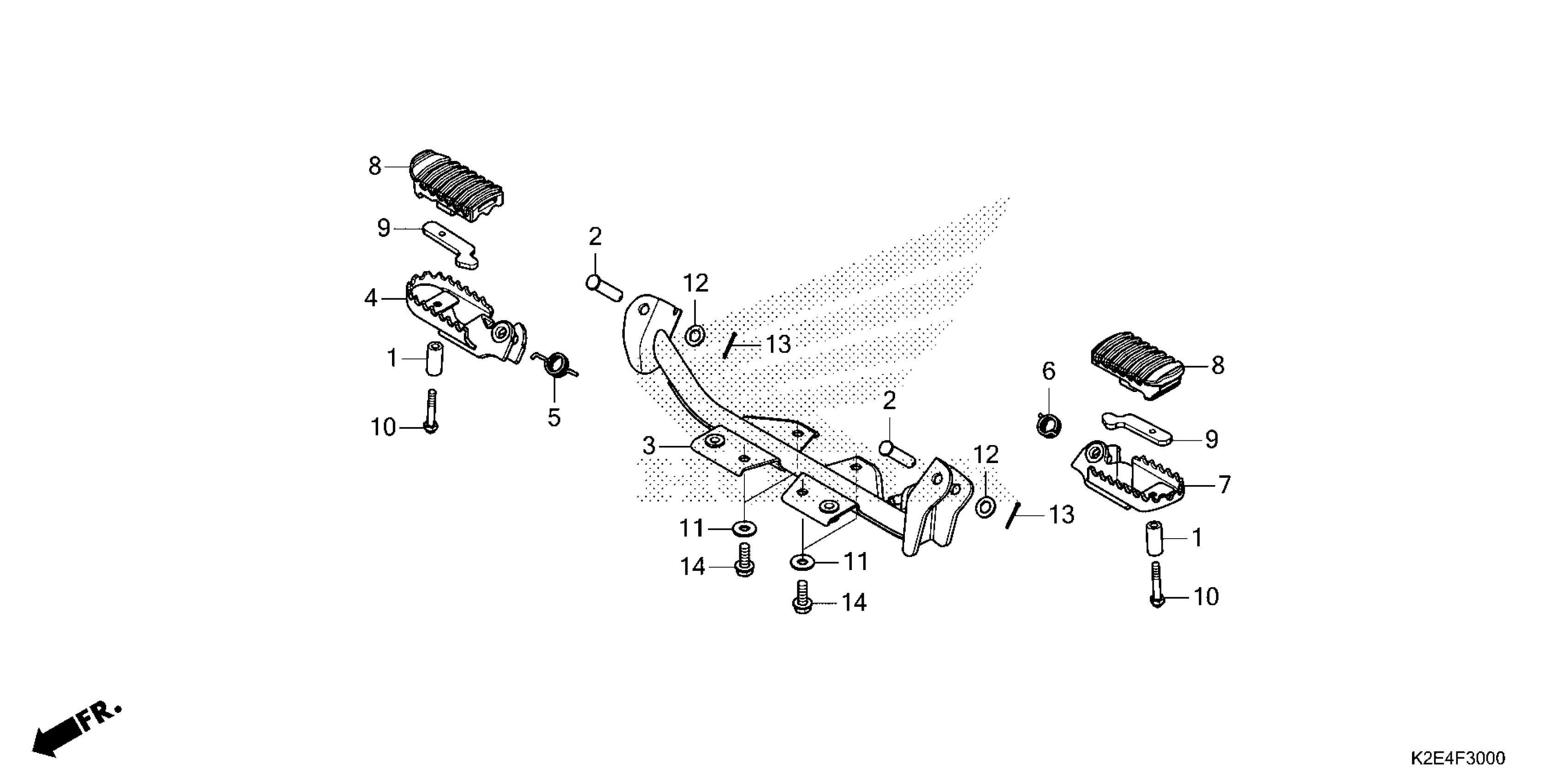

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 STEP Diagram

#

Description
Price

1

COLLAR, STEP (LOWER)

50602-K0A-J30

$2.24

2

PIN, STEP JOINT

50603-KZZ-900

$3.44

3

BAR, STEP

50610-K2E-J00

$50.56

4

STEP, R.

50616-K2E-T00

$19.31

5

SPRING, R. STEP RETURN

50617-K87-A00

$1.96

6

SPRING, L. STEP RETURN

50618-K87-A00

$1.96

7

STEP, L.

50626-K2E-T00

$19.31

8

RUBBER, STEP

50661-K2E-T00

$4.62

9

PLATE, STEP RUBBER SETTING

50662-K87-A00

$2.35

10

BOLT, CAP (6X35)

90118-K2E-T00

$1.82

11

WASHER (8.5X20)

90526-K87-A00

$1.00

12

WASHER, PLAIN (10MM)

94102-10000

$0.88

13

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.01

13

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.01

13

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.01

13

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.01

13

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

13

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

13

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.01

13

PIN, COTTER (2.0X22)

94201-29220

$1.01

14

BOLT, FLANGE (8X20)

95701-08020-00

$1.87
