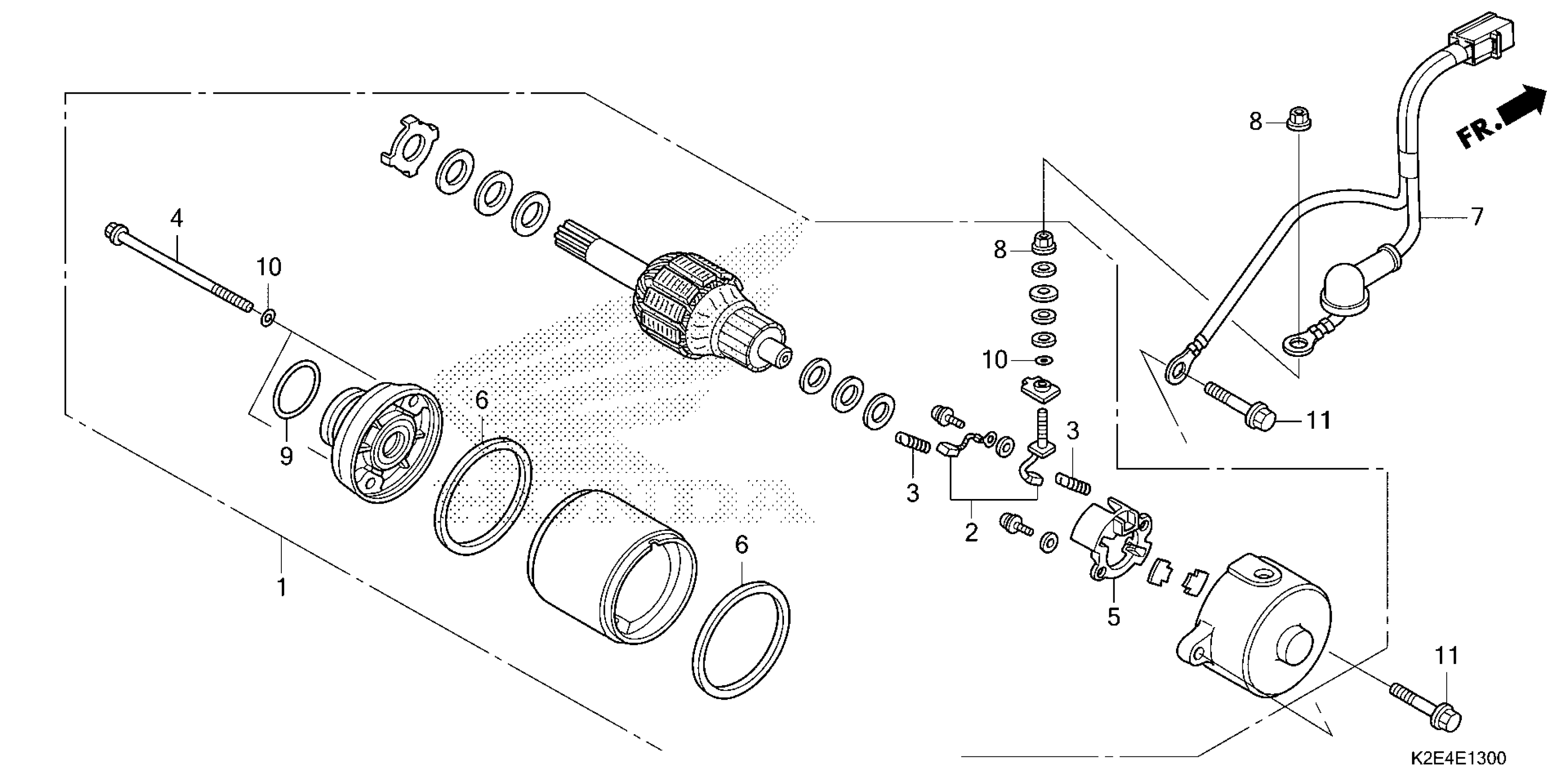

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 STARTER MOTOR Diagram

STARTER MOTOR ASSY. (MITSUBA)

31200-KPW-901

$154.69

TERMINAL SET, BRUSH

31201-KVS-J01

$10.91

SPRING, CARBON BRUSH

31204-KG8-004

$3.28

BOLT, SETTING

31205-KPW-901

$2.35

HOLDER, BRUSH

31206-KPW-901

$2.01

RING

31207-MBE-008

$3.90

CABLE, STARTER MOTOR

32410-K2E-T00

$8.22

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
