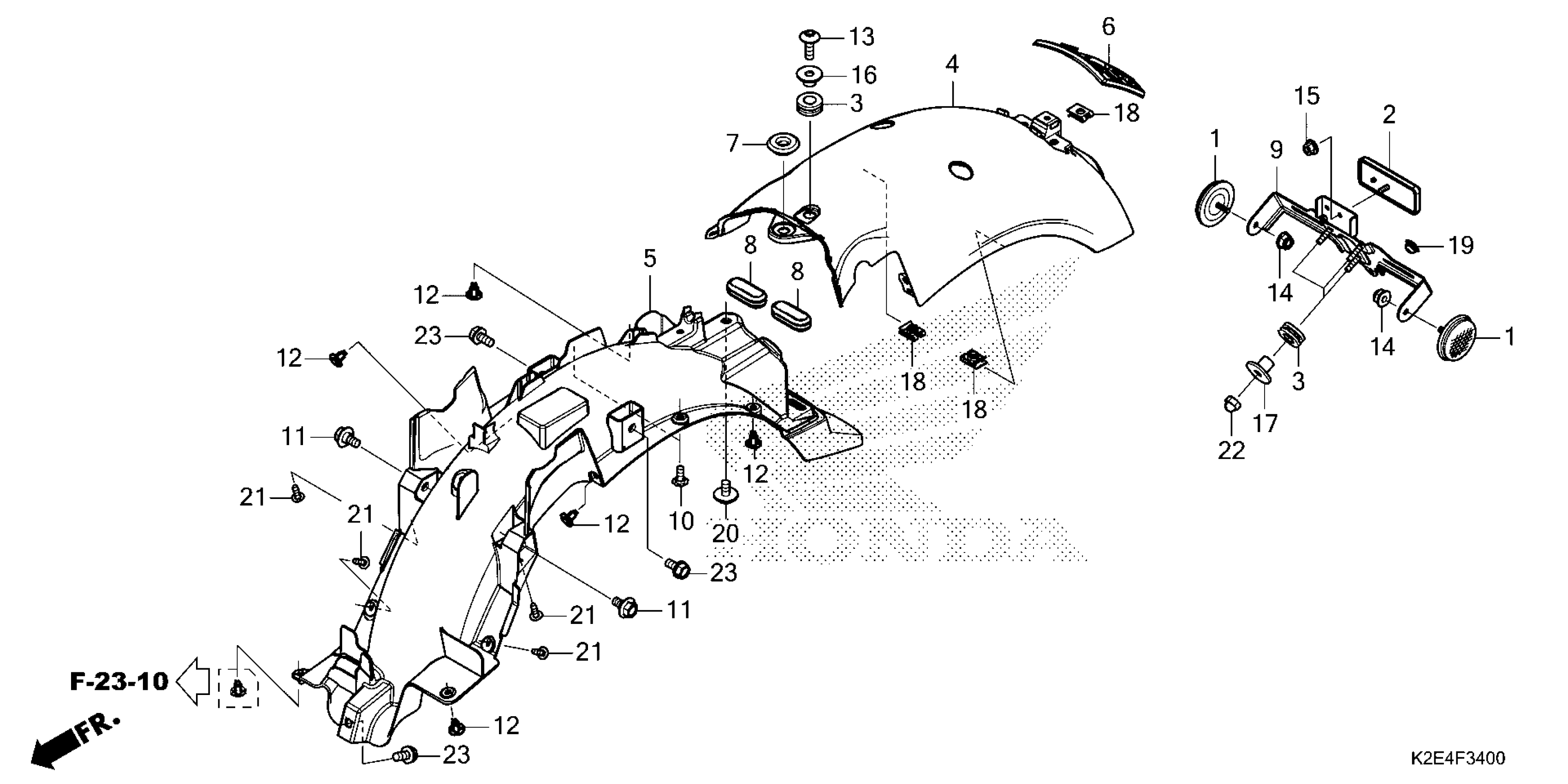

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 REAR FENDER Diagram

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$24.28

REFLECTOR, REFLEX

33741-KWN-901

$10.21

GROMMET, MAIN PIPE COVER

64312-KWW-640

$1.49

FENDER, RR. *R354* (GLOWING RED)

80100-K2E-T00ZB

$78.52

FENDER (INNER)

80102-K2E-T00

$44.87

RUBBER, TAILLIGHT COVER

80150-K2E-T00

$16.46

GROMMET, SIDE COVER

83551-376-000

$2.97

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

BRACKET, NUMBER PLATE

84701-K2E-T00

$23.25

SCREW, VISOR SPECIAL SETTING

90115-KW7-900

$2.18

BOLT, FLANGE (6MM)

90116-KVB-900

$1.49

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, PAN (6X18)

90130-K26-900

$1.49

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

COLLAR, TAILLIGHT

90501-K0F-T00

$1.49

COLLAR, SEAT MOUNTING

90502-K2E-T00

$1.49

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

PLUG, HOLE

90852-446-630

$2.56

BOLT-WASHER (6X12)

93404-06012-00

$1.55

SCREW, TAPPING (4X12)

93903-24380

$1.49

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
