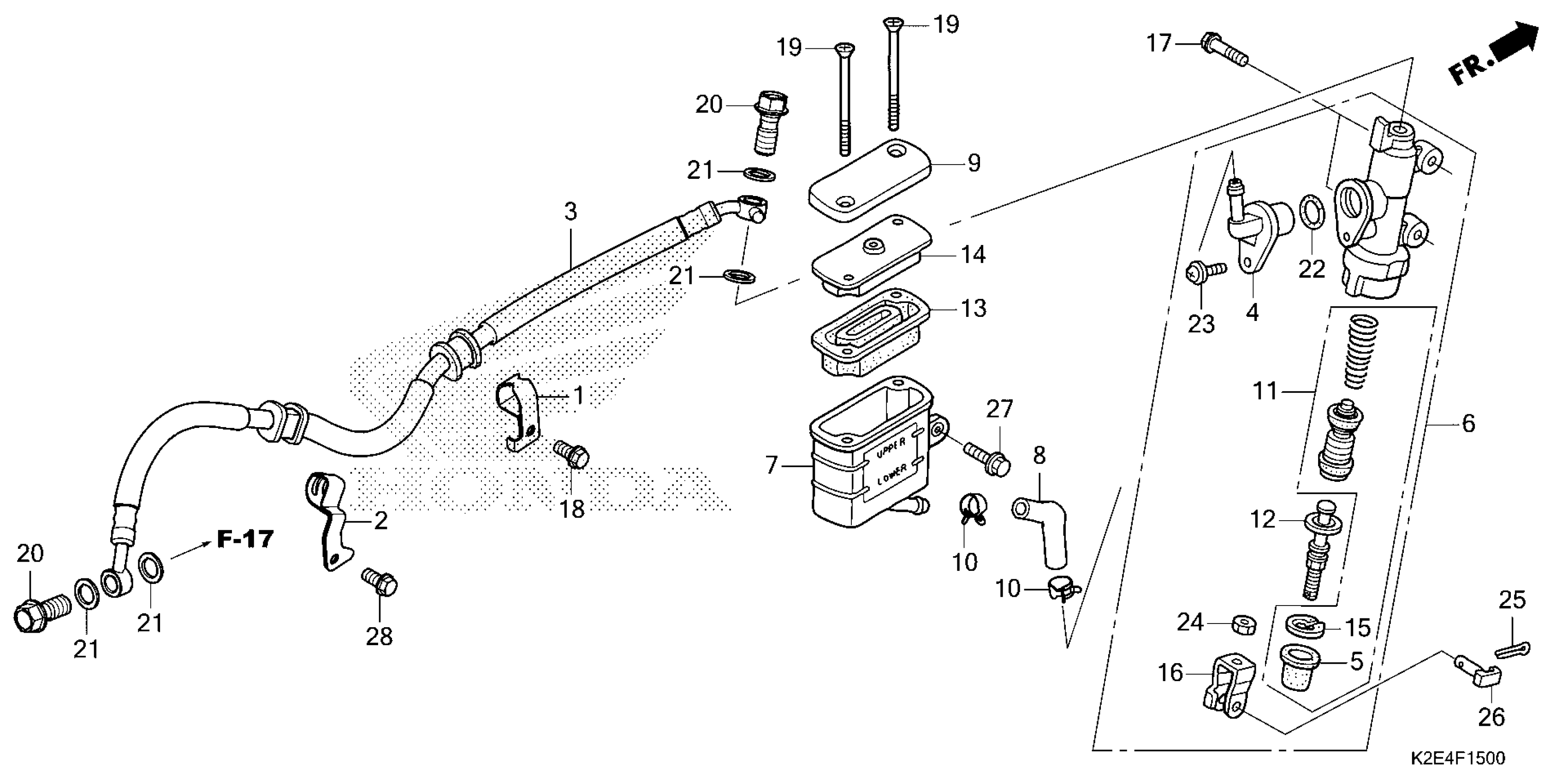

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP A, RR. BRAKE HOSE

43156-K2E-T00

$4.97

2

CLAMP B, RR. BRAKE HOSE

43157-K2E-T00

$5.54

3

HOSE, RR. BRAKE (NICHIRIN)

43310-K2E-T01

$22.74

4

CONNECTOR, MASTER CYLINDER

43503-MR8-006

$7.25

5

BOOT

43504-MB2-006

$10.04

6

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K2E-T01

$112.64

7

CUP, OIL

43511-K43-D31

$22.41

8

HOSE, RR. MASTER CYLINDER

43512-K2E-T01

$11.00

9

CAP, MASTER CYLINDER

43513-KTY-C01

$6.18

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

11

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

12

ROD, PUSH

43530-KV3-831

$22.82

13

DIAPHRAGM

45520-GW0-911

$7.28

14

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

15

CIRCLIP

46182-MEL-D21

$1.93

16

JOINT, BRAKE ROD

46504-KV6-702

$7.84

17

BOLT, FLANGE (6X22) (SH)

90101-K26-B00

$1.49

18

BOLT, FLANGE (6X12)

90103-MCS-G00

$1.49

19

SCREW, FLAT (4X50)

90140-K43-D31

$2.20

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

O-RING (14.8X2.4)

91212-422-006

$2.56

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

PIN, COTTER (2.0X12)

94201-20120

$1.49

26

PIN D, JOINT

95015-54000

$4.24

27

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72
