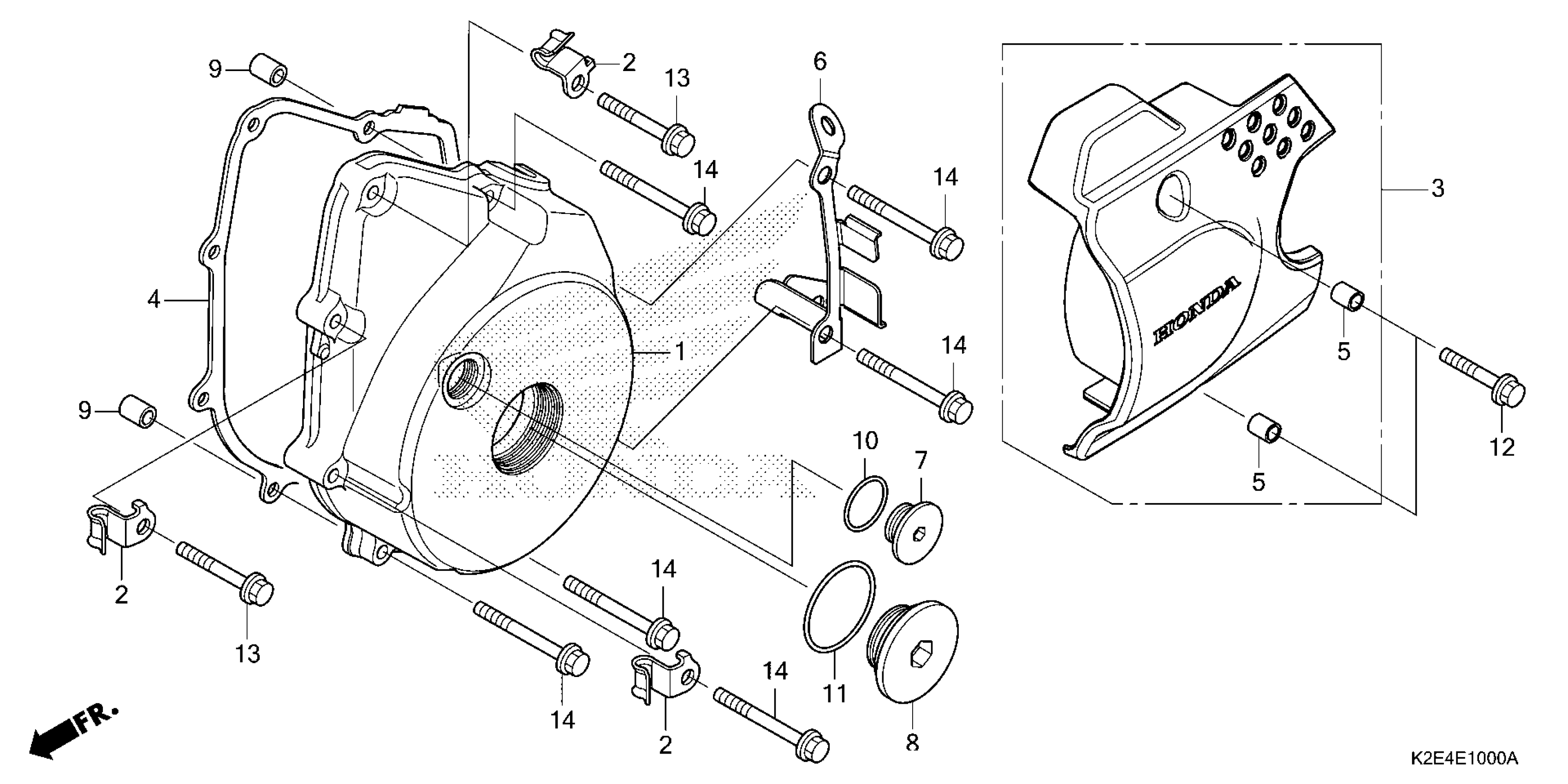

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11341-K0F-T00

$45.68

CLAMP A, OIL TEMP SENSOR CORD

11346-K0F-T00

$1.25

COVER, L. RR.

11360-K2E-T00

$28.97

GASKET, L. CRANKCASE COVER

11395-K73-T60

$1.51

COLLAR (6.4X10)

23813-KPH-720

$4.35

STAY, SIDE STAND SWITCH

35711-K0F-T00

$8.29

CAP (14MM)

90084-K0F-T00

$12.75

CAP (30MM)

90087-K0F-T00

$18.28

PIN, DOWEL (8X12)

90702-KFM-900

Unavailable

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (30MM)

91356-KWV-000

$1.26

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.28
