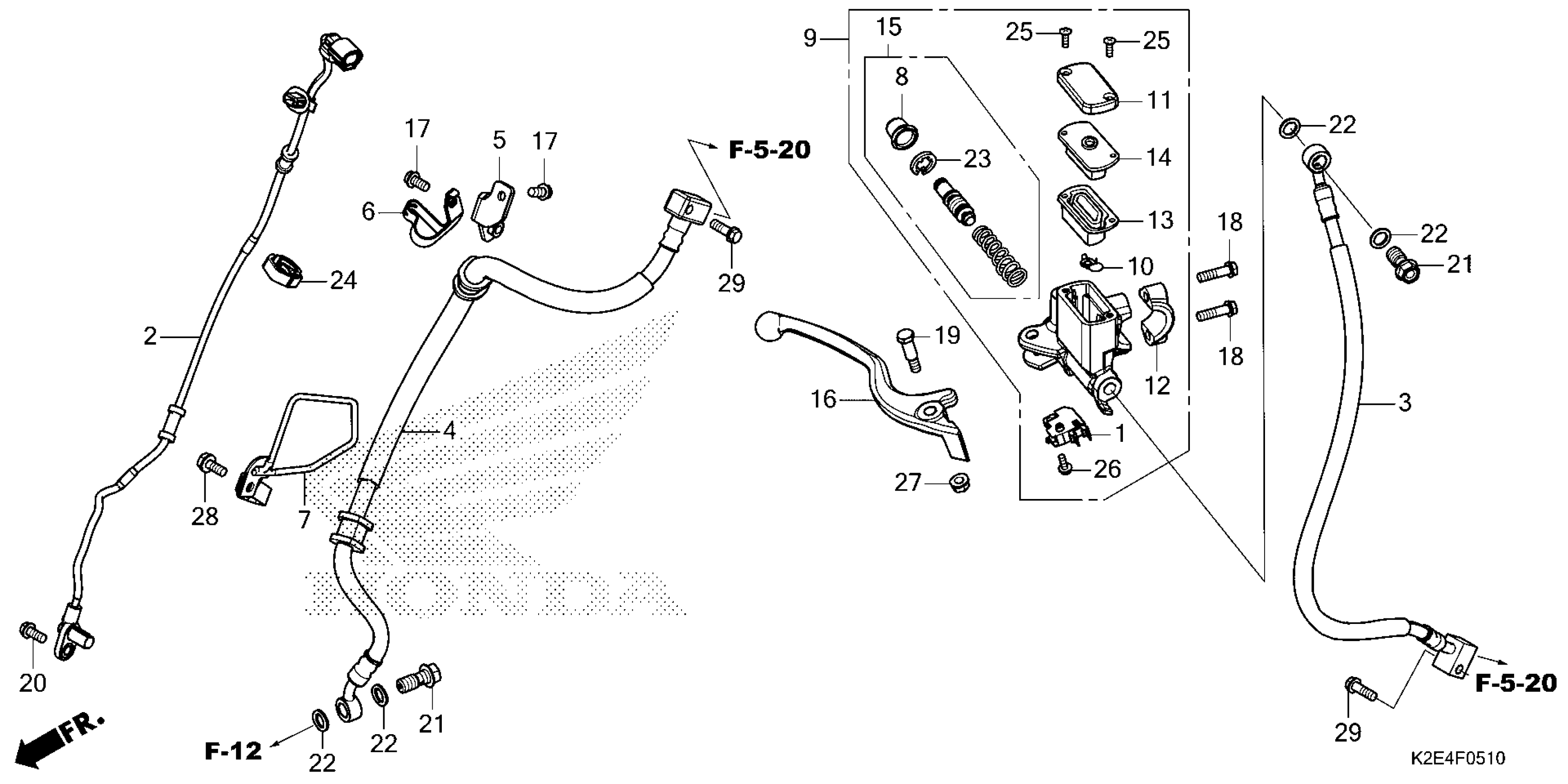

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

SENSOR, FR. WHEEL SPEED

38520-K2E-T01

$36.13

3

HOSE A, FR. BRAKE (NICHIRIN)

45125-K2E-T01

$40.25

4

HOSE B, FR. BRAKE (NICHIRIN)

45128-K2E-T01

$29.37

5

STAY, FR. BRAKE HOSE

45156-K2E-T00

$10.81

6

CLAMP A, FR. BRAKE HOSE

45157-K2E-T00

$5.37

7

CLAMP B, FR. BRAKE HOSE

45158-K2E-T00

$9.76

8

BOOT

45504-410-003

$11.17

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-K0F-A01

$100.84

10

PROTECTOR

45512-MA6-006

$4.09

11

CAP, MASTER CYLINDER

45513-KWN-671

$18.09

12

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

13

DIAPHRAGM

45520-GW0-911

$6.95

14

PLATE, DIAPHRAGM

45521-GW0-911

$5.47

15

MASTER CYLINDER SET

45530-471-831

$36.42

16

LEVER, R. HANDLEBAR

53175-KYT-922

$14.74

17

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

18

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

19

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

20

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.53

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

22

WASHER, OIL BOLT

90545-300-000

$5.79

23

CIRCLIP

90651-MA5-671

$2.38

24

CLAMP, HARNESS

90690-MEF-800

$1.21

25

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

25

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

26

SCREW-WASHER (4X12)

93893-04012-07

$1.32

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

27

NUT, FLANGE (6MM)

94050-06000

$0.60

28

BOLT, FLANGE (6X14)

95701-06014-07

$1.34

29

BOLT, FLANGE (6X18)

96001-06018-07

$1.16
