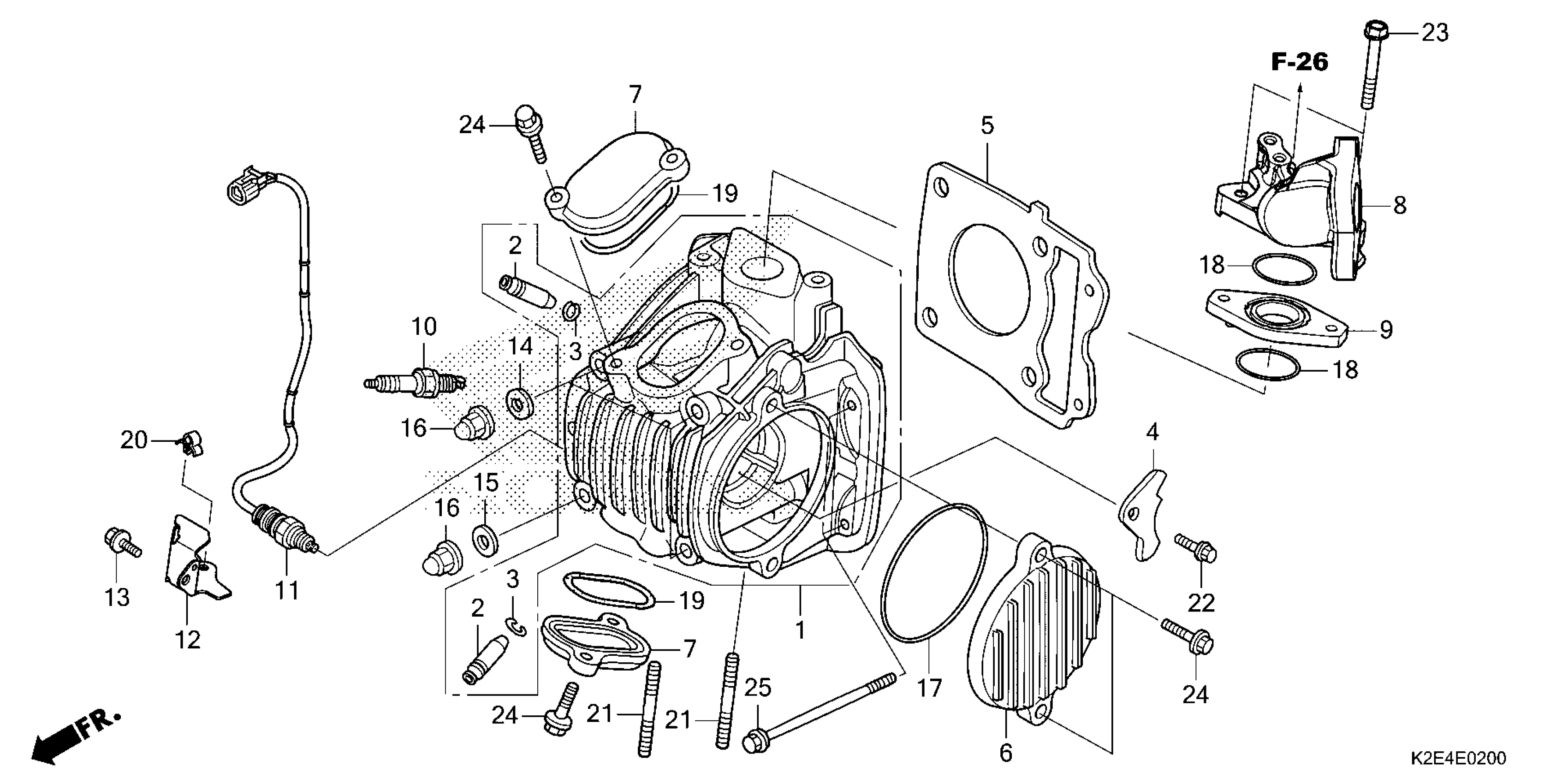

Honda CT125AAC (22) MOTORCYCLE, THA, VIN# MLHJA555-N5100001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-K0F-T00

$105.31

2

GUIDE, VALVE (OVER SIZE)

12204-KYZ-P00

$18.66

3

CLIP, VALVE GUIDE

12206-KPL-900

$3.16

4

PLATE, STOPPER

12211-KPH-900

$0.90

5

GASKET, CYLINDER HEAD

12251-KYZ-901

$4.43

5

GASKET, CYLINDER HEAD

12251-K73-T61

$2.49

6

COVER, L. CYLINDER HEAD SIDE

12341-K2E-T00

$31.96

7

COVER, TAPPET ADJUSTING HOLE

12361-K0F-T00

$23.71

8

PIPE, INLET

17110-K2E-T00

$177.06

9

INSULATOR, IN. PIPE

17119-K0G-900

$6.74

10

SPARK PLUG (CPR6EA-9) (NGK)

31916-KPH-901

$9.36

10

SPARK PLUG (CPR7EA-9) (NGK) | (Optional).

31917-KPH-901

$4.01

10

SPARK PLUG (U20EPR9) (DENSO)

31926-KPH-901

$4.10

10

SPARK PLUG (U22EPR9) (DENSO) | (Optional).

31927-KPH-901

$4.01

11

SENSOR, OXYGEN (NGK)

36532-K2E-T01

$45.21

12

GUARD, OXYGEN SENSOR

36535-K26-B00

$2.66

13

BOLT, FLANGE (6X14) (NSHF) (NOT AVAILABLE)

90017-GHB-620

$1.76

14

WASHER, SEALING (8MM)

90441-286-000

$1.75

15

WASHER, SEALING (8MM)

90441-ME9-000

$2.41

16

NUT, CAP (8MM)

90443-KTM-970

$0.71

17

O-RING (74.5X2.5) (NOK)

91301-PH8-005

$9.44

18

O-RING (29X2.4)

91304-KPH-700

$1.57

19

O-RING, TAPPET ADJUSTING HOLE CAP

91372-KPH-900

Unavailable

20

CLIP, HOOD OPEN WIRE

91504-SL0-003

$5.24

21

BOLT 2, STUD (8X28)

92900-08028-0E

$2.16

22

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

23

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

24

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

25

BOLT, FLANGE (6X90)

96001-06090-00

$1.81
