Description

Price

1

MAINSHAFT (14T)

23211-KPH-900

$22.99

2

COUNTERSHAFT

23221-KPH-900

$21.54

3

BUSH (15MM)

23415-KPH-900

$4.72

4

GEAR, COUNTERSHAFT FIRST (35T)

23421-KPH-900

$15.41

5

GEAR, MAINSHAFT SECOND (20T)

23431-KPH-700

$19.48

6

GEAR, COUNTERSHAFT SECOND (31T)

23441-KPH-900

$10.42

7

GEAR, MAINSHAFT THIRD (20T)

23451-KPH-700

$20.62

8

GEAR, COUNTERSHAFT THIRD (23T)

23461-KPH-900

$19.20

9

GEAR, MAINSHAFT FOURTH (26T)

23471-KPH-700

$15.09

10

GEAR, COUNTERSHAFT FOURTH (24T)

23481-KPH-700

$23.43

11

SPROCKET, DRIVE (14T)

23801-K2E-T00

$11.79

12

PLATE, FIXING

23802-GN5-910

$4.58

13

COLLAR, LOCK PLATE

23911-KPH-900

$0.70

14

WASHER, THRUST (15MM)

90412-187-000

$1.96

15

WASHER, SPECIAL (12X23)

90412-KPH-900

$0.64

16

PLATE, BEARING HOLDER

90441-KRM-840

$0.55

17

WASHER, THRUST (20MM)

90452-413-000

$2.42

18

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.41

18

WASHER

90452-KPH-C00

$2.41

19

WASHER, SPLINE (17MM)

90461-115-000

$2.42

20

WASHER, SPLINE (20X1.2)

90461-GB4-770

$3.09

21

CIRCLIP (OUTER) (17MM)

90601-001-000

Unavailable

22

SET-RING (20MM)

90605-200-000

$2.67

23

OIL SEAL (17X30X5) (NOK)

91204-KPH-902

$1.14

24

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

26

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14

27

BEARING, RADIAL BALL (6201)

96100-62010-00

$7.52

28

BEARING, RADIAL BALL (6203)

96100-62030-00

$7.82

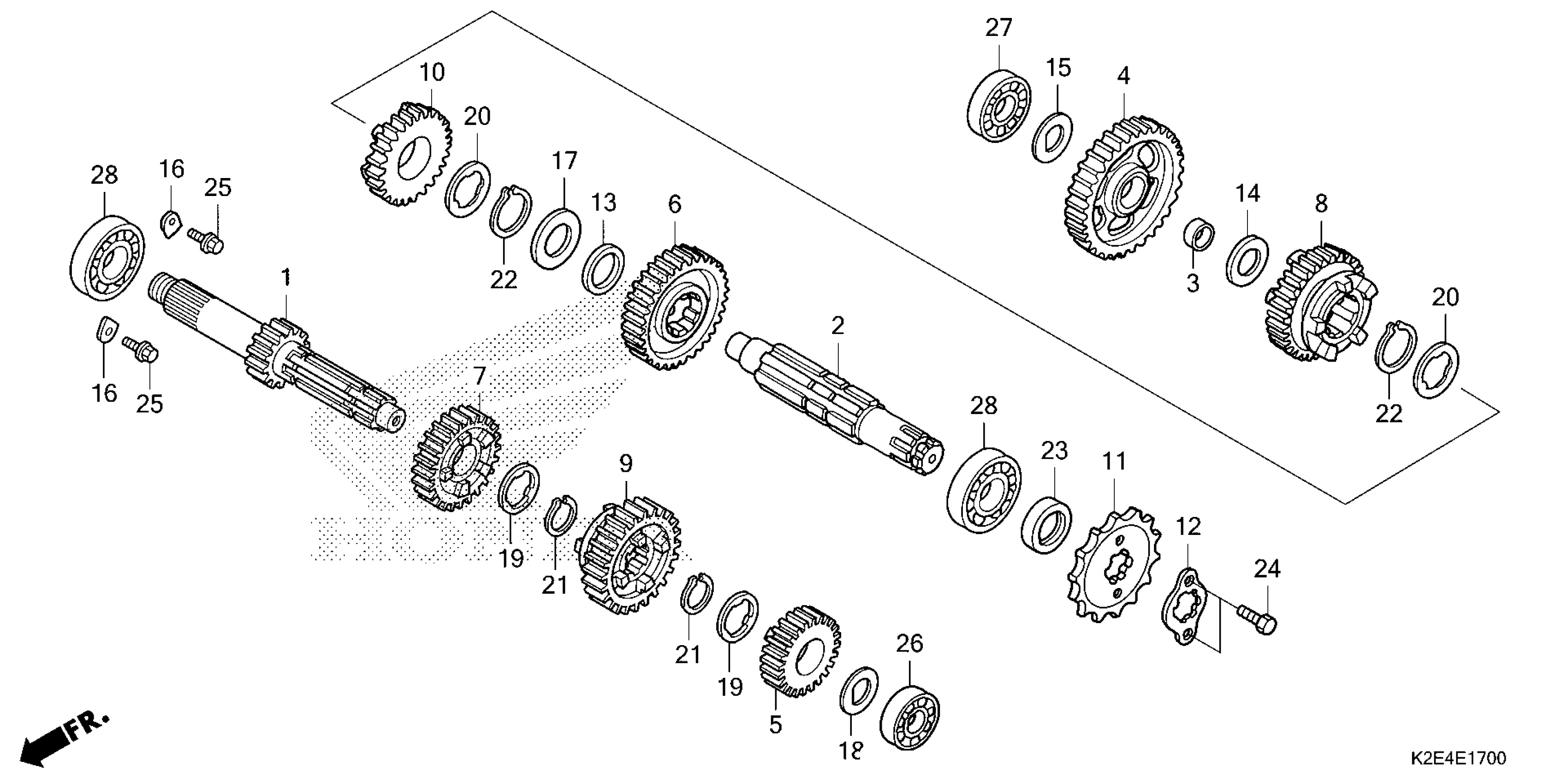

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 TRANSMISSION Diagram
