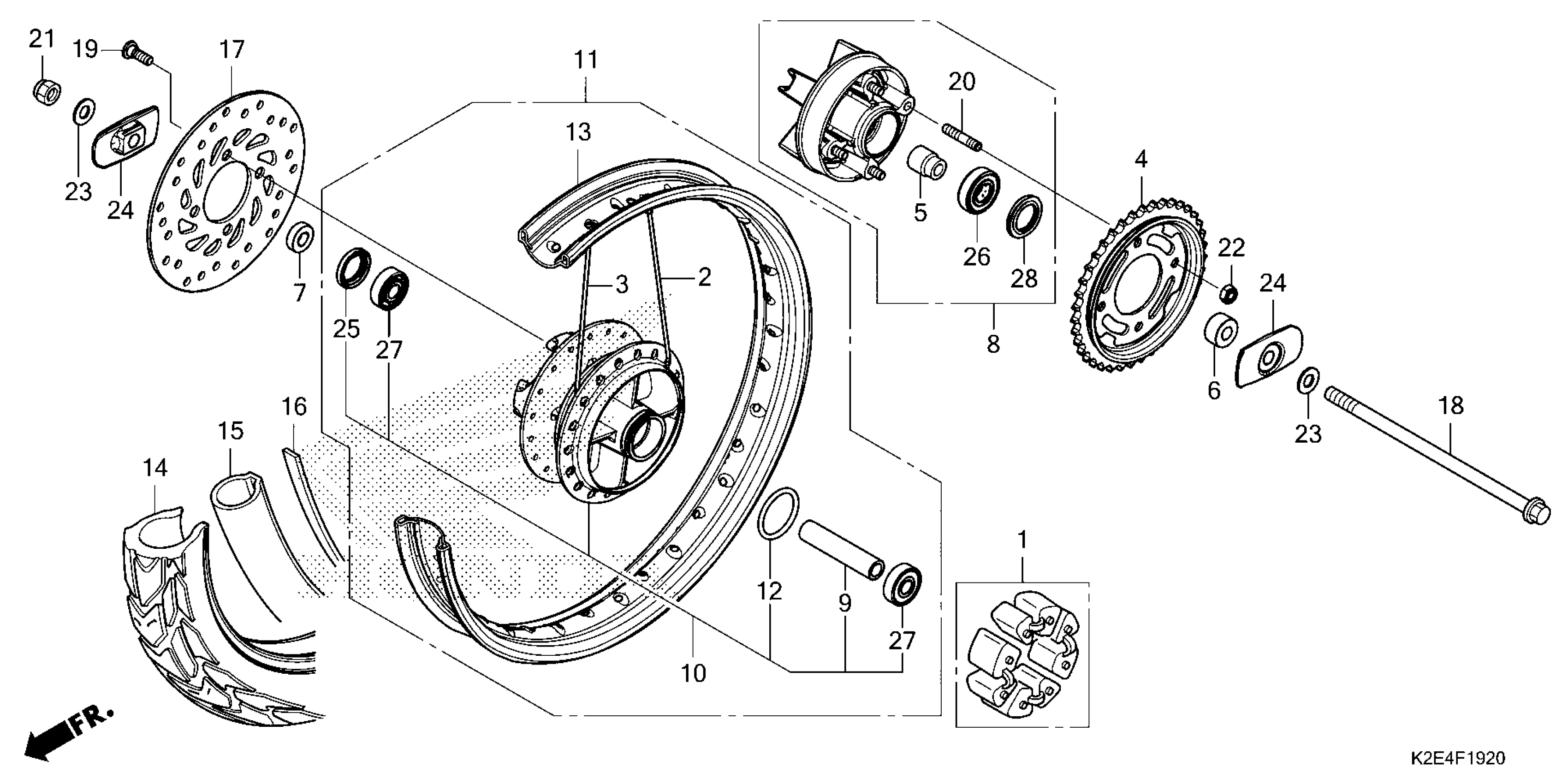

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-GCR-000

$29.05

2

SPOKE SET (B9X161.5) (OUTSIDE)

06420-K2E-T00

$3.19

3

SPOKE SET (B9X161.5) (INSIDE)

06421-K2E-T00

$3.19

4

SPROCKET, FINAL DRIVEN (39T)

41200-K2E-T00

$37.23

5

SLEEVE, RR. WHEEL (NOT AVAILABLE)

42303-KBA-900

$15.64

6

COLLAR, RR. WHEEL SIDE

42304-K2E-T00

$7.69

7

COLLAR, R. RR. WHEEL SIDE

42313-KTM-750

$4.51

8

FLANGE SUB-ASSY., FINAL DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)

42615-K2E-T00ZA

$119.26

9

COLLAR, RR. AXLE DISTANCE

42620-KW7-880

$14.03

10

HUB SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42635-K2E-T00ZA

$121.59

11

WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-K2E-T01ZA

$285.08

12

O-RING (40.5X3) (NIPPON DUST KEEPER)

42653-001-004

$2.39

13

RIM, RR. WHEEL (17X1.60)

42701-K2E-T01

$82.03

14

TIRE, RR. (80/90-17 M/C 50P) (IRC)

42711-K2E-T01

$44.03

15

TUBE, TIRE This part replaces 42712-K2E-T01.

42712-K2E-T02

$23.54

15

TUBE, TIRE

42712-K2E-T02

$23.54

16

FLAP, TIRE (17) (INOUE) FLAP, TIRE (17) (NITTO)

42713-102-005

$6.54

17

DISK, RR. BRAKE (YUTAKA) (NOT AVAILABLE)

43351-KTM-N31

Unavailable

17

DISK, RR. BRAKE (SUNSTAR)

43351-KTM-N32

$99.31

18

AXLE, FR. WHEEL (FOR RR.)

44301-K01-900

$11.75

19

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.97

20

BOLT, STUD (8X19.5) (NOT AVAILABLE)

90128-KFM-900

$1.49

21

NUT, U (12MM)

90306-K0G-901

$3.19

22

NUT, U (8MM) (FUJI SEIMITSU)

90309-KPH-971

$1.69

23

WASHER, RR. AXLE

90501-K0G-900

$1.61

24

PLATE, SWINGARM SIDE

90559-K0G-900

$12.44

25

OIL SEAL (26X37X6) (ARAI)

90753-051-003

$7.66

25

OIL SEAL (26X37X6) This part replaces 90753-051-005.

90753-051-003

$7.66

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$19.23

26

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V04.

91051-K35-V03

$19.23

27

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-H01.

91053-K03-H02

$6.45

27

BEARING, RADIAL BALL (6301U L) (FAG)

91053-K03-H02

$6.45

27

BEARING, RADIAL BALL (6301U L) (FAG) This part replaces 91053-K03-N41.

91053-K03-H02

$6.45

27

BEARING, RADIAL BALL (6301U L) (NSK) This part replaces 91055-KVS-F01.

91055-KVS-F02

$9.00

27

BEARING, RADIAL BALL (6301U L) (NSK)

91055-KVS-F02

$9.00

28

DUST SEAL (27X40X4.5) (NOK)

91251-KGH-902

$1.49
