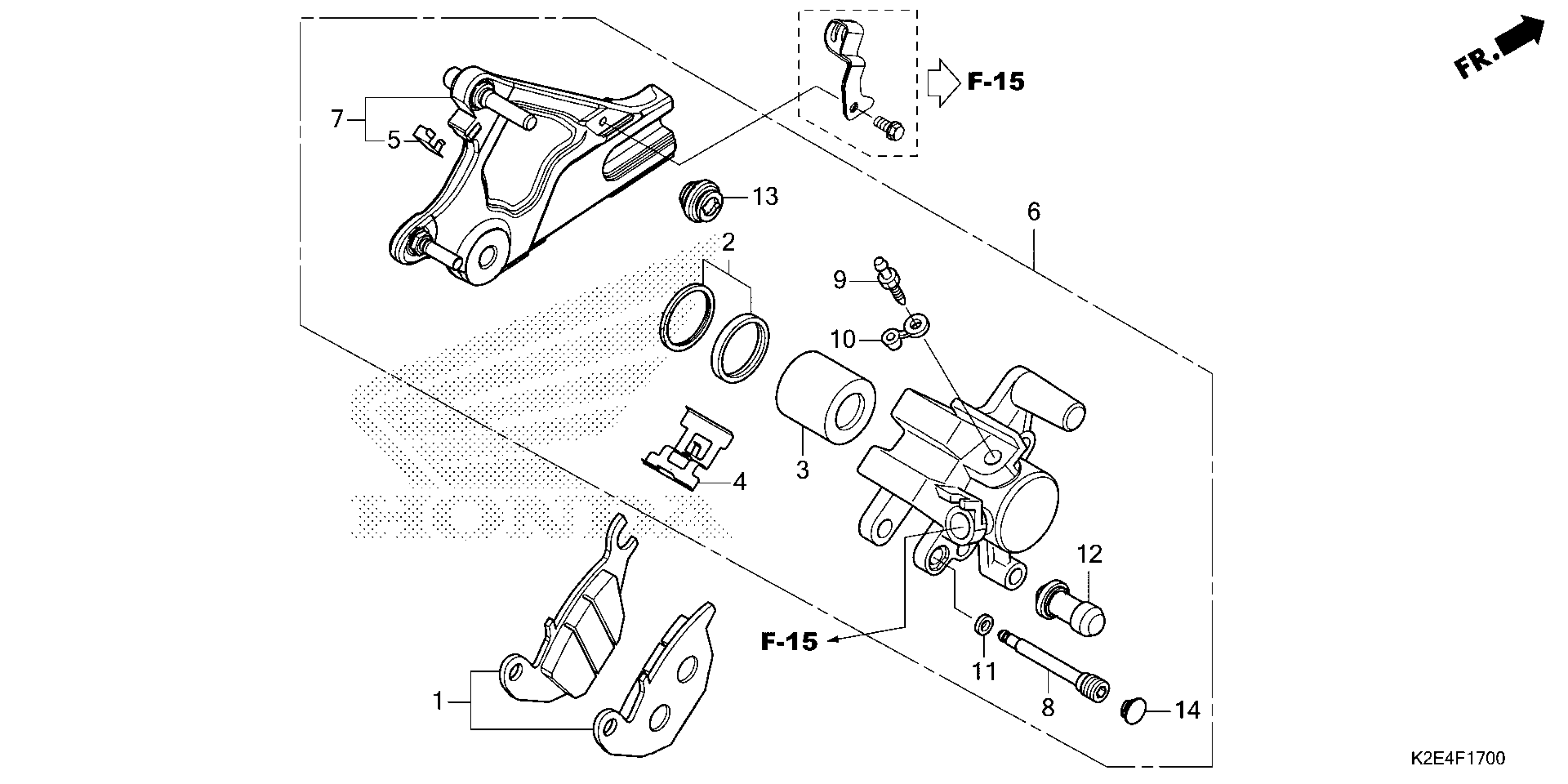

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 REAR BRAKE CALIPER Diagram

PAD SET, RR.

06435-KPP-902

$23.58

SEAL SET, PISTON

06451-MA7-405

$9.77

PISTON (32MM) (LEFT SIDE)

43107-MA7-006

$41.82

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.34

RETAINER

43112-KTM-751

$8.93

CALIPER SUB-ASSY., RR. (NISSIN)

43150-K2E-T01

$148.34

BRACKET SUB-ASSY., RR.

43190-K2E-T01

$89.35

PIN, HANGER

43215-KGH-901

$2.65

SCREW, BLEEDER (NISSIN) This part replaces 43352-K81-N01.

43352-568-003

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PLUG, PIN

45203-MCC-006

$2.66
