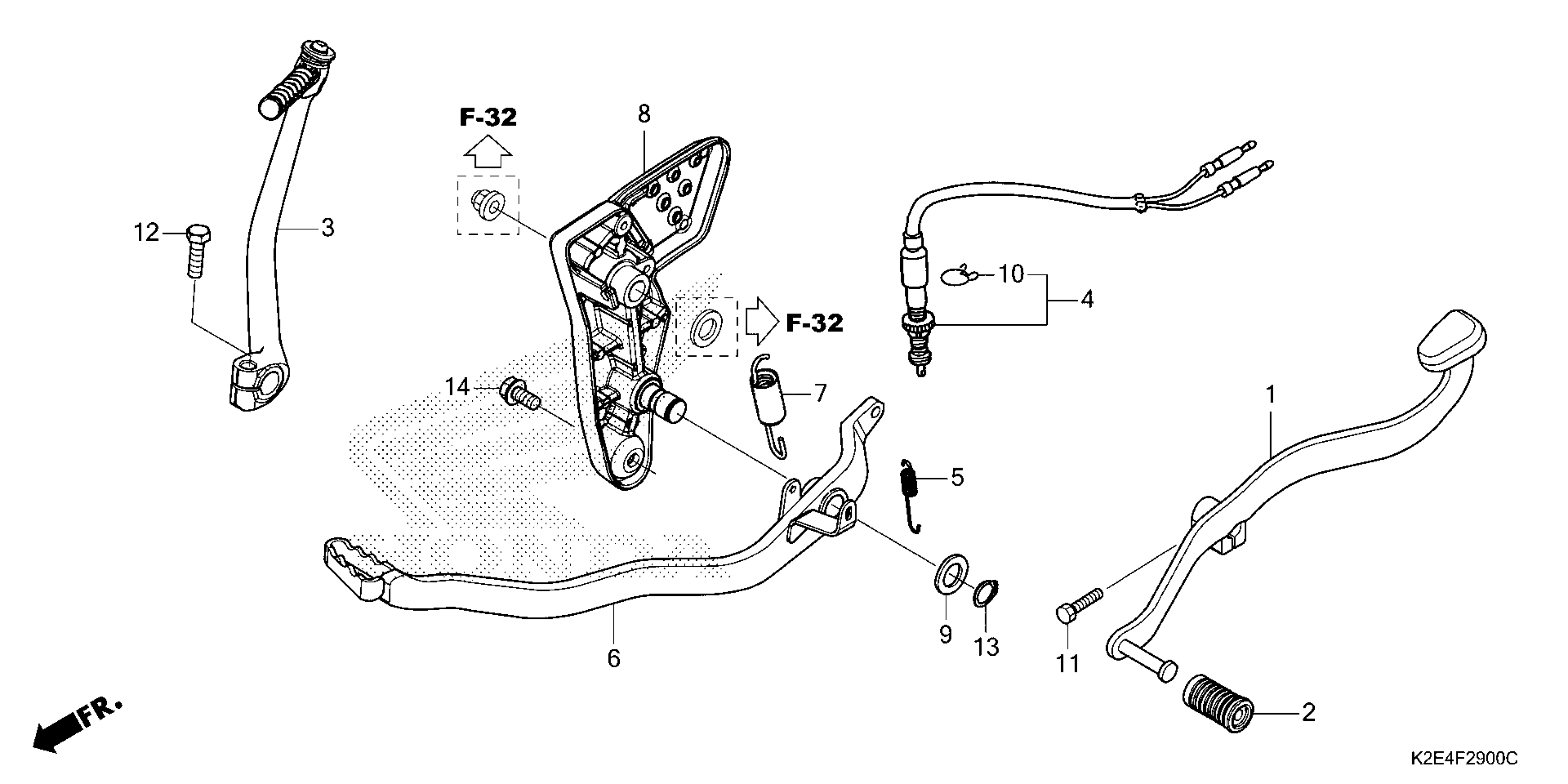

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 PEDAL@KICK STARTER ARM Diagram

PEDAL COMP This part replaces 24701-K2E-T00.

24701-K2E-T01

$37.59

PEDAL COMP

24701-K2E-T01

$37.59

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

ARM ASSY., KICK STARTER

28300-K2E-T00

$43.98

SWITCH ASSY., RR. STOP

35350-KWW-642

$14.31

SPRING, STOP SWITCH

35357-KBA-900

$1.49

PEDAL, BRAKE

46500-K2E-T00

$36.07

SPRING ASSY., BRAKE PEDAL

46513-KPP-900

$2.15

COVER, R. PIVOT

50650-K2E-T00

$80.98

WASHER (15.2X25)

90557-230-000

$2.39

CLIP, SWITCH COVER

90601-KAF-003

$2.67

BOLT, HEX. (6X20) BOLT, FLANGE (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

SET,GEAR CHNGE PEDAL

06710-K2E-305

$35.57
