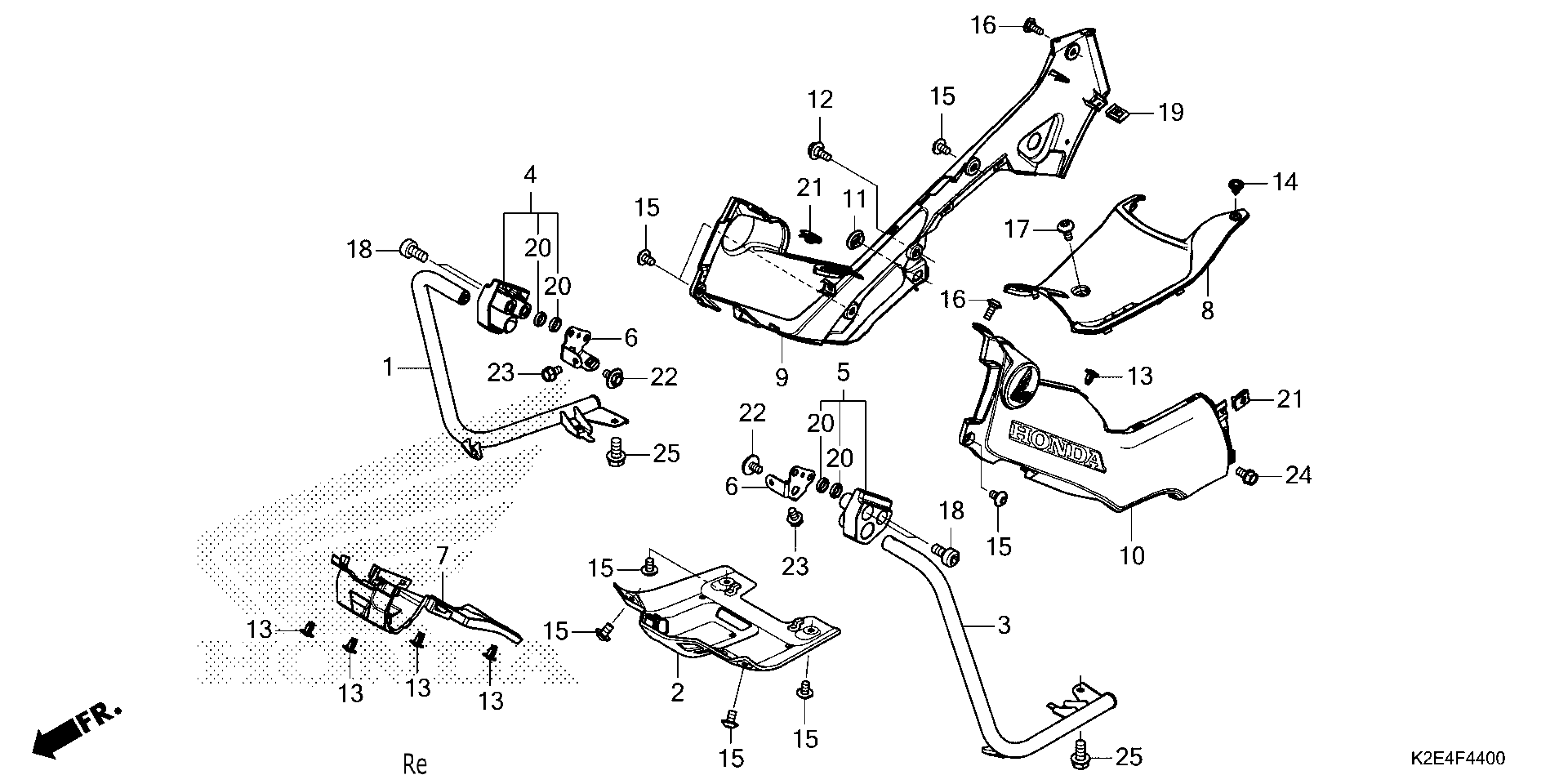

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 MAIN PIPE COVER Diagram

#

Description
Price

1

PIPE, R. COVER (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

64100-K2E-T00ZA

$41.57

2

COVER (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

64150-K2E-T00ZA

$66.32

3

PIPE, L. COVER (LOWER) *NHA40M* (MAT KRYPTON SILVER METALLIC)

64200-K2E-T00ZA

$41.55

4

COVER, R. FR. STAY

64211-K2E-T00

$4.48

5

COVER, L. FR. STAY

64212-K2E-T00

$4.45

6

PLATE, FR.

64213-K2E-T00

$5.29

7

COVER, MAIN PIPE (LOWER)

64310-K2E-T00

$14.83

8

LID, BATTERY *R354* (GLOWING RED) | Use up to Frame SN M5003158.

64460-K2E-T00ZB

$38.13

8

LID, BATTERY *R354* (GLOWING RED) | Use from Frame SN M5003159.

64460-K2E-T01ZB

$38.13

9

COVER SET, R. MAIN PIPE SIDE (TYPE1) (WL)

81130-K2E-T00ZC

$150.74

10

COVER SET, L. MAIN PIPE SIDE (TYPE1) (WL)

81140-K2E-T00ZC

$113.62

11

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

12

BOLT, FLANGE (6MM)

90111-187-000

$5.21

13

RIVET, PUSH (6MM)

90116-K0A-E11

$1.17

14

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

15

SCREW, PAN (6X10)

90132-KPP-T00

$0.78

16

SCREW, PAN (5X14)

90132-MJE-D40

Unavailable

17

SCREW, PAN (6X14)

90133-KPP-T00

Unavailable

18

BOLT, SOCKET (8X16)

90135-KWB-600

$1.16

19

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

20

COLLAR (9MM)

90501-K2E-T00

$2.41

21

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

22

BOLT-WASHER (6X12)

93404-06012-00

$1.48

23

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.14

24

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

25

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
