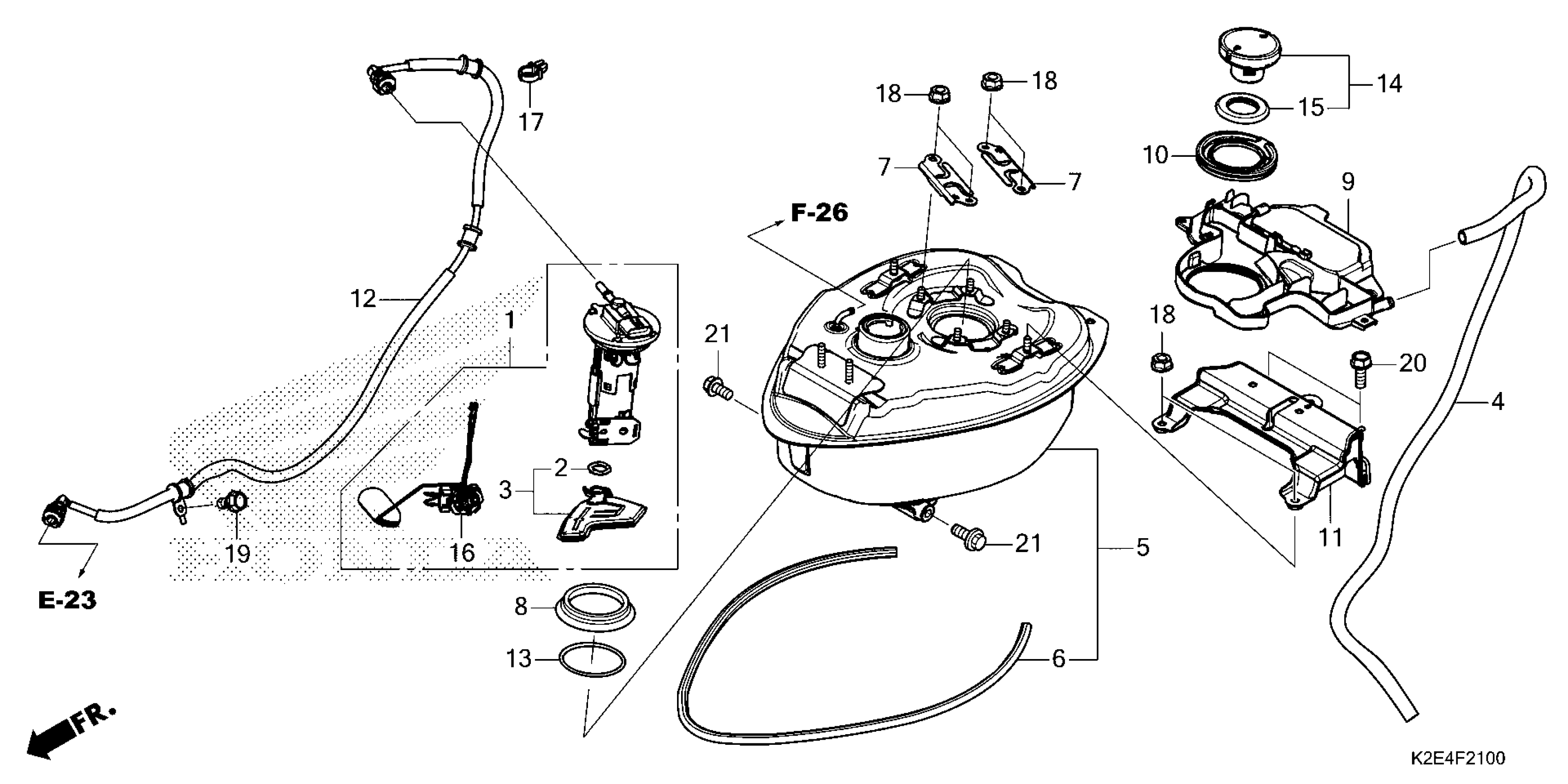

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT ASSY., FUEL (MITSUBA) (MSDS)

16700-K2E-T01

$124.35

O-RING (P7)

16706-KVB-S51

$1.01

FILTER SET

16707-KZV-T01

$9.30

TUBE, FUEL DRAIN

17417-K2E-T00

$11.26

TANK ASSY., FUEL *R354* (GLOWING RED)

17500-K2E-T00ZB

$393.52

RUBBER, FUEL TANK

17511-K2E-T00

$3.86

RETAINER, FUEL PUMP

17517-GGL-J00

$6.65

DUST SEAL (OHTUKA POLY-TECH)

17518-GHB-601

$7.50

TRAY, FUEL

17525-K2E-T00

$18.67

RUBBER, FUEL SEAL

17527-KZR-600

$2.38

PLATE, SEAT MOUNTING

17535-K2E-T00

$44.00

HOSE, FUEL FEED (SUMITOMO RIKO)

17570-K2E-T01

$30.23

O-RING, FUEL PUMP (ARAI)

17572-GHB-601

$8.37

CAP, FUEL FILLER

17620-K01-902

$23.62

GASKET, FUEL FILLER CAP

17632-383-832

Unavailable

FUEL UNIT (NIPPON SEIKI)

37800-K2E-T01

$38.43

CLIP, WIRE HARNESS

90682-735-A01

$2.04

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

BOLT, FLANGE (8X20)

95701-08020-08

$1.43
