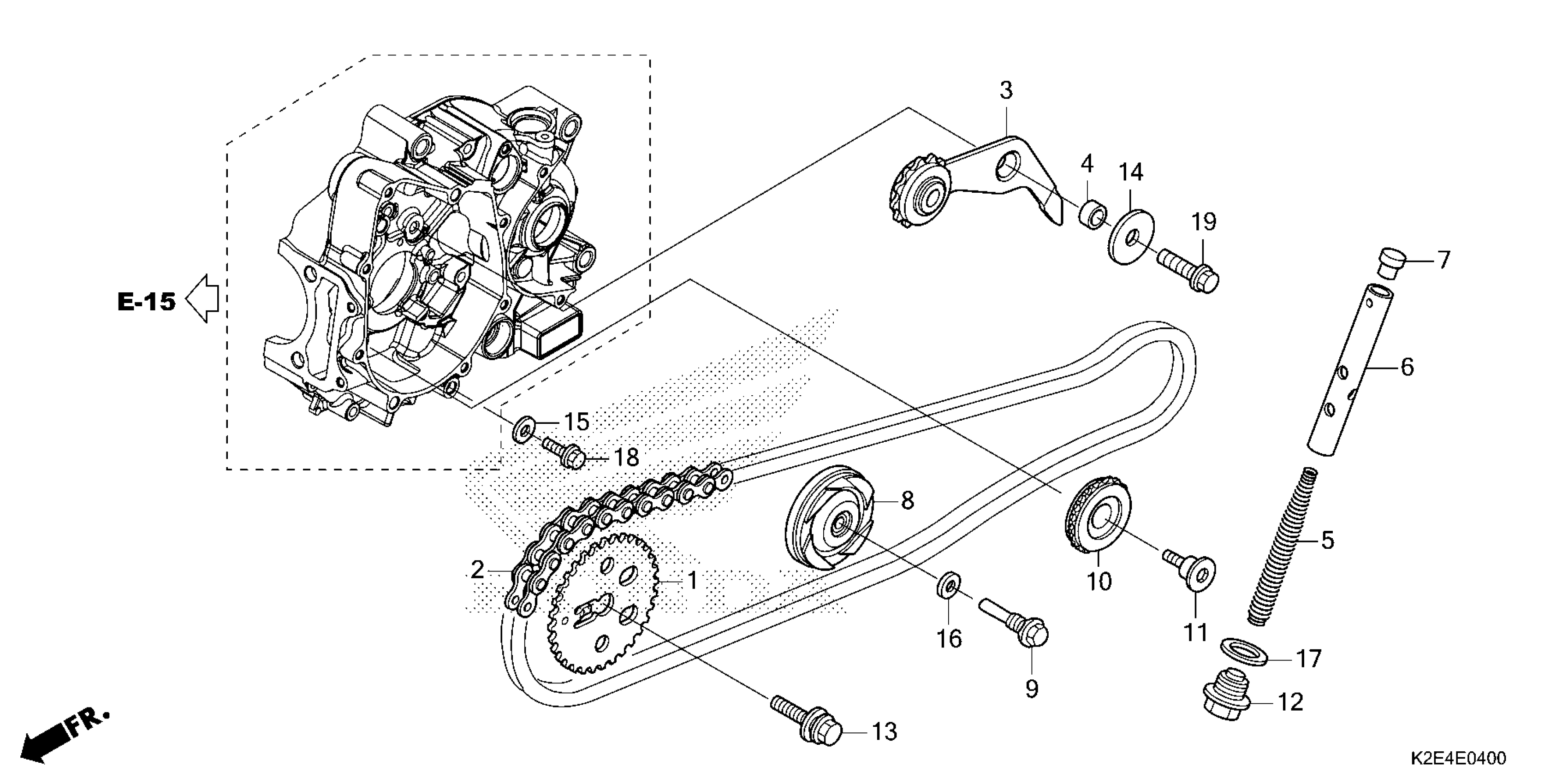

Honda CT125AAC (21) MOTORCYCLE, THA, VIN# MLHJA555-M5000001 TO MLHJA555-M5099999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (32T)

14321-KYZ-900

$22.81

CHAIN, CAM (DID25SHT-88LE)

14401-K73-T31

$11.42

ARM, CAM CHAIN TENSIONER

14500-KYZ-900

$27.13

COLLAR, CAM CHAIN TENSIONER

14531-KYZ-900

$1.49

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, TENSIONER PUSH (CENTRALIZE POWER)

14550-KRS-691

$4.37

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

ROLLER, CAM CHAIN GUIDE This part replaces 14610-KWB-600.

14610-KYY-901

$19.41

ROLLER, CAM CHAIN GUIDE

14610-KYY-901

$19.41

PIN, GUIDE ROLLER

14615-KFL-850

$1.49

ROLLER, CAM CHAIN GUIDE

14670-KYZ-900

$13.88

BOLT, CAM CHAIN GUIDE ROLLER

14675-KYZ-900

$2.69

BOLT, SEALING (14MM)

90081-035-000

$4.24

BOLT-WASHER (8X22)

90082-KWW-740

$2.48

WASHER (8.5X26X2.3)

90404-KWB-600

$1.49

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

WASHER (8MM)

90475-KWB-600

$1.49

WASHER, SEALING (14MM)

90544-KF0-000

$3.26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
