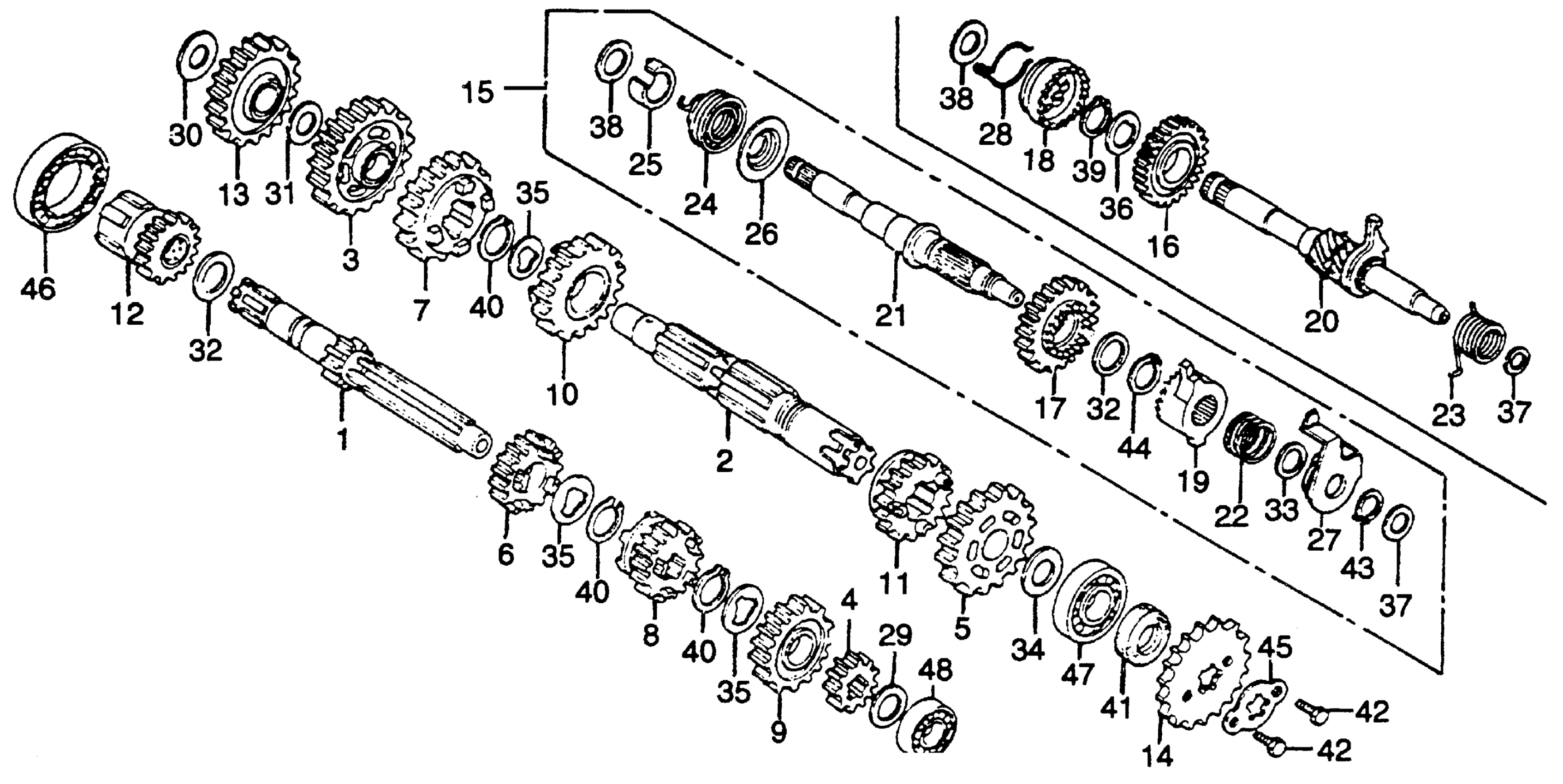

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 TRANSMISSION + KICK STARTER SPINDLE Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-383-000.

23211-383-003

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-107-010.

23221-107-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-107-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (36T) (NOT AVAILABLE)

23421-383-000

Unavailable

4

GEAR, MAINSHAFT SECOND (16T) (NOT AVAILABLE)

23441-355-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (34T) (NOT AVAILABLE)

23451-355-000

Unavailable

6

GEAR, MAINSHAFT THIRD (20T) This part replaces 23461-383-000.

23461-439-000

$79.98

6

GEAR, MAINSHAFT THIRD (20T)

23461-439-000

$79.98

7

GEAR, COUNTERSHAFT THIRD (29T)

23471-383-000

Unavailable

8

GEAR, MAINSHAFT TOP (29T)

23501-355-010

Unavailable

9

GEAR, MAINSHAFT FOURTH (25T)

23481-427-000

$70.13

9

GEAR, MAINSHAFT FOURTH (25T) This part replaces 23501-383-000.

23481-427-000

$70.13

10

GEAR, COUNTERSHAFT TOP (21T) (NOT AVAILABLE)

23511-355-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (25T) (NOT AVAILABLE)

23511-383-000

Unavailable

12

GEAR, STARTER (19T)

23520-383-000

Unavailable

13

GEAR, IDLE STARTER (29T) (NOT AVAILABLE)

23530-383-000

Unavailable

14

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

14

SPROCKET, DRIVE (14T) | (Optional). This part replaces 23801-KF9-900.

23801-KF9-505

$38.11

14

SPROCKET, DRIVE (14T) | (Optional). This part replaces 23801-107-760.

23801-KF9-505

$38.11

14

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

15

STARTER ASSY., KICK (NOT AVAILABLE) | (Optional). Use from Engine SN 1010356 to 1011327 This part replaces 28200-397-315.

28200-397-325

Unavailable

15

STARTER ASSY., KICK (NOT AVAILABLE) | (Optional). Use from Engine SN 1010356 to 1021227

28200-397-325

Unavailable

16

PINION, KICK STARTER (29T) | Use up to Engine SN 1010355

28211-383-000

Unavailable

17

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1021227 This part replaces 28211-397-000.

28220-397-305

Unavailable

17

PINION, KICK STARTER (29T) | Use from Engine SN 1021228

28211-397-010

Unavailable

17

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1021227

28220-397-305

Unavailable

18

RATCHET, KICK STARTER DRIVE | Use up to Engine SN 1010355

28221-107-010

Unavailable

19

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1021227 This part replaces 28211-397-000.

28220-397-305

Unavailable

19

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1021227

28220-397-305

Unavailable

19

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1011327 This part replaces 28221-397-000.

28220-397-305

Unavailable

19

PINION, KICK STARTER (29T) (NOT AVAILABLE) | Use from Engine SN 1010356 to 1021227 This part replaces 28221-397-010.

28220-397-305

Unavailable

19

RATCHET, KICK STARTER | Use from Engine SN 1021228

28221-397-020

Unavailable

20

SPINDLE, KICK STARTER (NOT AVAILABLE) | Use up to Engine SN 1010355

28250-365-000

Unavailable

21

SPINDLE, KICK STARTER | Use from Engine SN 1010356 to 1020557 This part replaces 28251-397-000.

28251-397-010

Unavailable

21

SPINDLE, KICK STARTER | Use from Engine SN 1010356 to 1020557

28251-397-010

Unavailable

21

SPINDLE, KICK STARTER | Use from Engine SN 1010356

28251-397-010

Unavailable

22

SPRING, KICK STARTER RATCHET | Use from Engine SN 1010356

28253-397-000

Unavailable

23

SPRING, KICK STARTER | Use up to Engine SN 1010355

28261-107-000

Unavailable

24

SPRING, KICK STARTER | Use from Engine SN 1010356

28261-397-000

Unavailable

25

COLLAR, KICK SPINDLE | Use from Engine SN 1010356

28262-397-000

Unavailable

26

RETAINER, STARTER SPRING | Use from Engine SN 1010356

28263-397-000

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356 to 1019167 This part replaces 28270-397-000.

28270-397-020

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356 to 1019167 This part replaces 28270-397-010.

28270-397-020

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356 to 1020067 This part replaces 28270-397-010.

28270-397-020

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356 to 1019167

28270-397-020

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356 to 1020067

28270-397-020

Unavailable

27

PLATE, RATCHET GUIDE | Use from Engine SN 1010356

28270-397-020

Unavailable

28

SPRING, STARTER PINION FRICTION (NOT AVAILABLE) | Use up to Engine SN 1010355

28271-107-000

Unavailable

29

WASHER, THRUST (15MM)

90451-107-000

$1.49

30

WASHER, THRUST (15MM)

90451-365-000

$3.08

31

WASHER, THRUST (16.5MM)

90452-107-000

Unavailable

32

WASHER A, THRUST (20MM) | Use up to Engine SN 1010355

90453-107-000

$2.25

32

WASHER A, THRUST (20MM) | Use from Engine SN 1010356

90453-107-000

$2.25

33

WASHER, THRUST (16MM) | Use from Engine SN 1010356

90453-235-000

$1.83

34

WASHER, THRUST (20MM)

90454-107-000

$1.80

35

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

36

WASHER, THRUST (25MM) (NOT AVAILABLE) | Use up to Engine SN 1010355

90458-107-000

Unavailable

37

WASHER, THRUST (12MM)

90459-107-000

$1.49

38

WASHER, THRUST (16MM)

90462-107-000

$2.11

39

CIRCLIP (25MM) | Use up to Engine SN 1010355

90601-107-000

$3.74

40

SET-RING (20MM)

90605-200-000

$2.92

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-000.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-003.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-005.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-013.

91201-030-033

$5.54

41

OIL SEAL (20X34X7)

91201-030-015

Unavailable

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

41

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

42

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

42

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

42

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

43

CIRCLIP (OUTER) (16MM) | Use from Engine SN 1010356

94510-16000

$1.49

44

CIRCLIP (OUTER) (20MM) | Use from Engine SN 1010356

94510-20000

$1.49

45

PLATE B, FIXING

95014-92100

$1.49

46

BEARING, RADIAL BALL (6006) This part replaces 96100-60060.

96100-60060-00

$13.13

46

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

47

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

47

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

48

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.) This part replaces 96120-62020.

96120-62020-10

Unavailable

48

BEARING, RADIAL BALL (6202Z) (SOURCE: VINTAGE PARTS INC.)

96120-62020-10

Unavailable
