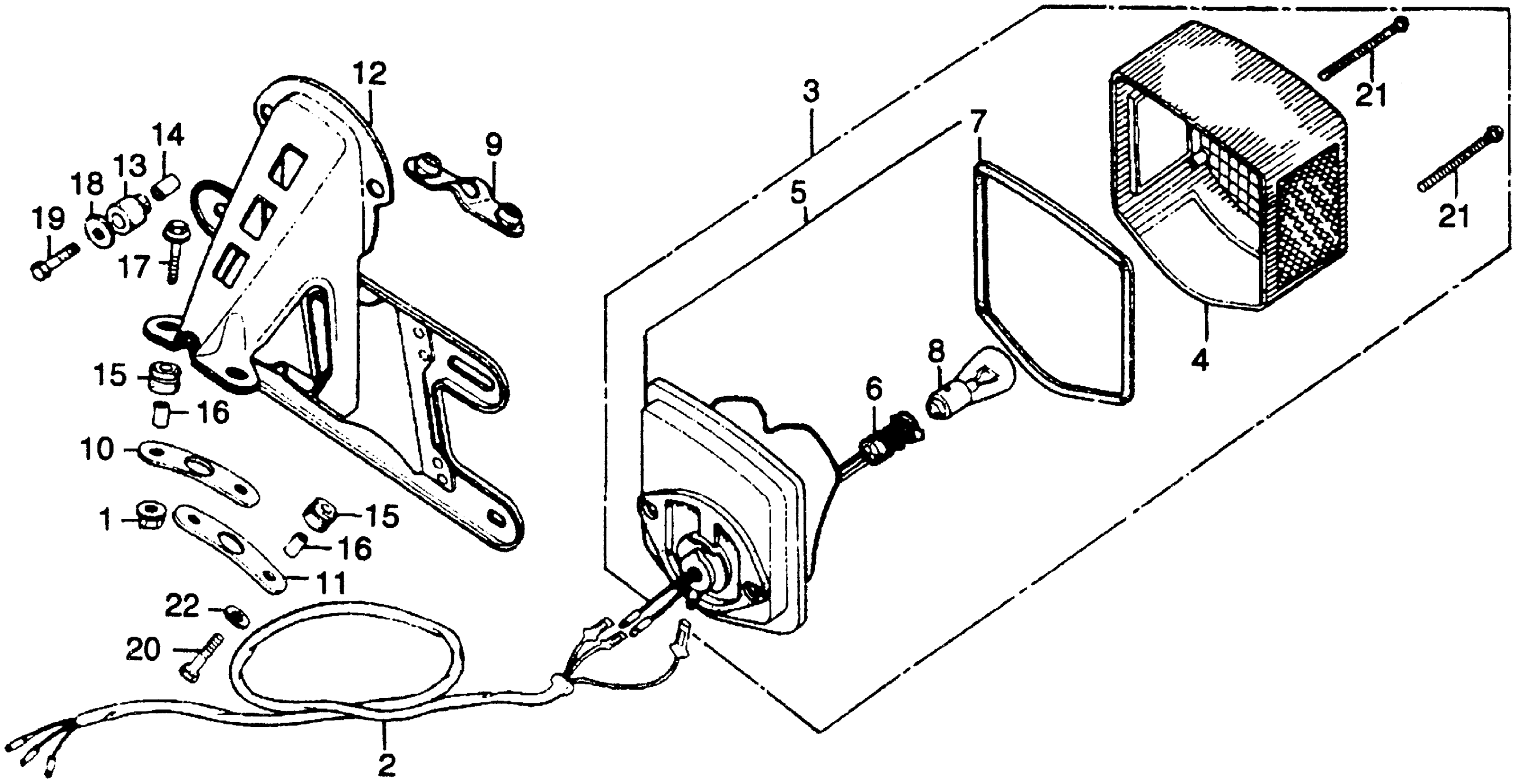

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 TAILLIGHT Diagram

#

Description
Price

1

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

CABLE, TAILLIGHT SUB (NOT AVAILABLE)

32111-365-670

Unavailable

3

TAILLIGHT UNIT (NOT AVAILABLE)

33701-329-671

Unavailable

4

LENS, TAILLIGHT

33702-329-671

Unavailable

5

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

6

WIRE, TAILLIGHT

33708-098-000

Unavailable

6

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

7

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

8

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

9

PLATE A, NUMBER BRACKET SETTING (NOT AVAILABLE)

80109-340-000

Unavailable

10

PLATE A, BRACKET SETTING (NOT AVAILABLE)

80109-382-670

Unavailable

11

PLATE B, NUMBER BRACKET MOUNT (NOT AVAILABLE)

80110-312-000

Unavailable

12

BRACKET, LICENSE PLATE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE) This part replaces 84701-128-670CT.

84701-128-670SG

Unavailable

12

BRACKET, LICENSE PLATE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

84701-128-670SG

Unavailable

13

GASKET B, TAILLIGHT BASE (NOT AVAILABLE) | Use from Frame SN 1015356

33719-388-000

Unavailable

13

RUBBER, NUMBER BRACKET CUSHION (NOT AVAILABLE) | Use up to Frame SN 1015355

84705-401-670

Unavailable

14

COLLAR, BATTERY BOX | Use from Frame SN 1015356

50324-300-000

Unavailable

14

COLLAR, NUMBER BRACKET SETTING | Use up to Frame SN 1015355

84706-286-000

$2.99

15

RUBBER, FENDER

84905-333-000

$4.22

16

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

17

BOLT, FLANGE (6X25)

90122-369-000

$6.97

18

WASHER (20MM)

90581-310-000

$1.90

18

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

19

BOLT, HEX. (5X20) | Use up to Frame SN 1015355 This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (5X25) | Use from Frame SN 1015356 This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

19

BOLT, HEX. (5X20) | Use up to Frame SN 1015355

92101-05020-0A

$1.49

19

BOLT, HEX. (5X25) | Use from Frame SN 1015356

92101-05025-0A

$1.49

19

BOLT, HEX. (5X20) | Use up to Frame SN 1015355 This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

20

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

20

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

21

SCREW, PAN (4X55) This part replaces 93500-04055-4A.

93500-04055-4J

$1.49

21

SCREW, PAN (4X55)

93500-04055-4J

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

22

WASHER, PLAIN (6MM)

94101-06800

$1.49
