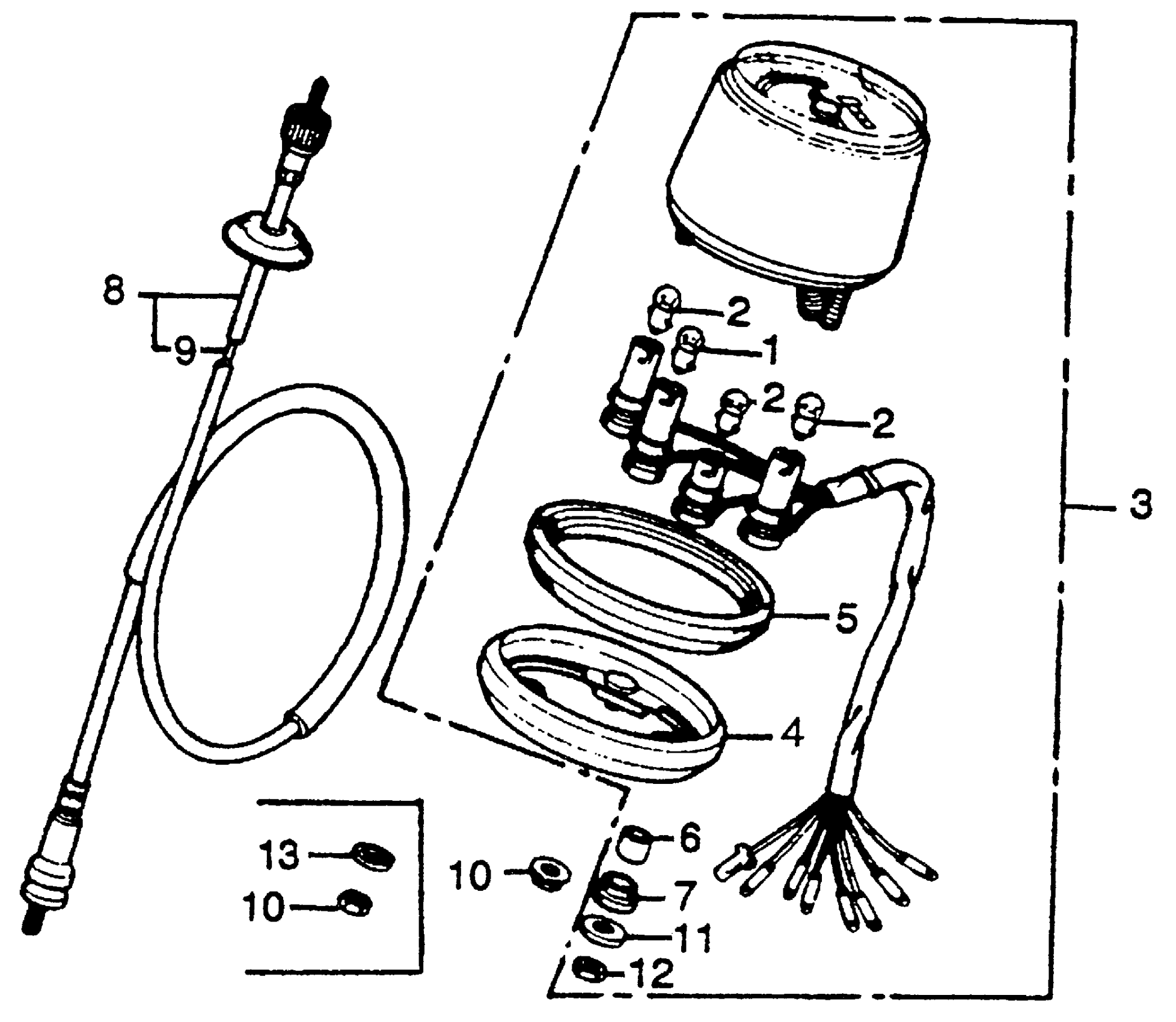

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 SPEEDOMETER Diagram

#

Description
Price

1

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

2

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

3

SPEEDOMETER ASSY. (MPH)

37200-401-601

Unavailable

3

SPEEDOMETER ASSY. (MPH) This part replaces 37200-401-671.

37200-401-601

Unavailable

4

RING, METER SETTING

37213-110-790

Unavailable

5

RUBBER, METER

37242-307-670

Unavailable

6

COLLAR, METER SETTING

37243-307-670

$2.44

7

RUBBER, METER SETTING

37244-307-670

$2.67

8

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-382-671

Unavailable

9

CABLE (INNER) This part replaces 44831-382-000.

44831-437-000

Unavailable

9

CABLE (INNER)

44831-437-000

Unavailable

10

NUT, FLANGE (8MM) This part replaces 90236-300-000.

94050-08000

$1.49

10

NUT, FLANGE (8MM)

94050-08000

$1.49

10

NUT, FLANGE (8MM) This part replaces 94050-08000-0S.

94050-08000

$1.49

11

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

11

WASHER (18MM)

90581-831-650

$1.87

12

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

12

NUT, HEX. (6MM)

94001-06200-0S

$1.49

12

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

13

WASHER, SPRING (8MM)

94111-08000

$1.49
