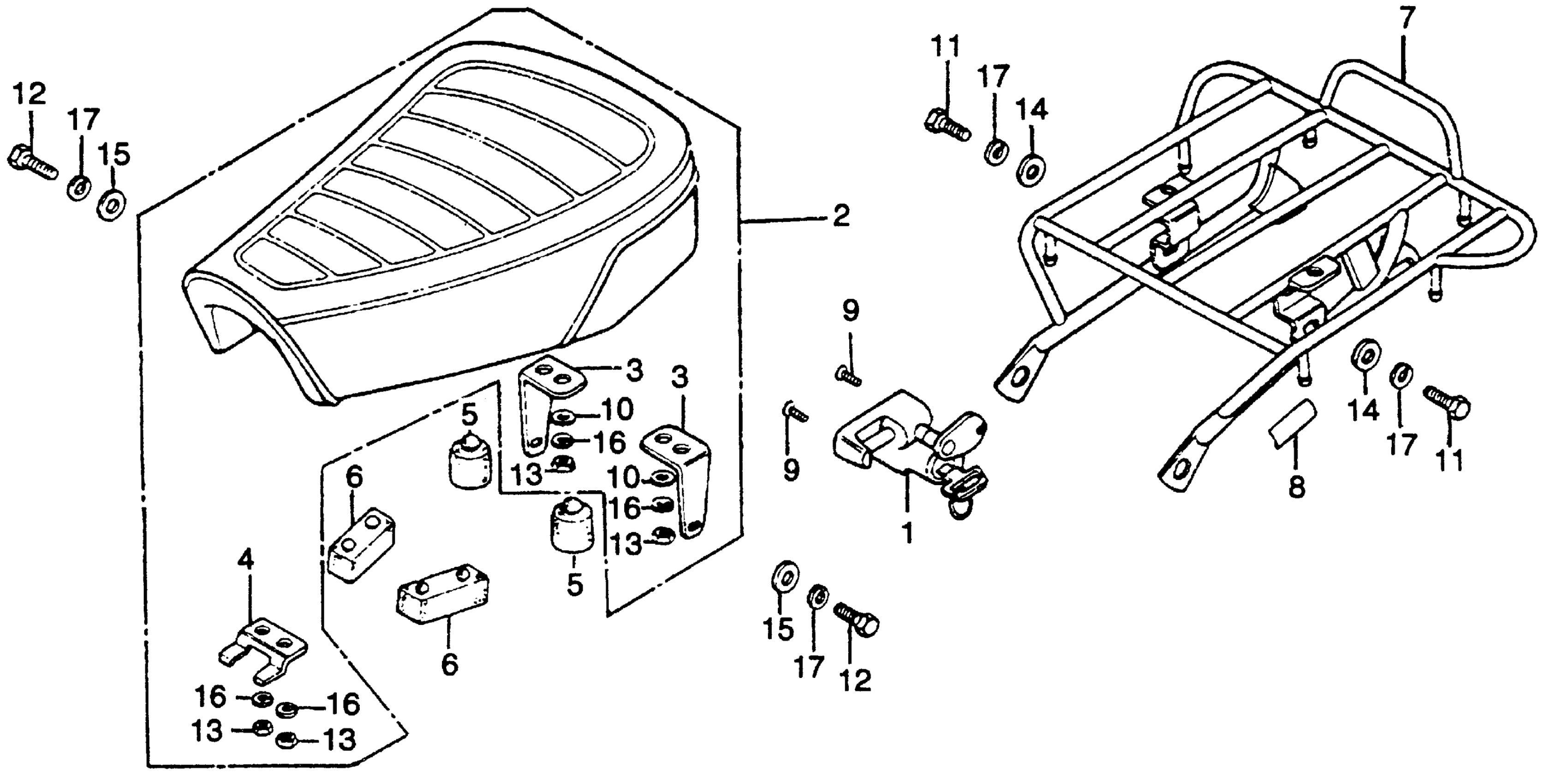

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 SEAT CARRIER Diagram

#

Description
Price

1

HOLDER ASSY., HELMET

50710-382-671

$66.62

2

SEAT (NOT AVAILABLE)

77100-401-680

Unavailable

3

STAY, RR. SEAT

77110-401-680

Unavailable

4

STAY, FR.

77111-365-670

Unavailable

5

RUBBER A, SEAT SETTING (NOT AVAILABLE)

77204-128-000

$7.26

6

RUBBER B, SEAT SETTING

77205-286-000

$5.04

7

CARRIER, RR. (NOT AVAILABLE)

81200-401-680

Unavailable

8

LABEL, RR. CARRIER CAUTION

87512-401-680

Unavailable

9

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.66

10

WASHER, SPECIAL (6MM)

90437-551-305

Unavailable

11

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.47

11

BOLT, HEX. (8X16)

92101-08016-0A

$1.47

12

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

12

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.31

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.31

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.31

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.31

13

NUT, HEX. (6MM)

94001-06200-0S

$1.31

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.31

14

WASHER, PLAIN (8MM)

94101-08000

Unavailable

15

WASHER, PLAIN (8MM)

94102-08000

$0.87

16

WASHER, SPRING (6MM)

94111-06000

$0.87

17

WASHER, SPRING (8MM)

94111-08000

Unavailable
