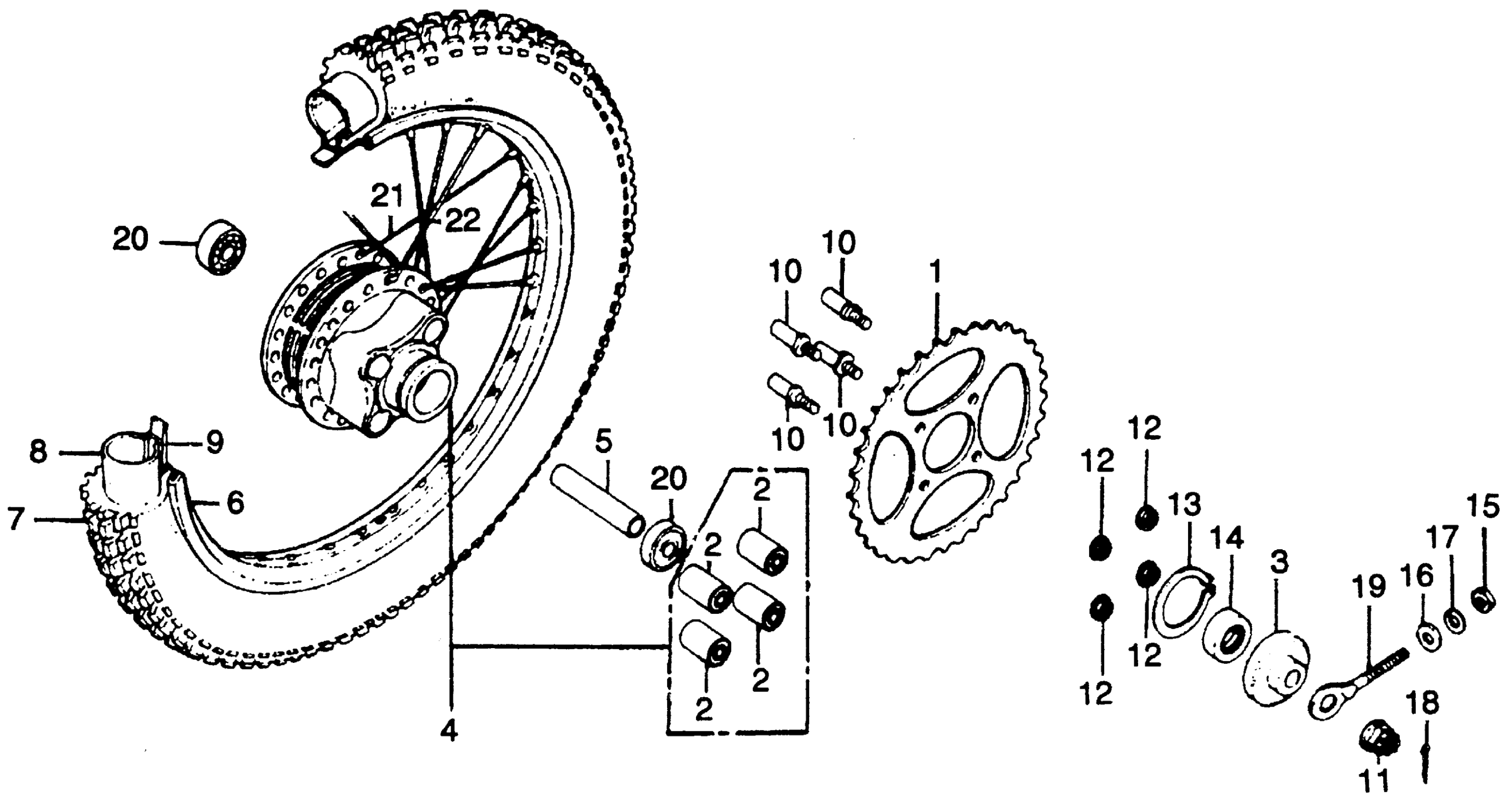

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 REAR WHEEL Diagram

SPROCKET, FINAL DRIVEN (56T) | (Optional).

41201-KE4-770

Unavailable

SPROCKET, FINAL DRIVEN (52T)

41201-382-670

Unavailable

SPROCKET, FINAL DRIVEN (56T) | (Optional). This part replaces 41201-401-810.

41201-KE4-770

Unavailable

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

COLLAR, RR. WHEEL SIDE

42304-107-000

Unavailable

HUB, RR. WHEEL (NOT AVAILABLE)

42610-401-680

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-107-010

Unavailable

RIM, RR. WHEEL

42701-314-405

Unavailable

RIM, RR. WHEEL This part replaces 42701-331-671.

42701-314-405

Unavailable

RIM, RR. WHEEL This part replaces 42701-382-791.

42701-314-405

Unavailable

RIM, RR. WHEEL This part replaces 42701-437-003.

42701-314-405

Unavailable

TIRE, RR. (3.50-18) (DUNLOP) (NOT AVAILABLE)

42711-401-681

Unavailable

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-401-681.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-401-681.

42713-304-003

$6.69

BOLT, DRIVEN SPROCKET FIXING This part replaces 90128-391-000.

90128-KE2-940

$6.84

NUT, AXLE (14MM)

90305-401-680

$11.65

NUT, FLANGE (10MM)

90308-382-670

$4.07

CIRCLIP (58MM)

90664-216-000

$5.55

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, COTTER (3.0X45)

94201-30450

$1.49

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273 This part replaces 40543-384-920.

40543-397-890

$4.24

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273 This part replaces 40543-397-000.

40543-397-890

$4.24

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273

40543-397-890

$4.24

ADJUSTER C, R. CHAIN | Use up to Frame SN 1011272

95014-12100

$5.54

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

SPOKE B (9X171.5)

97337-52183-10

$4.16

SPOKE B (9X171)

97714-52182-10

Unavailable
