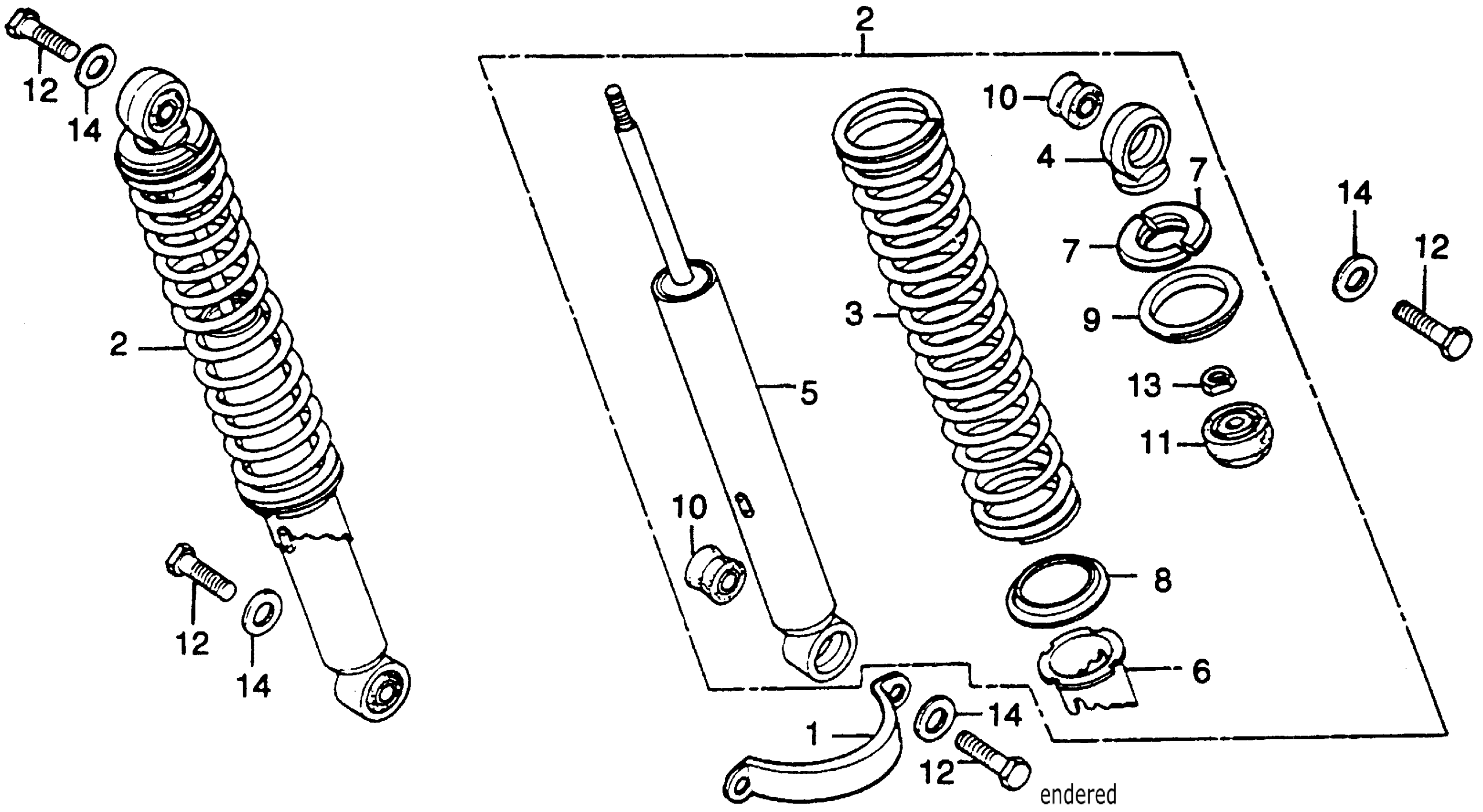

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 REAR SHOCK ABSORBER Diagram

#

Description

Price

1

GUARD, SIDE STAND

50555-401-680

Unavailable

2

SHOCK ABSORBER ASSY., RR.

52400-KE4-791

Unavailable

2

SHOCK ABSORBER ASSY., RR. This part replaces 52400-382-671.

52400-KE4-791

Unavailable

2

SHOCK ABSORBER ASSY., RR. This part replaces 52400-382-672.

52400-KE4-791

Unavailable

3

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-382-670

Unavailable

4

JOINT (UPPER) (NOT AVAILABLE)

52403-391-671

Unavailable

5

DAMPER, RR. (NOT AVAILABLE) This part replaces 52410-382-671.

52410-382-672

Unavailable

5

DAMPER, RR. (NOT AVAILABLE)

52410-382-672

Unavailable

6

ADJUSTER, SPRING (SHOWA) (NOT AVAILABLE)

52422-390-003

Unavailable

7

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.90

8

SEAT, RR. SHOCK ABSORBER SPRING (LOWER) (NOT AVAILABLE)

52458-329-000

Unavailable

9

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA) (NOT AVAILABLE)

52459-312-003

Unavailable

10

BUSH, SHOCK ABSORBER

52489-361-000

Unavailable

11

RUBBER, STOPPER (NOT AVAILABLE) This part replaces 52517-312-000.

52517-358-771

Unavailable

12

BOLT, HEX. (10X35) (NOT AVAILABLE)

93000-10035-0A

Unavailable

13

NUT, HEX. (10MM)

94002-10000-0S

$4.06

14

WASHER, PLAIN (10MM)

94101-10000

$1.49
