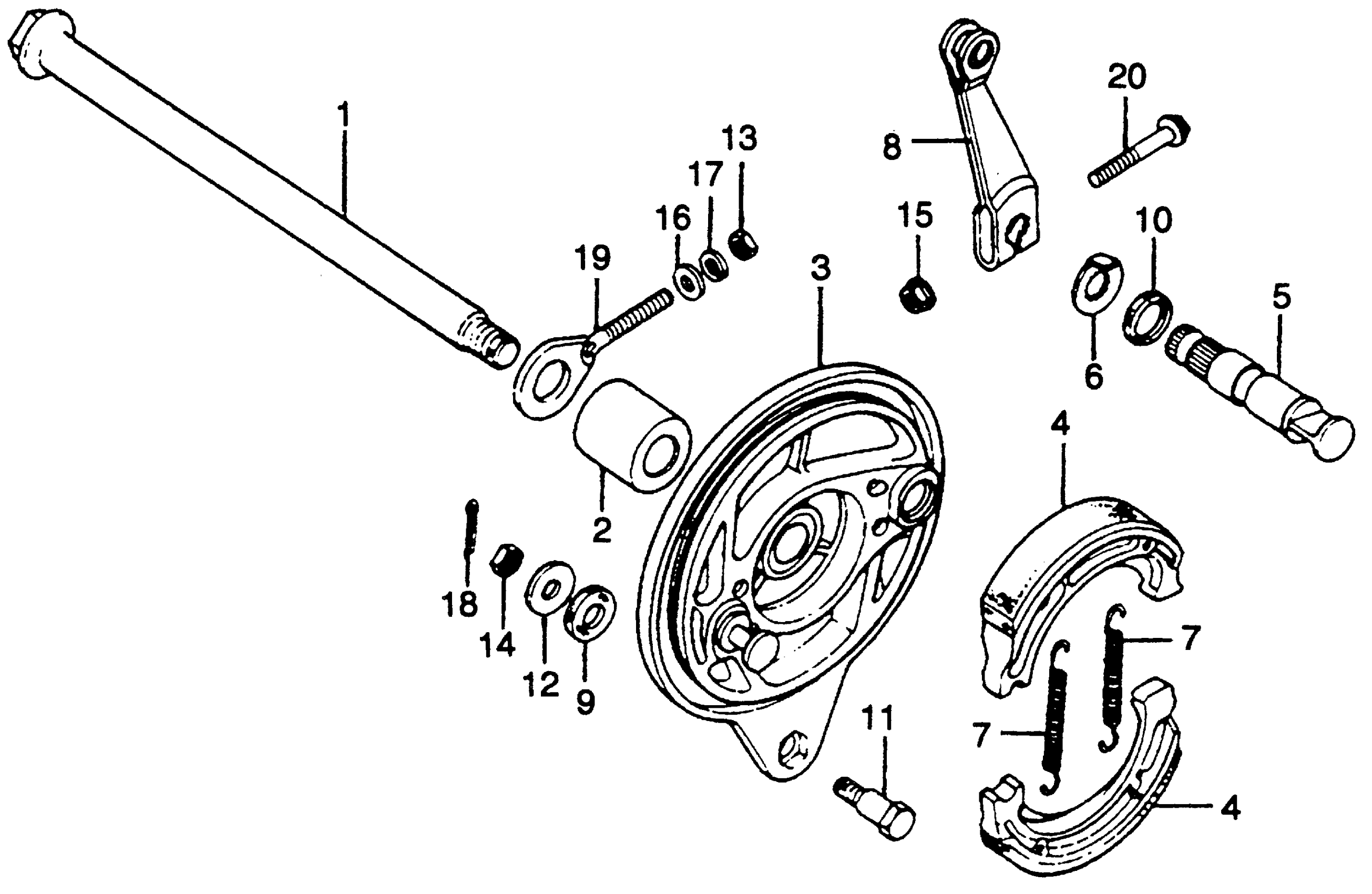

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$26.25

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$26.25

1

AXLE, RR. WHEEL

42301-401-680

Unavailable

2

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

3

PANEL, RR. BRAKE

43100-401-680

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$26.25

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$26.25

5

CAM, RR. BRAKE This part replaces 43141-400-000.

43141-400-010

$20.80

5

CAM, RR. BRAKE

43141-400-010

$20.80

6

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-401-680

Unavailable

7

SPRING, BRAKE SHOE

43151-110-000

$2.80

8

ARM, RR. BRAKE (NOT AVAILABLE)

43411-401-680

Unavailable

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.75

10

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

11

BOLT, RR. BRAKE STOPPER

90127-400-000

$7.99

12

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

13

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

13

NUT, HEX. (6MM)

94001-06200-0S

$1.19

13

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

14

NUT, HEX. (8MM)

94001-08000-0S

$1.19

15

NUT, FLANGE (6MM)

94050-06000

$0.59

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

16

WASHER, PLAIN (6MM)

94101-06800

Unavailable

17

WASHER, SPRING (6MM)

94111-06000

$0.86

18

PIN, COTTER (2.0X15)

94201-20150

$0.94

19

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273 This part replaces 40543-384-920.

40543-397-890

$3.95

19

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273 This part replaces 40543-397-000.

40543-397-890

$3.95

19

ADJUSTER, DRIVE CHAIN | Use from Frame SN 1011273

40543-397-890

$3.95

19

ADJUSTER C, R. CHAIN | Use up to Frame SN 1011272

95014-12100

$5.15

20

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

20

BOLT, FLANGE (6X32)

95701-06032-00

$1.71
