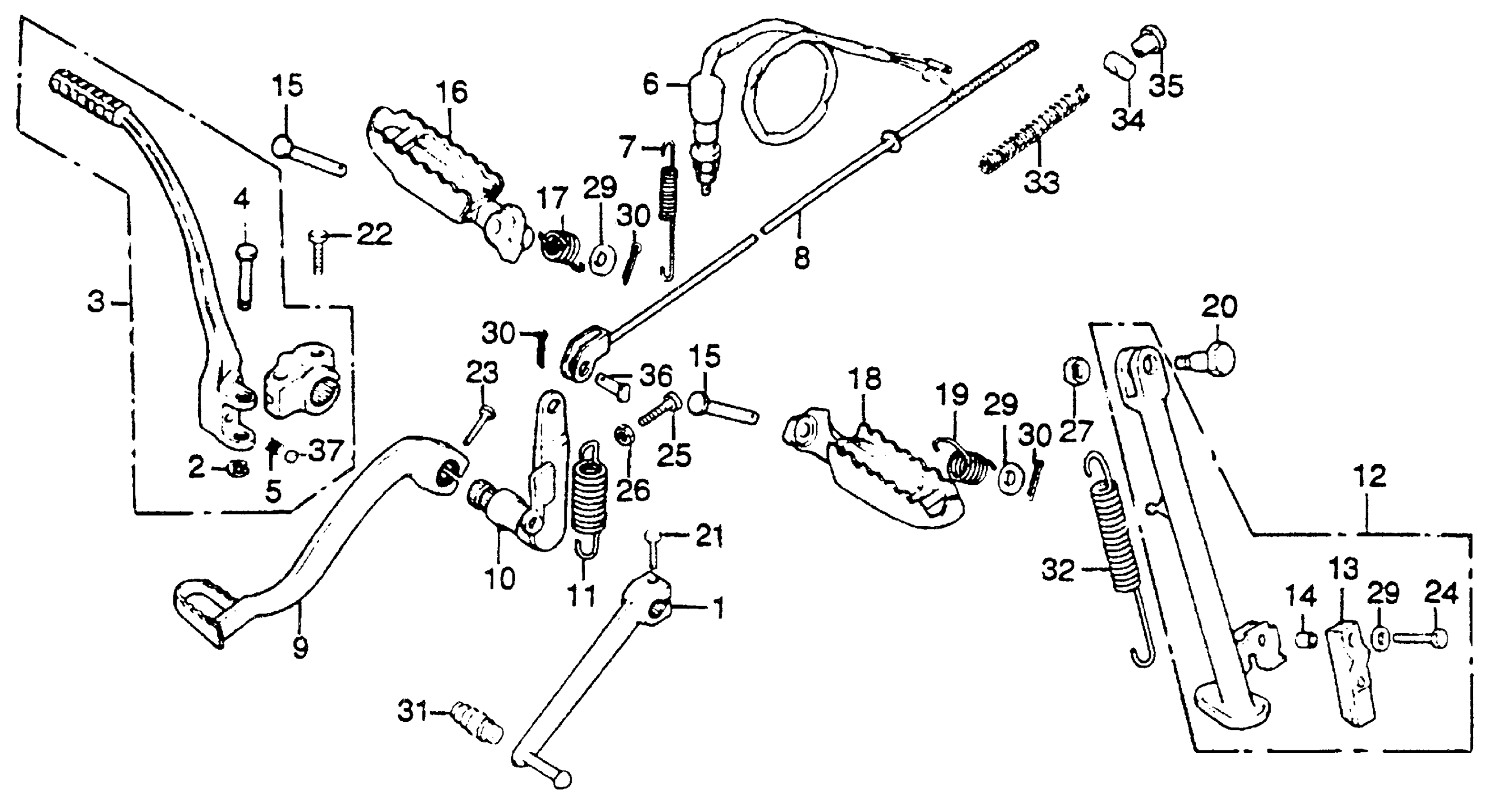

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 PEDALS + SIDE STAND Diagram

PEDAL, GEARSHIFT This part replaces 24700-118-770.

24700-382-770

Unavailable

PEDAL, GEARSHIFT

24700-382-770

Unavailable

PEDAL, GEARSHIFT This part replaces 24701-118-770.

24700-382-770

Unavailable

CLIP, KICK STARTER ARM

28293-124-000

$2.41

ARM ASSY., KICK STARTER

28300-365-671

Unavailable

PIN, KICK STARTER (MURAMATSU)

28321-355-003

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

SPRING, STOP SWITCH

35357-083-000

Unavailable

ROD, RR. BRAKE (NOT AVAILABLE)

43451-355-000

Unavailable

PEDAL, BRAKE *NH1* (BLACK) (NOT AVAILABLE)

46500-382-670ZA

Unavailable

ARM, MIDDLE (NOT AVAILABLE)

46510-382-670

Unavailable

SPRING, RR. BRAKE

46514-GE2-000

Unavailable

SPRING, RR. BRAKE This part replaces 46514-051-000.

46514-GE2-000

Unavailable

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-382-670

Unavailable

RUBBER, STAND

50548-324-760

$12.47

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

PIN, STEP BAR JOINT

50603-033-010

$3.30

STEP, R. (NOT AVAILABLE)

50616-356-000

Unavailable

SPRING, R. STEP RETURN

50617-KF9-900

Unavailable

SPRING, R. STEP RETURN This part replaces 50617-365-670.

50617-KF9-900

Unavailable

STEP, L.

50642-356-000

Unavailable

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-365-670

Unavailable

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-0A.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

BOLT, HEX. (6X22) This part replaces 92100-06022.

92101-06022-0A

$1.54

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92000-06028-0A.

92101-06028-0A

$1.49

BOLT, HEX. (6X28) This part replaces 92100-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

BOLT, HEX. (6x35) This part replaces 92033-06035.

92135-06035

Unavailable

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (10MM)

94002-10000-0S

$4.06

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

PIN, COTTER (1.6X25)

94201-16250

$1.49

RUBBER, SHIFT PEDAL

95011-40000

$1.49

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

SPRING D, SIDE STAND

95014-72402

$2.92

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
