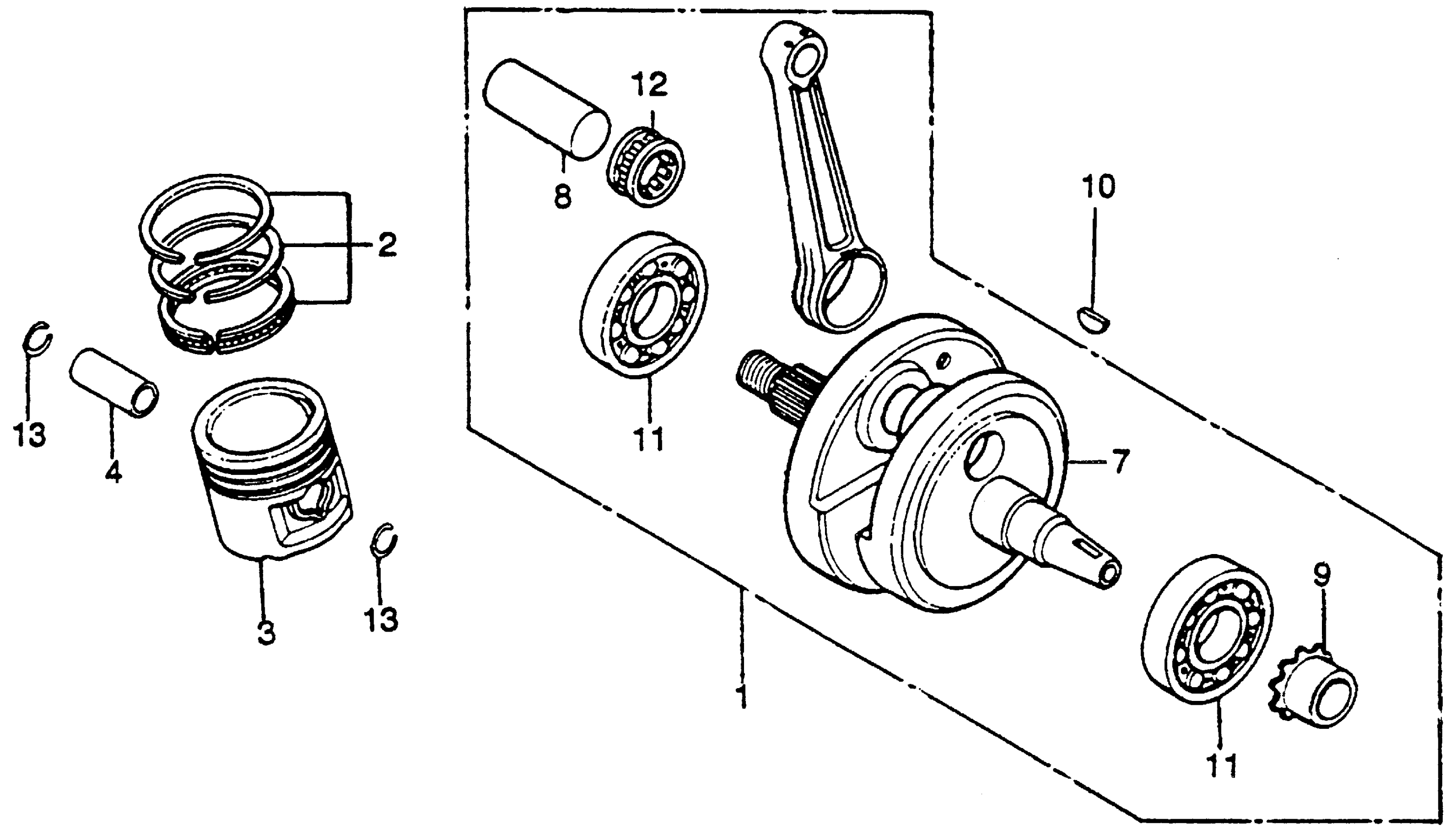

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-355-700

Unavailable

2

RING SET, PISTON (STD)

13011-383-000

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-383-000

$39.31

2

RING SET, PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13031-383-000

Unavailable

2

RING SET, PISTON (0.75) | (Optional).

13041-383-000

Unavailable

2

RING SET, PISTON (1.00) | (Optional).

13051-383-000

Unavailable

3

PISTON (STD)

13101-355-700

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional).

13102-355-700

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional).

13103-355-700

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional).

13104-355-700

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional).

13105-355-700

Unavailable

4

PIN, PISTON

13111-286-000

$26.03

4

PIN, PISTON

13111-440-000

$24.55

7

CRANKSHAFT, L. (NOT AVAILABLE)

13321-355-700

Unavailable

8

PIN, CRANK

13381-HF1-670

Unavailable

8

PIN, CRANK This part replaces 13381-383-300.

13381-HF1-670

Unavailable

9

SPROCKET, TIMING (16T) This part replaces 14311-107-000.

14311-958-000

$41.06

9

SPROCKET, TIMING (16T)

14311-958-000

$41.06

10

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

10

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-003.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-004.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-008.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-013.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-014.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28) This part replaces 91001-383-018.

91009-HC0-003

$31.43

11

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

12

BEARING, CONNECTING ROD LARGE END (RED) (TOYO)

91002-383-003

Unavailable

13

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
