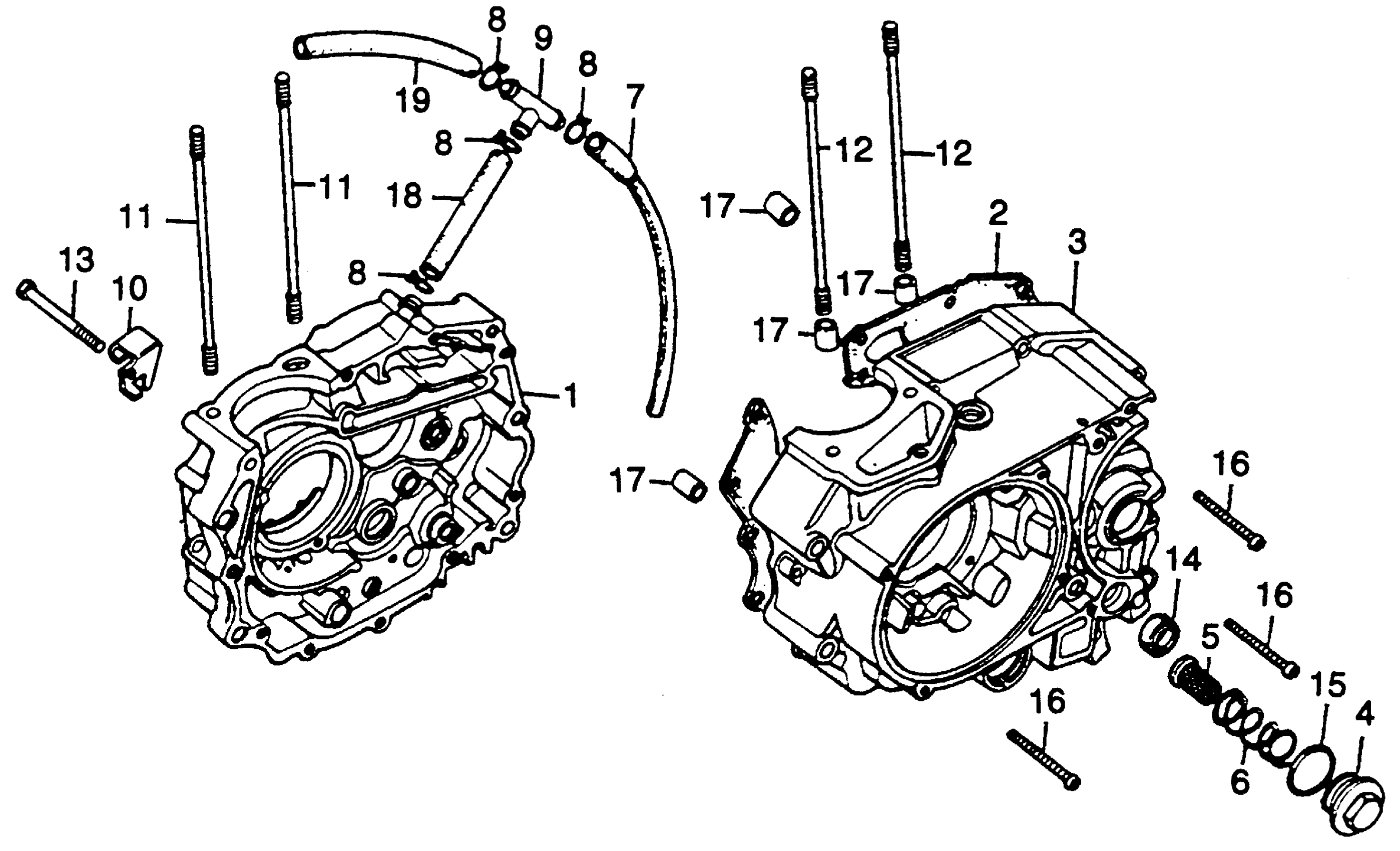

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 CRANKCASES Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-383-000.

11100-383-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-383-020.

11100-383-040

Unavailable

1

CRANKCASE, R. This part replaces 11100-383-030.

11100-383-040

Unavailable

1

CRANKCASE, R.

11100-383-040

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-KY0-600.

11191-KY0-601

$12.46

2

GASKET, CRANKCASE | Use up to Engine SN 1010355 This part replaces 11191-383-000.

11191-KY0-601

$12.46

2

GASKET, CRANKCASE This part replaces 11191-383-010.

11191-KY0-601

$12.46

2

GASKET, CRANKCASE This part replaces 11191-383-306.

11191-KY0-601

$12.46

3

CRANKCASE, L.

11200-355-700

Unavailable

4

CAP, VALVE ADJ.

12361-383-000

$6.43

5

SCREEN, OIL FILTER

15421-107-000

$6.31

6

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

7

TUBE, BREATHER | Use up to Engine SN 1010365 This part replaces 15761-355-700.

15761-355-701

Unavailable

7

TUBE, BREATHER

15761-355-701

Unavailable

8

CLIP, BREATHER TUBE

15772-292-010

$2.92

9

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

10

HOLDER, CLUTCH CABLE (NOT AVAILABLE)

22838-355-000

Unavailable

11

BOLT A, CYLINDER STUD This part replaces 90031-107-000.

90031-107-010

$9.57

11

BOLT A, CYLINDER STUD

90031-107-010

$9.57

12

BOLT B, CYLINDER STUD (NOT AVAILABLE) This part replaces 90032-107-000.

90032-107-010

Unavailable

13

BOLT, HEX. (6X55) (NOT AVAILABLE) | Use up to Engine SN 1023232

90081-355-000

Unavailable

13

BOLT, HEX. (6X55) | Use from Engine SN 1023233 This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

13

BOLT, HEX. (6X55) | Use from Engine SN 1023233

92101-06055-0A

$1.98

14

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

15

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

16

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

16

SCREW, PAN (6X50)

93500-06050-0A

$1.49

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

BULK HOSE, VACUUM (11X1000) (11X130)

95005-11001-30M

$28.08

19

BULK HOSE, VACUUM (11X1000) (11X190)

95005-11001-30M

$28.08
