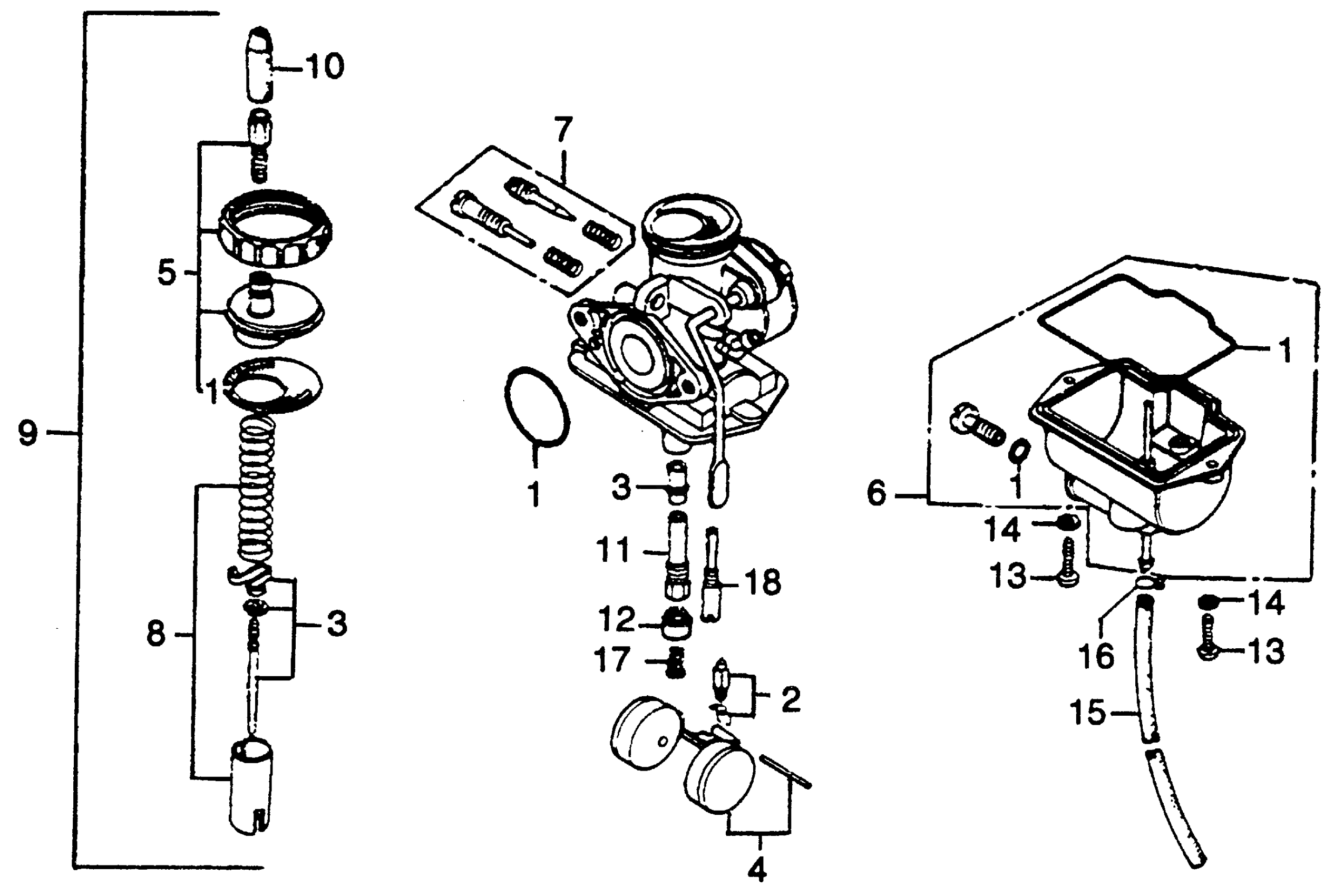

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GCR-000

$12.71

1

GASKET SET This part replaces 16010-116-700.

16010-GCR-000

$12.71

2

VALVE SET, FLOAT | Use up to Engine SN PC04B A This part replaces 16011-143-620.

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use up to Engine SN PC04B A This part replaces 16011-147-004.

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use from Engine SN PC04B B This part replaces 16011-147-004.

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use up to Engine SN PC04B A This part replaces 16011-147-305.

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use from Engine SN PC04B B This part replaces 16011-147-305.

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use up to Engine SN PC04B A

16011-881-741

$22.81

2

VALVE SET, FLOAT | Use from Engine SN PC04B B

16011-881-741

$22.81

3

NEEDLE SET, JET

16012-355-700

Unavailable

4

FLOAT SET

16013-116-700

$26.26

5

TOP SET

16014-116-700

Unavailable

6

CHAMBER SET, FLOAT

16015-116-700

Unavailable

7

SCREW SET

16016-143-620

$22.05

8

VALVE SET, THROTTLE

16022-355-710

Unavailable

9

CARBURETOR ASSY. | Use up to Engine SN 1024102 This part replaces 16100-401-680.

16100-401-694

Unavailable

9

CARBURETOR ASSY. | Use up to Engine SN 1024102 This part replaces 16100-401-681.

16100-401-694

Unavailable

9

CARBURETOR ASSY. This part replaces 16100-401-681.

16100-401-694

Unavailable

9

CARBURETOR ASSY. | Use up to Engine SN 1024102 This part replaces 16100-401-682.

16100-401-694

Unavailable

9

CARBURETOR ASSY. This part replaces 16100-401-682.

16100-401-694

Unavailable

9

CARBURETOR ASSY. | Use up to Engine SN 1024102

16100-401-694

Unavailable

9

CARBURETOR ASSY.

16100-401-694

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$7.71

10

CAP, CABLE SEALING

16118-166-004

$7.71

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-355-700

Unavailable

12

HOLDER, JET

16168-355-700

$7.75

13

SCREW, PAN (4X12)

93500-04012-0A

$0.76

14

WASHER, SPRING (4MM)

94111-04000

$0.99

15

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$22.75

16

CLIP, TUBE (B7)

95002-02070

$1.62

17

JET,#105 This part replaces 99101-116-1050.

99102-GHB-1050

$7.54

18

JET, SLOW (#35)

99103-355-0350

Unavailable
