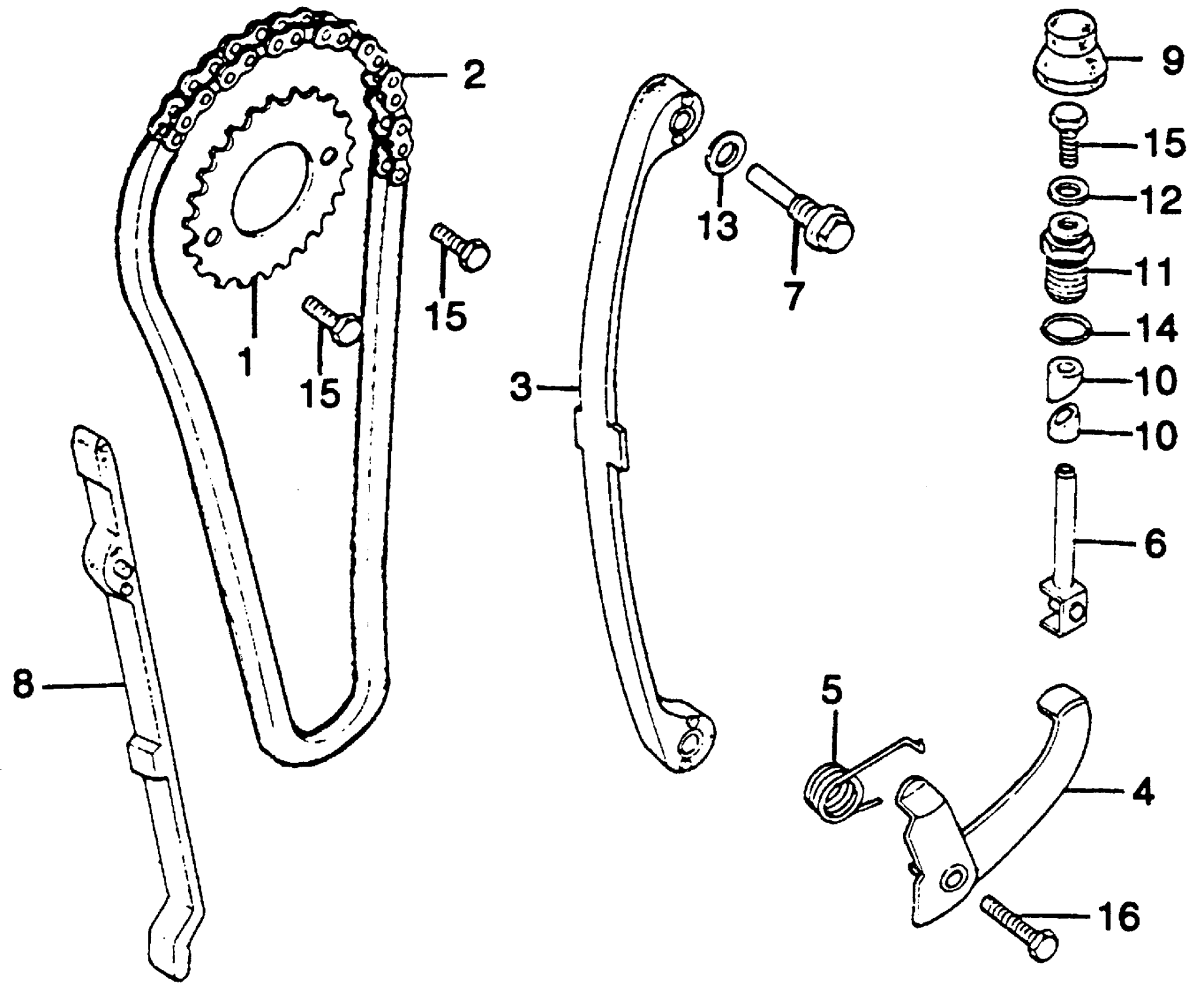

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (32T) This part replaces 14321-107-010.

14321-437-000

Unavailable

1

SPROCKET, CAM (32T)

14321-437-000

Unavailable

2

CHAIN, CAM (DID25H-98LE) (DAIDO)

14401-383-003

Unavailable

3

TENSIONER, CAM CHAIN

14500-383-000

$76.33

4

ARM, CAM CHAIN TENSIONER

14510-383-000

$30.20

5

SPRING, CAM CHAIN TENSIONER

14515-383-000

$4.74

6

BAR, TENSIONER SETTING | Use up to Engine SN 1020967 This part replaces 14520-383-000.

14520-969-010

$23.42

6

BAR, TENSIONER SETTING | Use up to Engine SN 1020967 This part replaces 14520-383-010.

14520-969-010

$23.42

6

BAR, TENSIONER SETTING | Use up to Engine SN 1020967 This part replaces 14520-969-000.

14520-969-010

$23.42

6

BAR, TENSIONER SETTING | Use up to Engine SN 1020967

14520-969-010

$23.42

6

BAR, TENSIONER SETTING

14520-969-010

$23.42

7

BOLT, CAM CHAIN TENSIONER PIVOT

14535-107-010

Unavailable

8

GUIDE, CAM CHAIN

14550-383-000

Unavailable

9

CAP, TENSIONER ADJ.

14564-383-000

$4.13

10

COLLAR, SET BAR LOCKING

14626-383-000

$8.54

11

BOLT, SPECIAL (16MM)

90082-383-000

$24.30

12

WASHER, SEALING (6MM)

90441-028-010

$2.80

13

WASHER (8MM)

90481-035-000

$1.70

14

O-RING (13X2.5)

91335-567-000

$3.73

15

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.28

15

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.28

15

BOLT, HEX. (6X10)

92101-06010-0A

$1.28

16

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

16

BOLT, HEX. (6X20) This part replaces 92000-06020-0A.

92101-06020-0A

$0.94

16

BOLT, HEX. (6X20)

92101-06020-0A

$0.94
