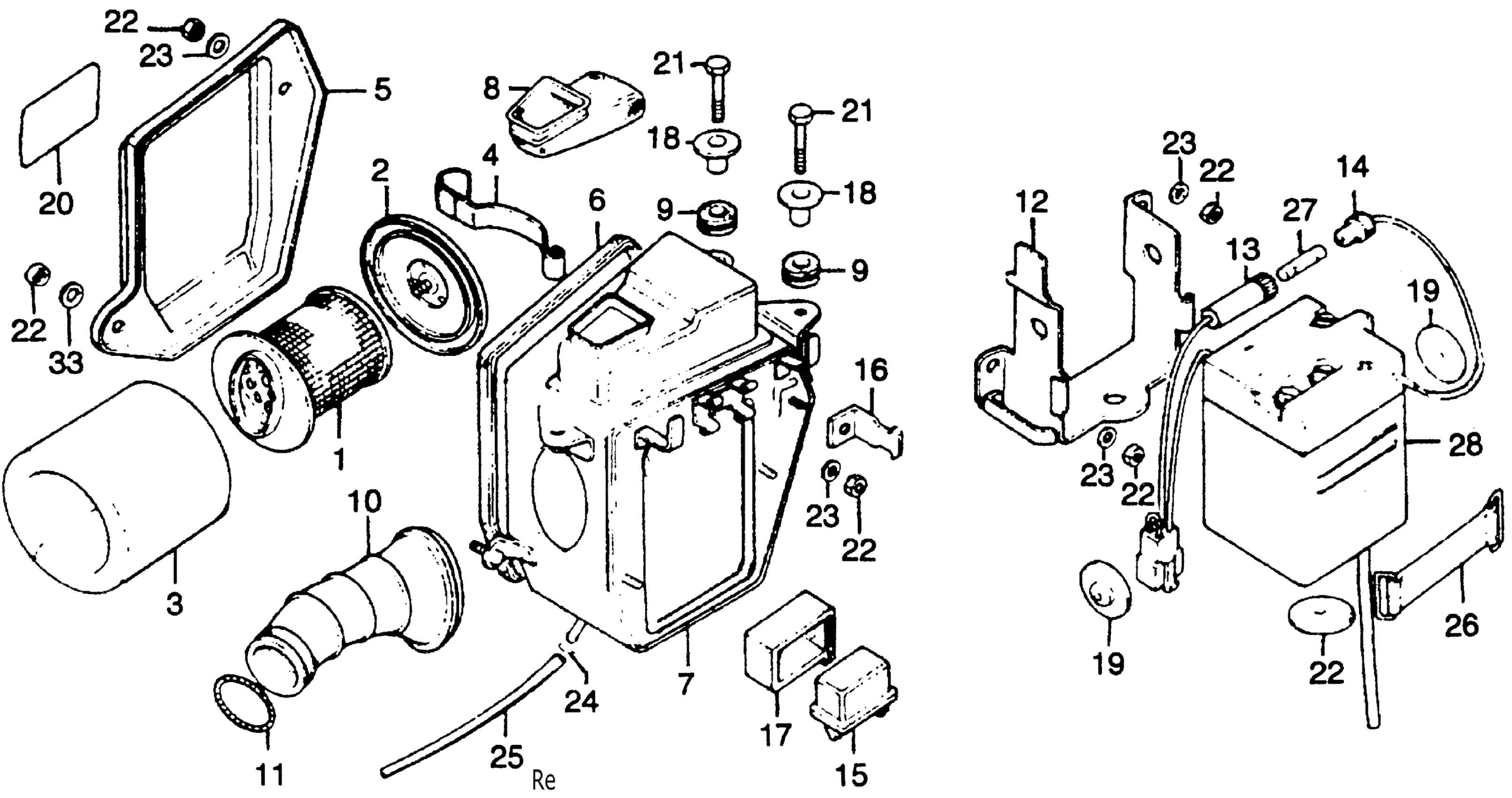

Honda CT125A (77) TRAIL 125, JPN, VIN# CT125-1010366 AIR CLEANER + BATTERY Diagram

#

Description
Price

1

TRAP, FLAME

17211-383-670

Unavailable

2

CAP, ELEMENT HOLDER

17212-385-000

Unavailable

3

ELEMENT, AIR CLEANER

17213-383-670

$9.85

4

SPRING, ELEMENT

17217-385-000

Unavailable

5

COVER, AIR CLEANER (NOT AVAILABLE)

17220-401-680

Unavailable

6

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-382-670

Unavailable

7

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-401-680

Unavailable

8

DUCT, AIR CLEANER (INNER)

17241-401-680

Unavailable

9

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

10

TUBE, CONNECTING (NOT AVAILABLE)

17253-401-680

Unavailable

11

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

11

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

12

TRAY, BATTERY (NOT AVAILABLE)

31530-365-670

Unavailable

13

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-000.

32106-437-300

Unavailable

13

CONNECTOR A, FUSE (YUASA) This part replaces 32106-041-008.

32106-437-300

Unavailable

13

CONNECTOR A, FUSE (YUASA)

32106-437-300

Unavailable

14

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

14

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

15

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

15

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

16

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38301-365-670

Unavailable

17

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-092-670

Unavailable

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

RUBBER, BATTERY BOX

83618-323-000

$2.47

20

LABEL, AIR CLEANER CAUTION

87508-120-000

$5.26

21

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

21

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

21

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

21

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

23

WASHER, PLAIN (6MM)

94101-06800

$1.49

24

CLIP, TUBE (C6)

95002-30000

Unavailable

25

*95003-08008-10M This part replaces 95003-08015-10.

95003-08020-10S

Unavailable

26

BAND B1, BATTERY This part replaces 95012-12000.

95012-12001

$5.90

26

BAND B1, BATTERY

95012-12001

$5.90

27

FUSE A (10A)

98200-11000

$1.80

28

BATTERY (6N4C-1B) This part replaces 31500-098-506.

31500-098-506AH

Unavailable

28

BATTERY (6N4C-1B) This part replaces 31500-098-957.

31500-098-506AH

Unavailable

28

BATTERY (6N4C-1B) This part replaces 98203-66230.

31500-098-506AH

Unavailable
