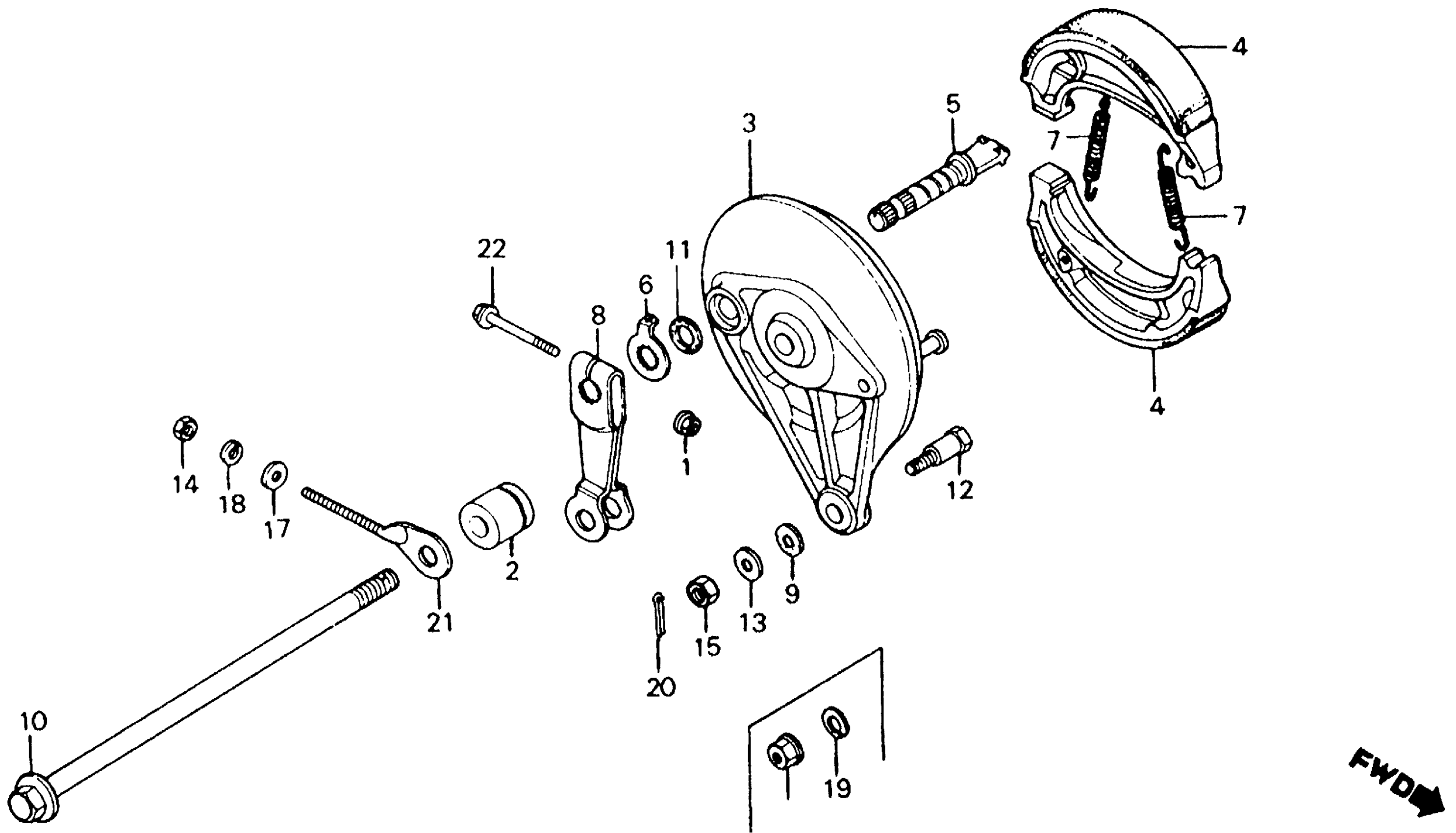

Honda CT110AC (86) TRAIL 110, JPN, VIN# JH2JD011-GS500001 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

NUT, FLANGE (6MM)

94050-06000

$1.49

2

COLLAR, RR. BRAKE PANEL SIDE (NOT AVAILABLE)

42313-459-670

Unavailable

3

PANEL, RR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)

43100-153-601ZA

Unavailable

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

4

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

5

CAM, RR. BRAKE

43141-400-010

$23.52

6

INDICATOR, RR. BRAKE | Use up to Frame SN GS505573

43145-149-000

Unavailable

6

INDICATOR, RR. BRAKE | Use from Frame SN GS505574

43145-GC5-000

Unavailable

7

SPRING, BRAKE SHOE

43151-110-000

$2.92

8

ARM, RR. BRAKE

43410-086-720

Unavailable

8

ARM, RR. BRAKE This part replaces 43410-149-000.

43410-086-720

Unavailable

9

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

10

AXLE, WHEEL

44301-198-900

Unavailable

10

AXLE, WHEEL This part replaces 44301-400-000.

44301-198-900

Unavailable

11

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

12

BOLT A, BRAKE STOPPER

92811-10000

$2.92

13

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

14

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49

18

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

ADJUSTER A, R. CHAIN

95014-10100

$5.54

22

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

22

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
