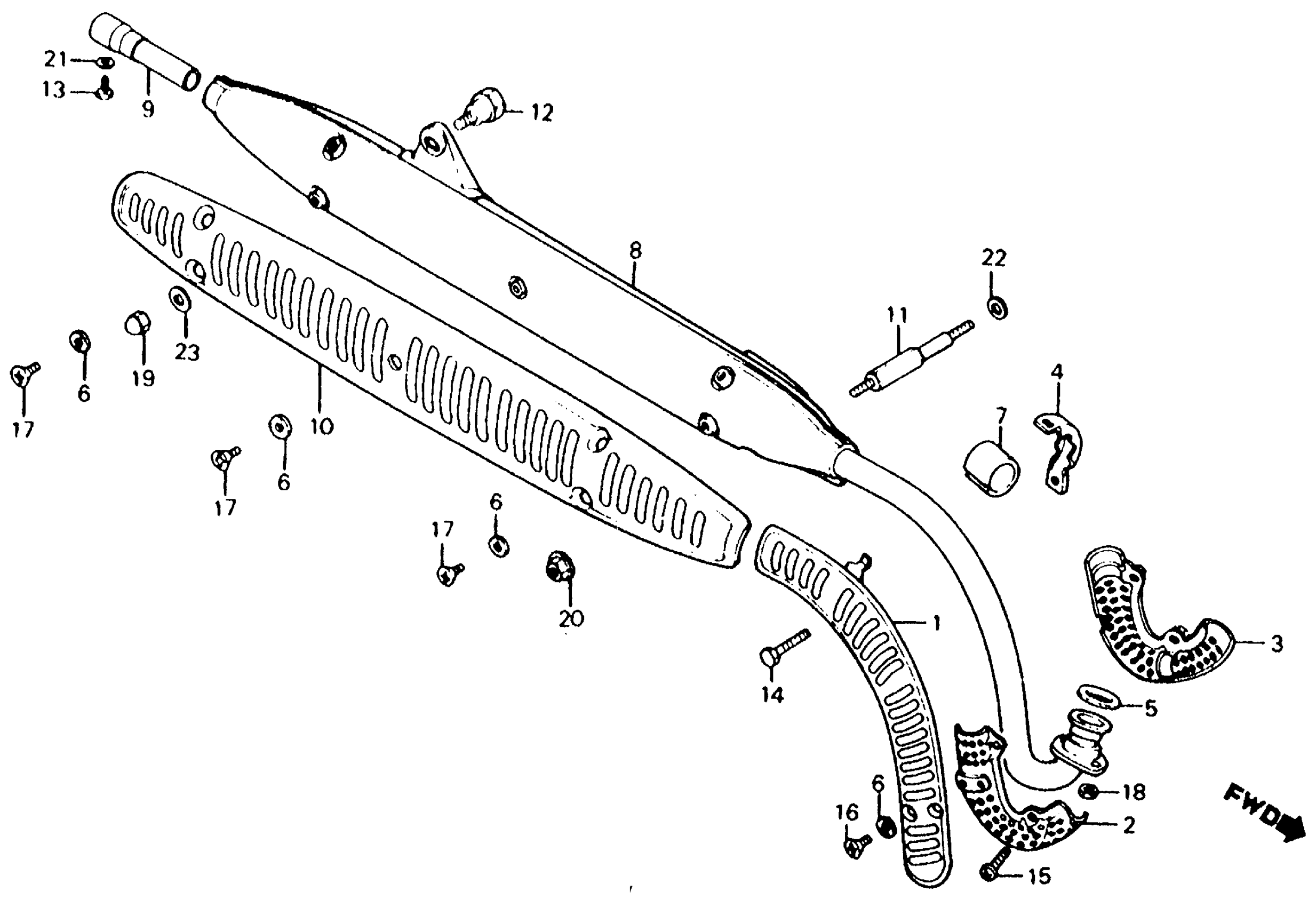

Honda CT110AC (86) TRAIL 110, JPN, VIN# JH2JD011-GS500001 MUFFLER Diagram

#

Description
Price

1

PROTECTOR, EX. PIPE

18240-102-671

Unavailable

2

COVER, EX. PIPE

18241-459-670

Unavailable

3

COVER B, EX. PIPE

18242-459-670

Unavailable

4

BAND, PROTECTOR SETTING

18281-011-000

$5.74

5

GASKET, EX. PIPE

18291-HB2-900

$3.48

5

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.48

5

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.48

6

GASKET, PROTECTOR

18292-167-890

$1.80

6

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.80

7

GASKET B, PROTECTOR

18293-GAN-670

$10.15

7

GASKET B, PROTECTOR This part replaces 18293-459-670.

18293-GAN-670

$10.15

8

MUFFLER ASSY.

18300-459-405

Unavailable

8

MUFFLER ASSY. This part replaces 18300-459-710.

18300-459-405

Unavailable

9

PIPE, EX. DIFFUSER

18311-077-020

$24.07

10

PROTECTOR, MUFFLER This part replaces 18361-102-010.

18361-459-600

Unavailable

11

BOLT, FR. MUFFLER MOUNT (NOT AVAILABLE)

90111-102-000

Unavailable

11

BOLT, FR. MUFFLER SETTING | Use from Frame SN GS500988

90111-459-910

Unavailable

12

SCREW, MUFFLER CLAMP

90165-077-000

Unavailable

13

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.06

13

BOLT, HEX. (5X8)

92101-05008-4J

$2.06

14

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

14

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

15

SCREW, PAN (5X16)

93500-05016-0A

$0.83

16

SCREW, OVAL (6X10)

93700-06010-0A

$0.77

16

SCREW, OVAL (6X10) This part replaces 93700-06010-1A.

93700-06010-0A

$0.77

17

SCREW, OVAL (6X10) This part replaces 93700-06010-4A.

93700-06010-4J

$1.83

17

SCREW, OVAL (6X10) This part replaces 93700-06010-4B.

93700-06010-4J

$1.83

17

SCREW, OVAL (6X10)

93700-06010-4J

$1.83

17

SCREW, OVAL (6X10) This part replaces 93700-06010-40.

93700-06010-4J

$1.83

17

SCREW, OVAL (6X10) This part replaces 93700-06010-49.

93700-06010-4J

$1.83

18

NUT, CAP (6MM) This part replaces 90207-165-600.

90304-438-000

$6.64

18

NUT, CAP (6MM)

90304-438-000

$6.64

19

NUT, CAP (8MM)

90443-107-000

$2.62

20

NUT, FLANGE (6MM)

94050-06000

$0.59

21

WASHER, PLAIN (5MM)

94101-05000

$0.90

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

Unavailable
