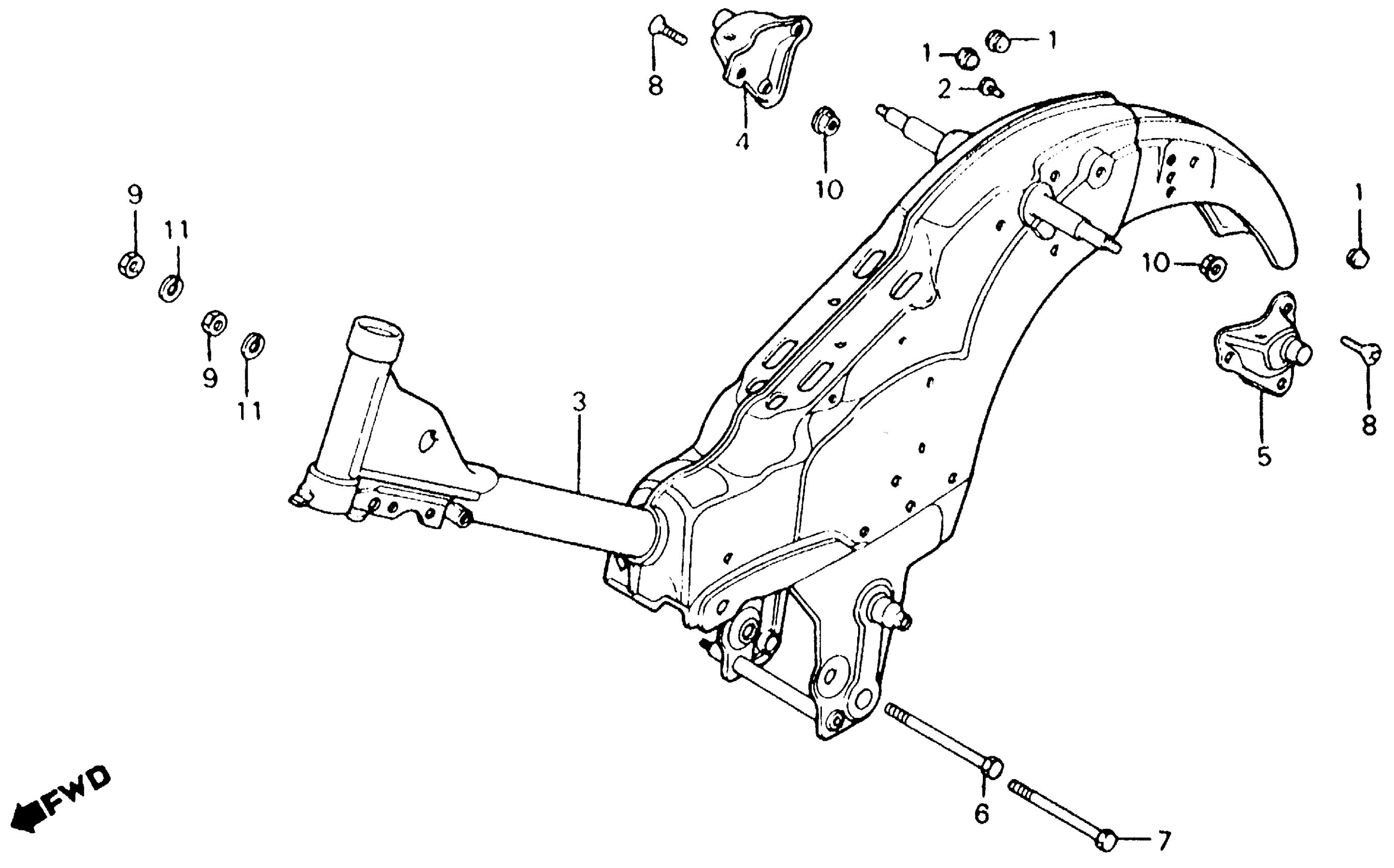

Honda CT110AC (86) TRAIL 110, JPN, VIN# JH2JD011-GS500001 FRAME Diagram

GROMMET B, RR. TURN SIGNAL WIRE | Use up to Frame SN GS505573

33666-053-000

$2.92

GROMMET, MUFFLER PROTECTOR (A) | Use from Frame SN GS505574

18366-GW8-670

$4.23

PLUG, HEAD PIPE

50049-046-000

$2.03

FRAME *R110* (MONZA RED)

50100-459-900ZA

Unavailable

BRACKET, R. RR. SUSPENSION *R110* (MONZA RED)

50303-102-730ZD

Unavailable

BRACKET, L. RR. SUSPENSION *R110* (MONZA RED) (NOT AVAILABLE)

50306-102-730ZE

Unavailable

BOLT, HEX. (10X130) (NOT AVAILABLE)

90103-102-720

Unavailable

BOLT, RR. ENGINE (LOWER) (NOT AVAILABLE)

90116-046-000

Unavailable

SCREW, OVAL (6X16) This part replaces 93700-06016.

93700-06016-0A

$1.49

SCREW, OVAL (6X16)

93700-06016-0A

$1.49

NUT, HEX. (10MM)

94030-10000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49
