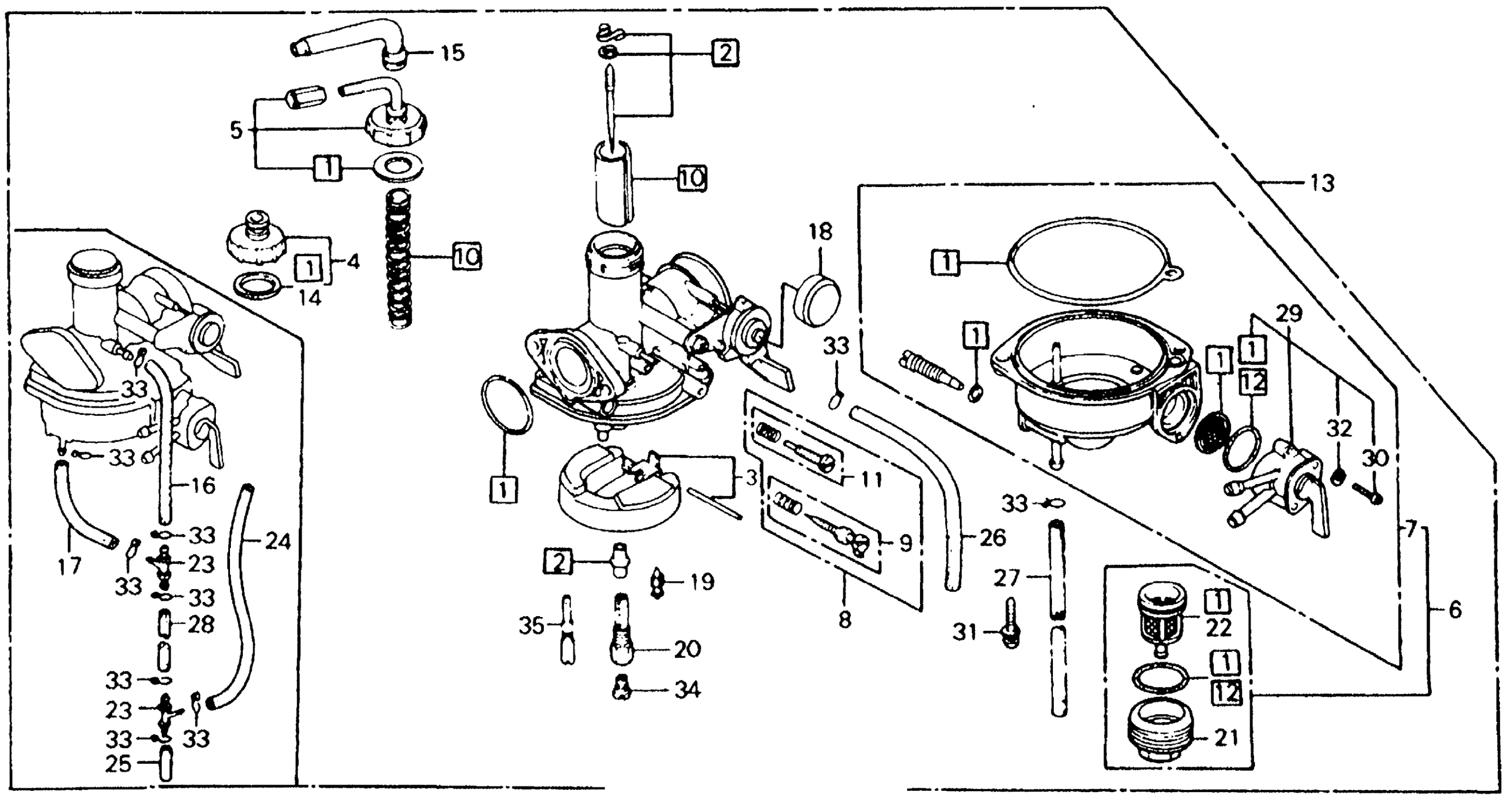

Honda CT110AC (86) TRAIL 110, JPN, VIN# JH2JD011-GS500001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-459-711.

16010-943-305

$40.94

1

GASKET SET

16010-943-305

$40.94

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-459-004

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

TOP SET

16014-KN4-651

Unavailable

6

CHAMBER SET, FLOAT

16015-126-852

Unavailable

9

SCREW SET A

16016-GB5-305

Unavailable

9

SCREW SET, A This part replaces 16016-GB5-671.

16016-GB5-305

Unavailable

10

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-KG8-911

Unavailable

10

VALVE SET, THROTTLE (NOT AVAILABLE) This part replaces 16022-459-004.

16022-KG8-911

Unavailable

11

SCREW SET B

16028-GC8-004

$16.35

12

GASKET B SET

16040-GB0-911

Unavailable

13

CARBURETOR ASSY. This part replaces 16100-459-902.

16101-459-P10

Unavailable

13

CARBURETOR ASSY.

16101-459-P10

Unavailable

14

GASKET, TOP

16110-KN4-651

$7.69

16

TUBE, AIR VENT

16143-459-901

Unavailable

17

TUBE, OVERFLOW

16144-459-901

Unavailable

18

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

18

CAP, CHOKE LEVER DUST This part replaces 16148-943-003.

16148-141-881

$4.75

19

VALVE, FLOAT

16155-883-005

$20.11

20

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-459-004

Unavailable

21

CUP, FUEL STRAINER

16175-GB0-911

$22.85

22

CUP, FILTER

16176-GB0-911

$18.37

23

JOINT (T-TYPE)

16180-195-731

$12.95

24

TUBE

16198-459-901

Unavailable

25

TUBE, FUEL This part replaces 16199-187-003.

16199-KG4-405

$9.49

28

TUBE, AIR VENT This part replaces 16199-459-901.

16199-428-405

$3.10

29

BODY SET, PETCOCK This part replaces 16951-126-851.

16951-459-920

Unavailable

29

BODY SET, PETCOCK This part replaces 16951-126-852.

16951-459-920

Unavailable

29

BODY SET, PETCOCK

16951-459-920

Unavailable

30

SCREW, PAN (3X12)

93500-03012-0H

$1.49

31

SCREW-WASHER (4X14)

93892-04014-08

$1.49

32

WASHER, SPRING (3MM)

94111-03000

$1.49

33

CLIP, TUBE (B6.5)

95002-02650

$1.49

34

JET,MAIN #70 | (Optional). This part replaces 99101-116-0700.

99101-KFV-0700

Unavailable

34

JET,MAIN #72 This part replaces 99101-116-0720.

99101-KRL-0720

$12.67

34

JET,MAIN #70 | (Optional). This part replaces 99102-GHB-0700.

99101-KFV-0700

Unavailable

35

JET, SLOW (#38)

99103-459-0380

$19.59
