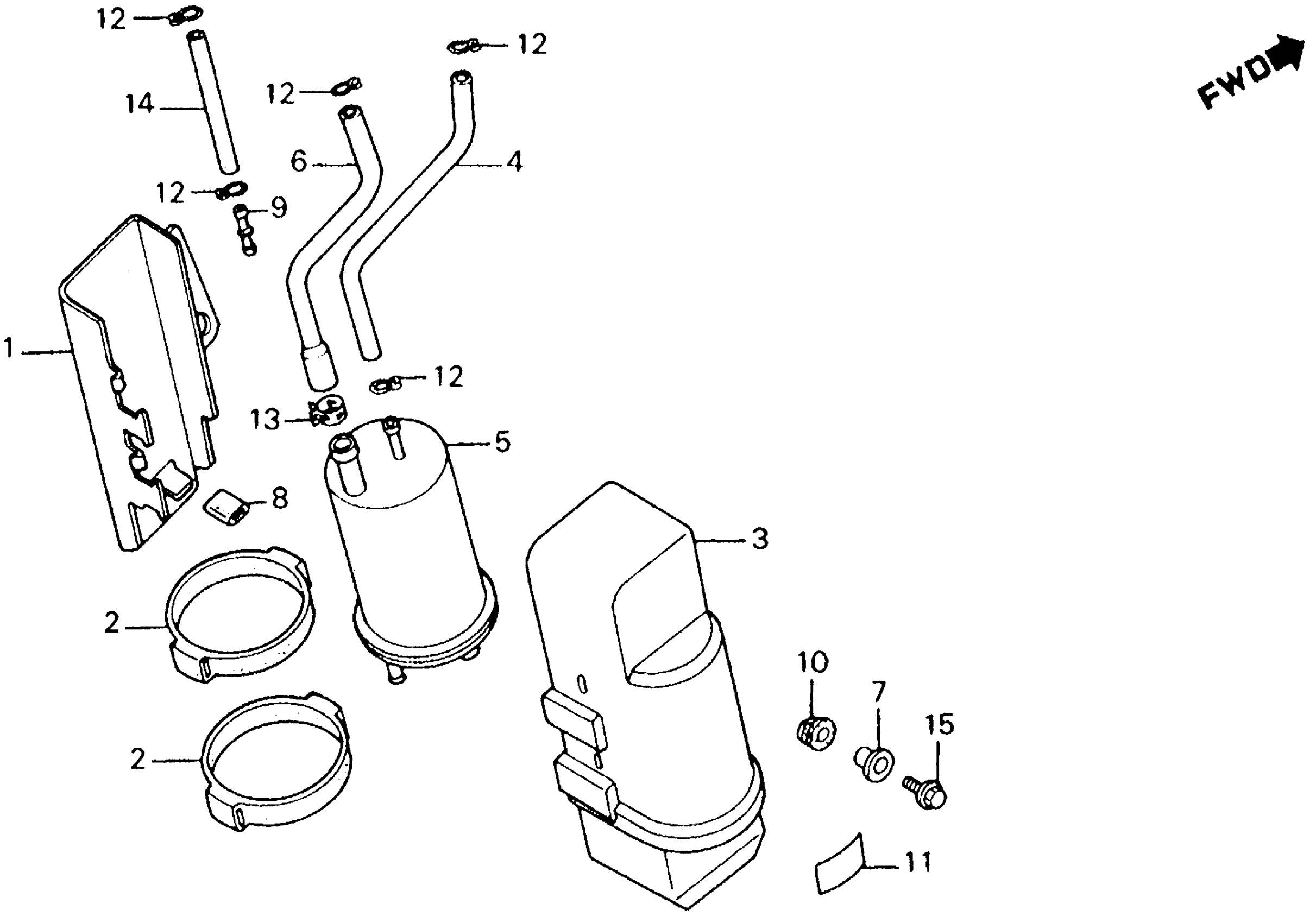

Honda CT110AC (86) TRAIL 110, JPN, VIN# JH2JD011-GS500001 CANISTER 86 Diagram

STAY A, CANISTER SET

17302-459-901

Unavailable

BAND, CANISTER SETTING

17303-MG9-640

$8.43

CANISTER ASSY.

17310-GE1-871

$101.30

COVER, CANISTER

17305-459-900

Unavailable

TUBE, CANISTER

17309-459-900

Unavailable

CANISTER ASSY. (FUTABA)

17310-459-901

Unavailable

TUBE, PURGE

17312-459-900

Unavailable

COLLAR, TANK SETTING

17509-398-960

$5.85

RUBBER B, BATTERY SETTING

31503-044-670

$2.56

JOINT, BATTERY BREATHER (NOT AVAILABLE)

31503-190-670

Unavailable

RUBBER A, SEAT HINGE

77217-GB4-010

Unavailable

DIAGRAM, VACUUM HOSE ROUTING

87135-459-900

Unavailable

CLIP, TUBE (B7)

95002-02070

$1.80

CLIP, TUBE (D12)

95002-41200-08

$2.34

BULK HOSE, VACUUM (3.5X1000) (3.5X40)

95005-35001-20M

$9.67

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
