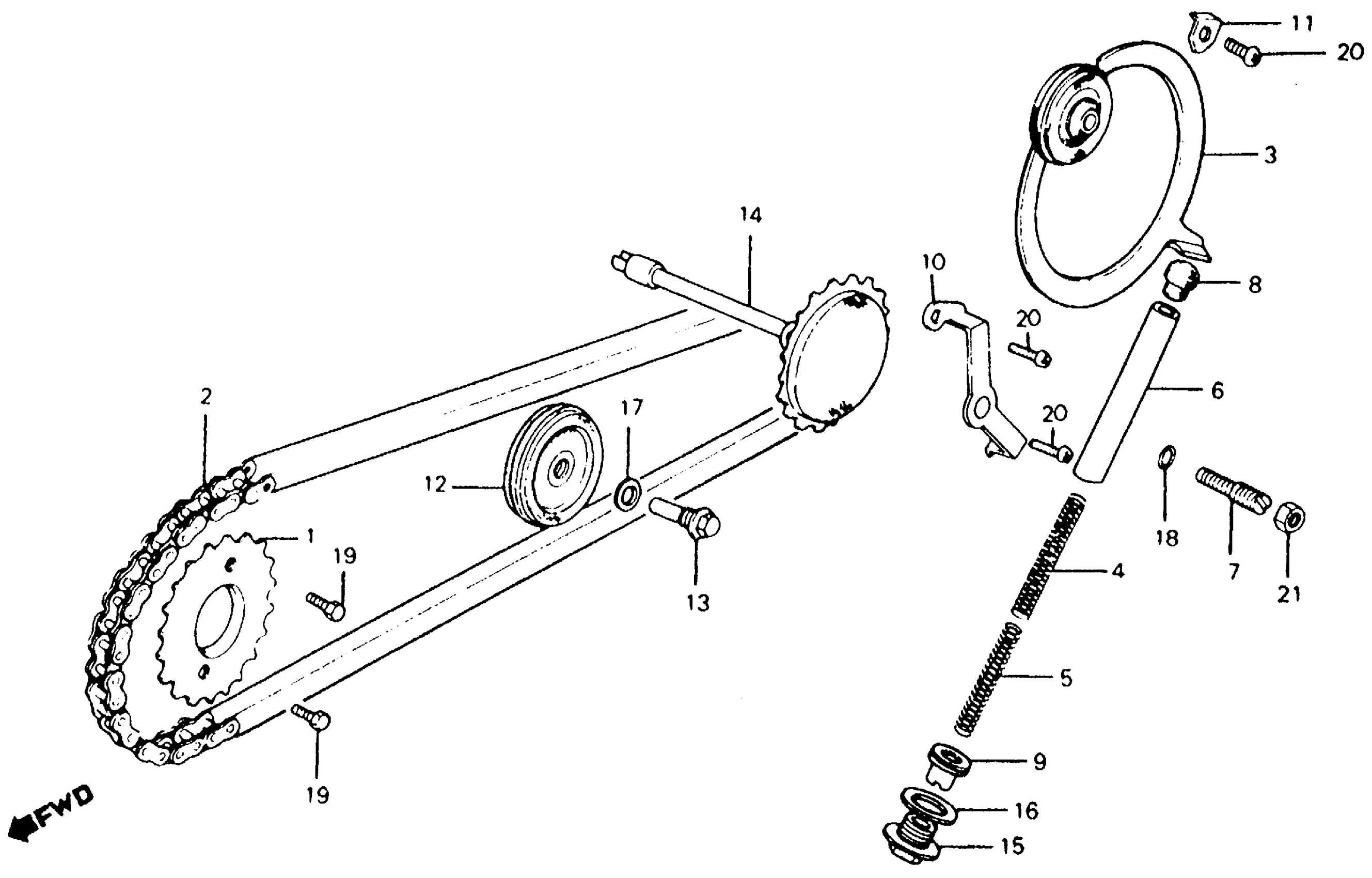

Honda CT110A (84) TRAIL 110, JPN, VIN# JH2JD010-ES400001 TO JH2JD010-ES407001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (30T)

14321-028-000

Unavailable

2

CHAIN, CAM (92L) (DAIDO)

14401-459-003

Unavailable

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-096-020

Unavailable

4

SPRING A, CAM CHAIN TENSIONER

14541-086-010

Unavailable

5

SPRING B, CAM CHAIN TENSIONER

14542-086-000

$4.24

6

ROD, CAM CHAIN TENSIONER PUSH

14550-086-010

Unavailable

7

BOLT, CAM CHAIN TENSIONER ADJUSTING

14561-086-010

$10.41

8

HEAD, CAM CHAIN TENSIONER PUSH ROD

14561-096-000

$1.80

9

BOLT B, CAM CHAIN TENSIONER ADJUSTING

14562-086-000

Unavailable

10

PLATE, TENSIONER SETTING This part replaces 14592-459-000.

14592-459-010

Unavailable

10

PLATE, TENSIONER SETTING

14592-459-010

Unavailable

11

PLATE B, CAM CHAIN TENSIONER SETTING

14593-028-010

Unavailable

12

ROLLER, CAM CHAIN GUIDE This part replaces 14610-105-690.

14610-105-691

Unavailable

12

ROLLER, CAM CHAIN GUIDE

14610-105-691

Unavailable

13

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

13

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

14

SPROCKET, CAM CHAIN GUIDE (29T)

14670-028-000

Unavailable

15

BOLT, SEALING (14MM)

90081-086-000

$5.44

16

WASHER, SEALING (14MM)

90441-035-000

$2.39

17

WASHER (8MM)

90481-035-000

$1.87

18

O-RING (5.5X1.5)

91301-216-000

$2.38

19

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

19

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

19

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

20

SCREW, PAN (6X12)

93500-06012-0A

$1.49

21

NUT, HEX. (8MM)

94002-08000-0S

$1.49
