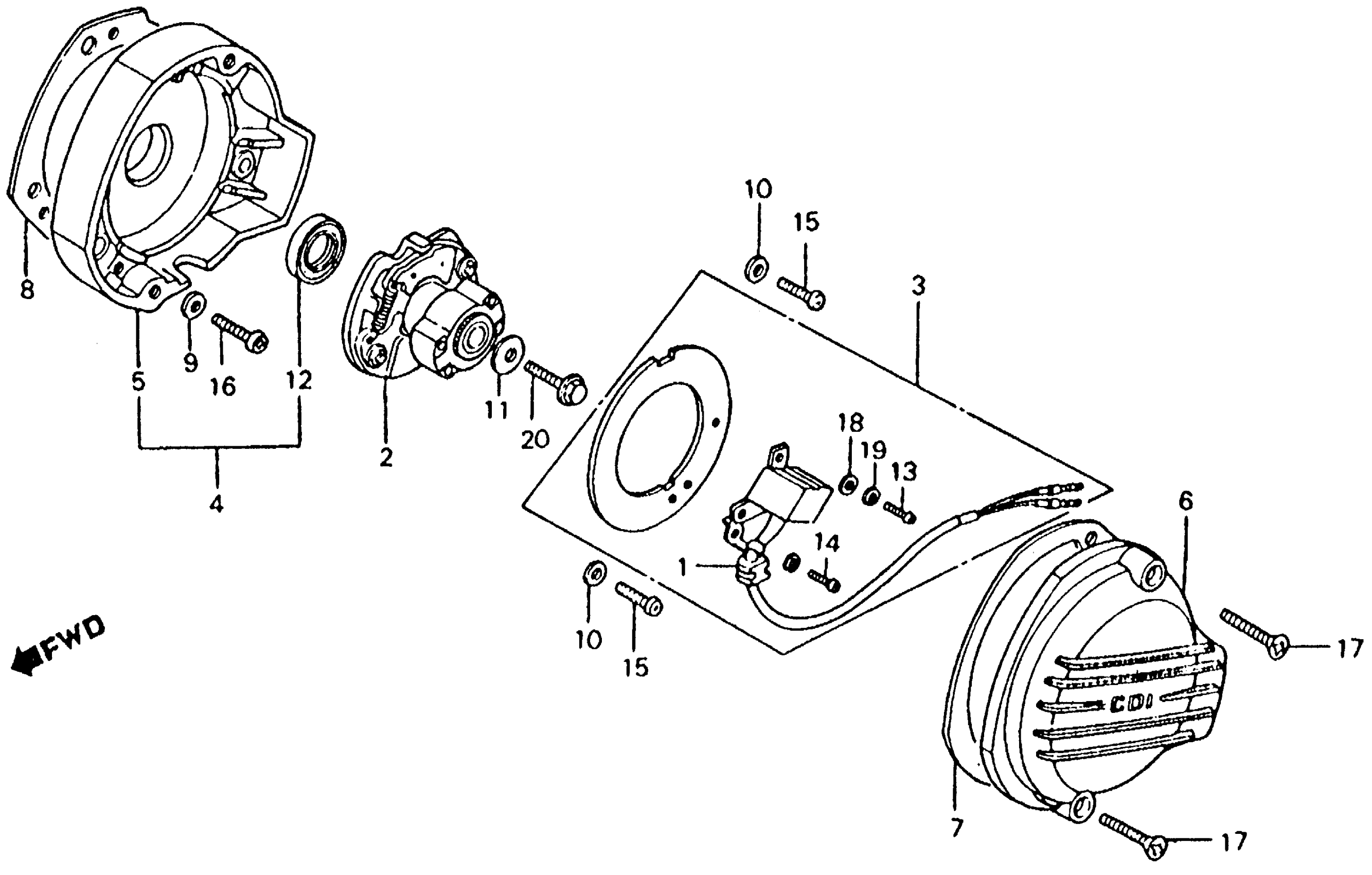

Honda CT110A (82) TRAIL 110, JPN, VIN# JH2JD010-CS200001 TO JH2JD010-CS206370 SPARK ADVANCER + PULSE GENERATOR 82-86 Diagram

#

Description
Price

1

GROMMET, PRIMARY WIRE

30201-437-300

Unavailable

2

ADVANCER ASSY., SPARK

30220-459-751

Unavailable

3

GENERATOR ASSY., PULSE (TOYO) | Use up to Engine SN CS203390 This part replaces 30300-121-741.

30300-121-751

Unavailable

3

GENERATOR ASSY., PULSE (TOYO)

30300-121-751

Unavailable

4

BASE ASSY., PULSE GENERATOR (NOT AVAILABLE)

30360-121-740

Unavailable

5

BASE, PULSE GENERATOR (NOT AVAILABLE)

30361-121-740

Unavailable

6

COVER, PULSE GENERATOR (NOT AVAILABLE)

30371-121-740

Unavailable

7

GASKET This part replaces 30391-121-306.

30391-121-631

Unavailable

7

GASKET This part replaces 30391-121-630.

30391-121-631

Unavailable

7

GASKET This part replaces 30391-121-740.

30391-121-631

Unavailable

8

GASKET, POINT BASE This part replaces 30392-121-306.

30392-121-631

Unavailable

8

GASKET, POINT BASE This part replaces 30392-121-630.

30392-121-631

Unavailable

8

GASKET, POINT BASE This part replaces 30392-121-690.

30392-121-631

Unavailable

9

WASHER, SEALING (6MM)

90441-028-010

$2.92

10

WASHER (5MM)

90482-028-000

$2.09

11

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

12

OIL SEAL (13X22X5) This part replaces 30362-028-000.

91201-028-005

$8.11

12

OIL SEAL (13X22X5) This part replaces 91201-028-000.

91201-028-005

$8.11

12

OIL SEAL (13X22X5) This part replaces 91201-028-003.

91201-028-005

$8.11

12

OIL SEAL (13X22X5)

91201-028-005

$8.11

13

SCREW, PAN (4X6) | Use up to Engine SN CS203390

93500-04006-0H

$1.49

13

SCREW, PAN (4X6) | Use from Engine SN CS203391

93500-04006-0H

$1.49

13

SCREW, PAN (4X6) | Use up to Engine SN CS203390 This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

13

SCREW, PAN (4X6) | Use from Engine SN CS203391 This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

14

SCREW, PAN (4X8) | Use from Engine SN CS203391

93500-04008-0H

$1.49

14

SCREW, PAN (4X8) | Use from Engine SN CS203391 This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

15

SCREW, PAN (5X10)

93500-05010-0A

$1.49

16

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

16

SCREW, PAN (6X16)

93500-06016-0A

$1.49

17

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

18

WASHER, PLAIN (4MM)

94101-04800

$1.49

19

WASHER, SPRING (4MM)

94111-04800

$1.49

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
