- CT110A (80) TRAIL 110, JPN, VIN# JD01-5000001 TO JD01-5009733
LEFT CRANKCASE COVER + ALTERNATOR 80

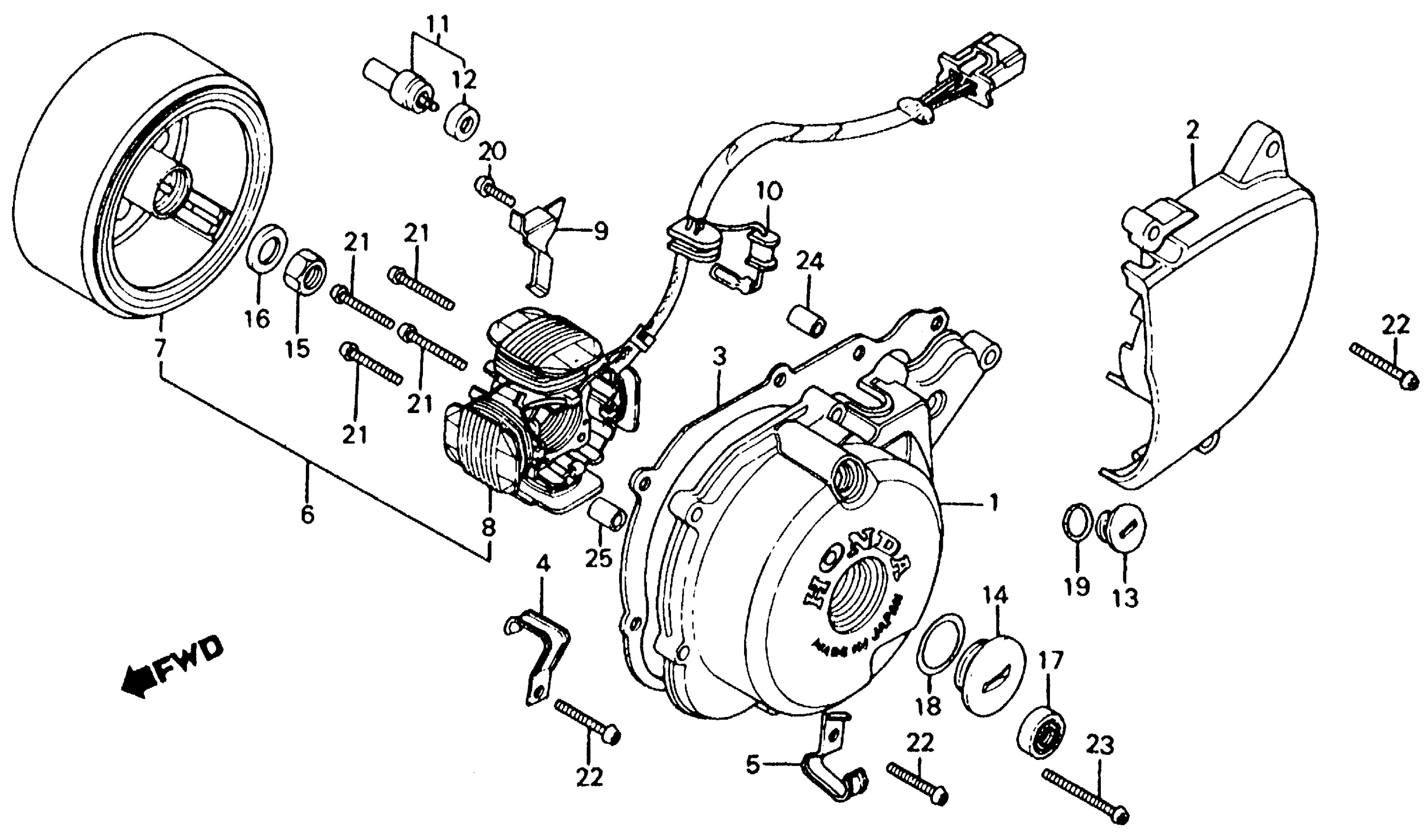

Honda CT110A (80) TRAIL 110, JPN, VIN# JD01-5000001 TO JD01-5009733 LEFT CRANKCASE COVER + ALTERNATOR 80 Diagram
#
Description
Price
1
COVER, L. CRANKCASE
11341-459-010
Unavailable
2
COVER, L. RR. CRANKCASE (NOT AVAILABLE)
11361-459-000
Unavailable
3
GASKET, L. This part replaces 11395-459-000.
11395-459-952
Unavailable
3
GASKET, L. This part replaces 11395-459-306.
11395-459-952
Unavailable
3
GASKET, L. This part replaces 11395-459-951.
11395-459-952
Unavailable
4
CLAMP, TUBE (NOT AVAILABLE)
16236-102-770
Unavailable
5
CLAMP (NOT AVAILABLE)
16237-102-770
Unavailable
6
ALTERNATOR ASSY. (NOT AVAILABLE)
31100-459-023
Unavailable
7
ROTOR (NOT AVAILABLE)
31110-459-013
Unavailable
8
STATOR (DENSO)
31120-459-023
Unavailable
9
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE) This part replaces 32961-459-010.
32961-459-770
Unavailable
9
CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)
32961-459-770
Unavailable
10
GROMMET, NEUTRAL SWITCH WIRE (NOT AVAILABLE)
32981-121-003
Unavailable
11
CONTACT ASSY., NEUTRAL SWITCH | Use up to Engine SN 5003021 This part replaces 35750-071-020.
35750-071-030
Unavailable
11
CONTACT ASSY., NEUTRAL SWITCH | Use up to Engine SN 5003021
35750-071-030
Unavailable
12
SPACER, NEUTRAL SWITCH | Use up to Engine SN 5003021 This part replaces 35752-071-320.
35752-071-330
Unavailable
12
SPACER, NEUTRAL SWITCH | Use up to Engine SN 5003021
35752-071-330
Unavailable
13
CAP, ALTERNATOR This part replaces 90084-428-000.
90084-471-000
Unavailable
13
CAP, ALTERNATOR
90084-471-000
Unavailable
14
CAP (30MM) This part replaces 90087-428-000.
90087-KF9-900
Unavailable
15
NUT (14MM)
90241-459-000
Unavailable
16
WASHER, PLAIN (14MM)
90487-459-000
Unavailable
