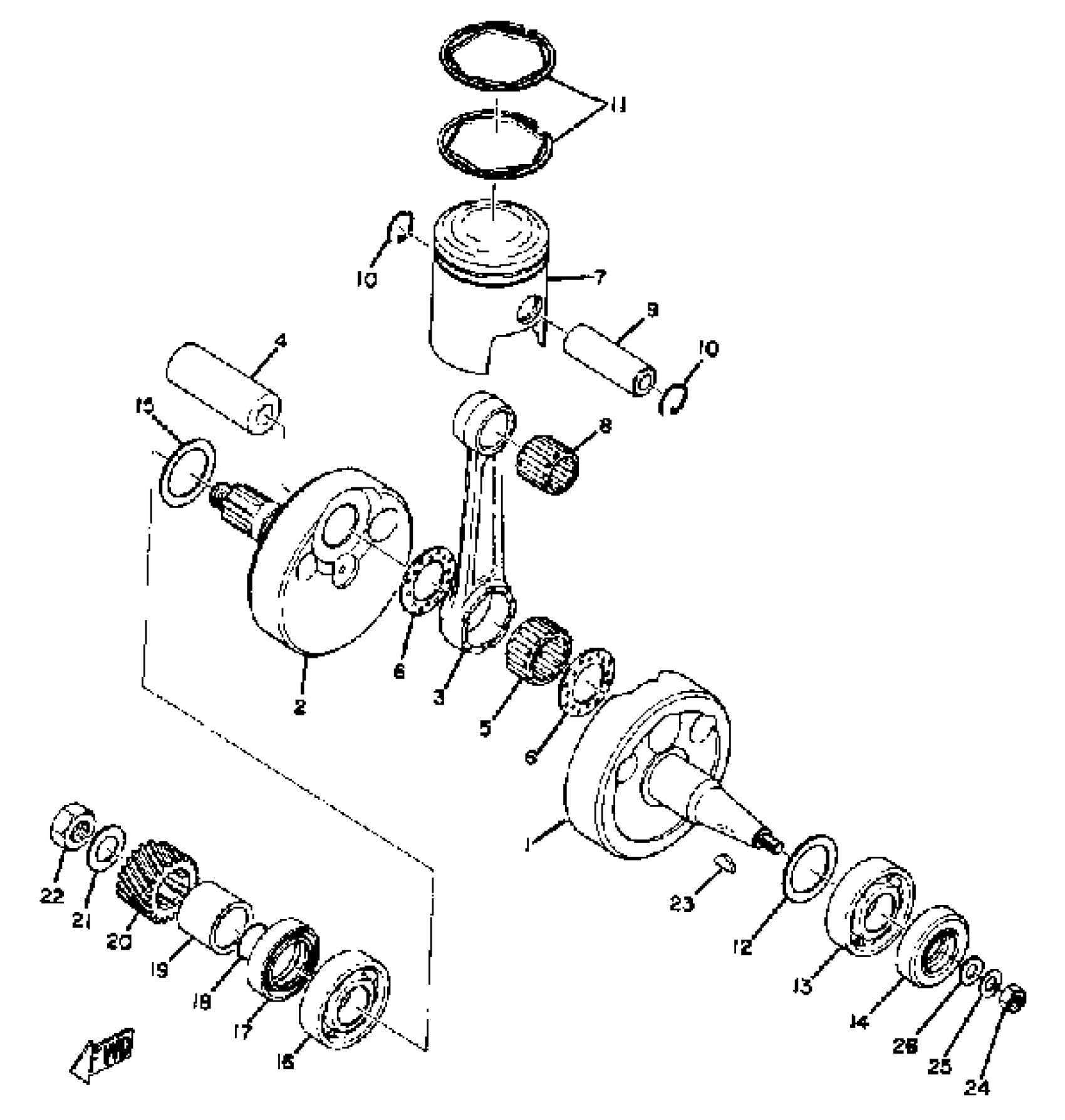

Yamaha CT1 (CT1) 1969 CRANK - PISTON Diagram

CRANKSHAFT ASSEMBLY

(248-11400-01-00)

Unavailable

CRANK 1

(248-11412-00-00)

Unavailable

CRANK 2

(248-11422-00-00)

Unavailable

. ROD, CONNECTING

3R2-11651-01-00

Unavailable

PIN, CRANK 1

3M5-11681-00-00

$24.99

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

WASHER (29L)

90209-22248-00

Unavailable

PISTON STD

251-11631-00-96

Unavailable

PISTON 1 O/S 0.25

251-11635-00-00

Unavailable

PISTON 2 O/S 0.50

251-11636-00-00

Unavailable

PISTON 3 O/S 0.75

251-11637-00-00

Unavailable

PISTON 4 O/S 1.00

(251-11638-00-00)

Unavailable

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

$26.99

PIN, PISTON

251-11633-00-00

$29.99

CIRCLIP (137-11634-00)

93450-17025-00

$8.49

PISTON RINGSET STD

251-11601-00-00

Unavailable

PISTON RINGSET 1ST

251-11601-10-00

Unavailable

PISTON RINGSET 2ND

251-11601-20-00

Unavailable

PISTON RINGSET 3RD

251-11601-30-00

Unavailable

PISTON RINGSET 4TH

251-11601-40-00

Unavailable

. SHIM, CRANK 1

132-11561-00-03

Unavailable

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

Unavailable

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

SHIM, CRANK 1

136-11561-00-03

Unavailable

SHIM, CRANK 1

136-11561-00-04

Unavailable

SHIM, CRANK 1

136-11561-00-05

Unavailable

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

O-RING(3KX)

93210-180A6-00

Unavailable

COLLAR (4Y2)

90387-205E9-00

Unavailable

GEAR, PRI DRIVE

(248-16111-00-00)

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

NUT(55K)

90170-12347-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

WASHER (492)

90201-12535-00

Unavailable
