1969 Yamaha CT1 (CT1) Clutch Diagram

← All diagrams

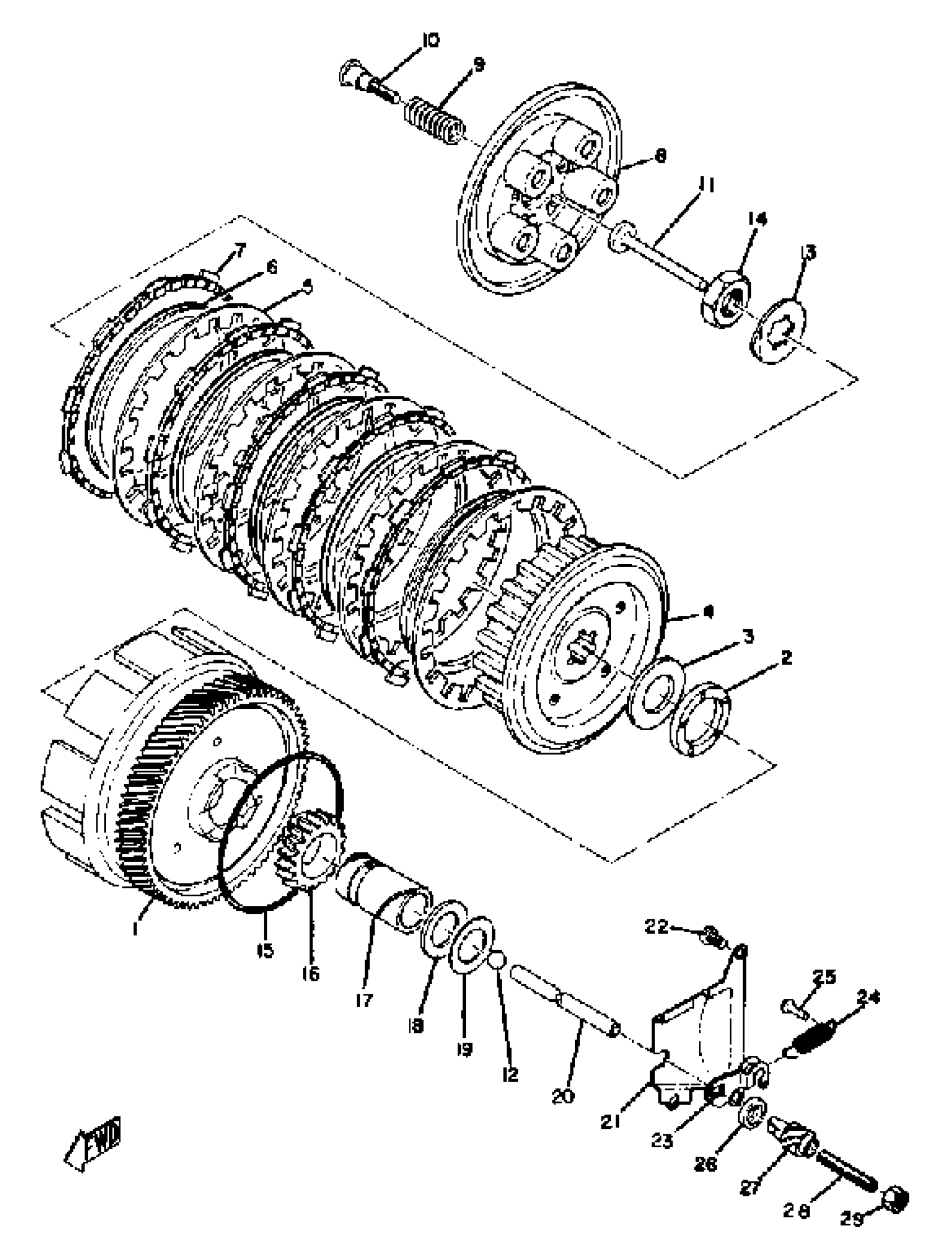

Find the part on the Clutch diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha CT1 (CT1) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(248-16150-02-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(248-16301-02-00)

1
Out of stock

2

. BEARING, FLAT #41

93341-22603-00

1
Out of stock

3

. PLATE, THRUST 1

174-16154-00-00

1
Out of stock

4

. BOSS, CLUTCH

174-16371-01-00

1
Out of stock

5

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

6

RING, CUSHION

137-16367-00-00

1

$14.80

In stock

7

PLATE, FRICTION

3HA-16321-00-00

1

$26.75

In stock

8

PLATE, PRESSURE

132-16351-00-00

1

$50.51

In stock

9

1

$6.17

In stock

10

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

11

ROD,PUSH (1)

137-16356-00-00

1

$28.05

In stock

12

BALL

93501-04011-00

1
Out of stock

13

WASHER, LOCK (1L8)

90215-16127-00

1

$8.91

In stock

14

NUT,SPEC'L SHAPE

90179-16018-00

1

$11.26

In stock

15

O-RING (173)

93210-85075-00

—

$4.52

In stock

16

GEAR, KICK PINION

174-15631-01-00

1
Out of stock

17

COLLAR (174-16181-00)

90387-20439-00

1
Out of stock

18

PLATE, THRUST 2

174-16164-00-00

1
Out of stock

19

PLATE, THRUST 2

248-16164-01-00

1
Out of stock

20

ROD, PUSH 2

248-16357-00-00

1
Out of stock

21

SEAL, DUST

(248-18428-00-00)

1
Out of stock

22

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

23

LEVER, PUSH

241-16342-00-00

—

$6.31

In stock

24

—

$5.72

In stock

25

HOOK, SPRING

132-16346-00-00

—
Out of stock

26

SEAL 0IL (2V7)

93104-10085-00

—
Out of stock

27

SCREW, PUSH

241-16341-01-00

—
Out of stock

28

BOLT SET 241163430000

90113-06013-00

—
Out of stock

29

NUT(650)

95380-06700-00

—

$6.17

In stock
