1982 Kawasaki CSR Twin Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 1982 Kawasaki CSR Twin, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

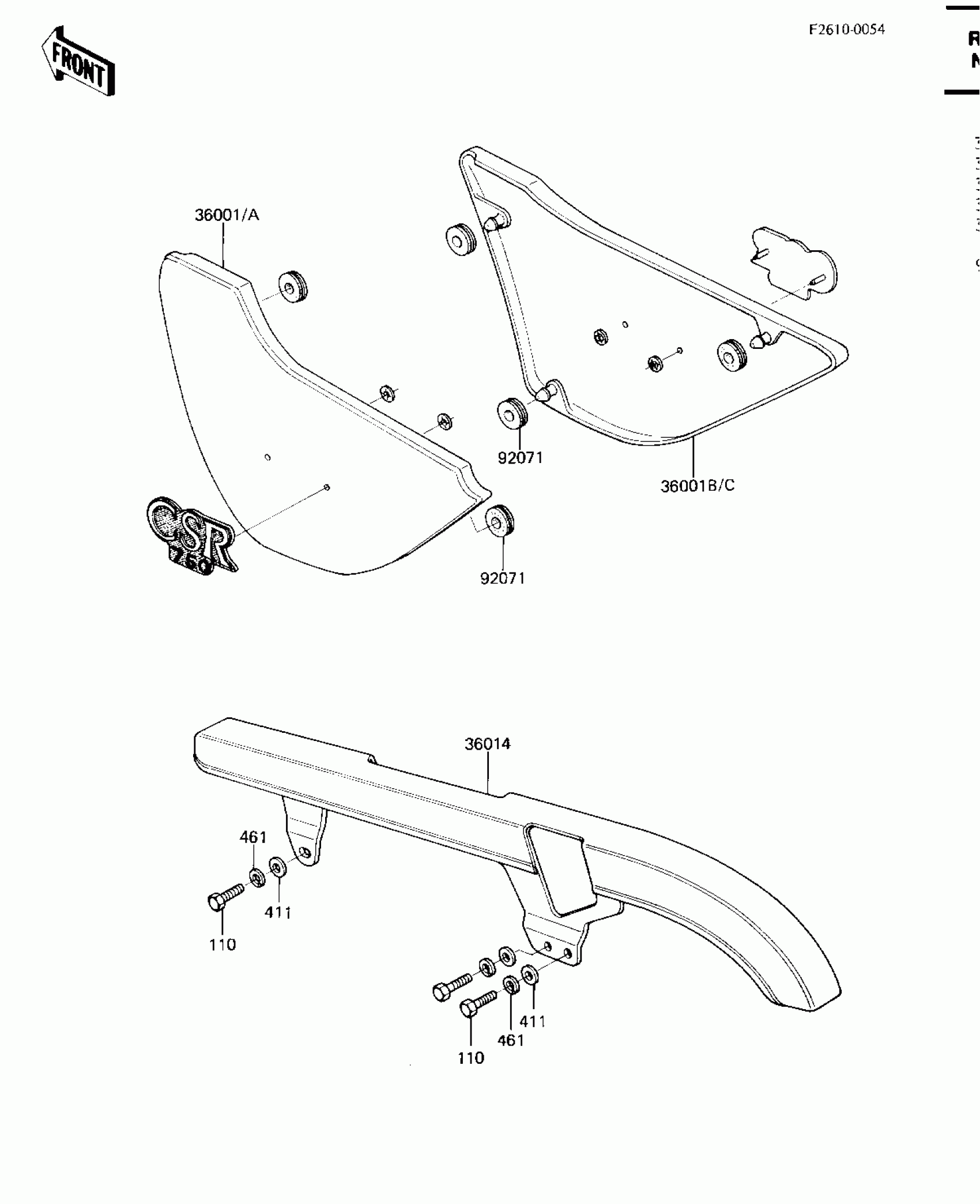

1982 Kawasaki CSR Twin Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,L.H L.M R

36001-1135-E2

1

$117.74

In stock

36001A

COVER,L.H SIDE,EBONY

36001-1135-8G

1

$114.82

In stock

36001B

COVER-SIDE,R.H L.M R

36001-1136-E2

1

$117.95

In stock

36001C

COVER,R.H SIDE,EBONY

36001-1136-8G

1

$104.63

In stock

36014

CASE,CHAIN

36014-1039

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
