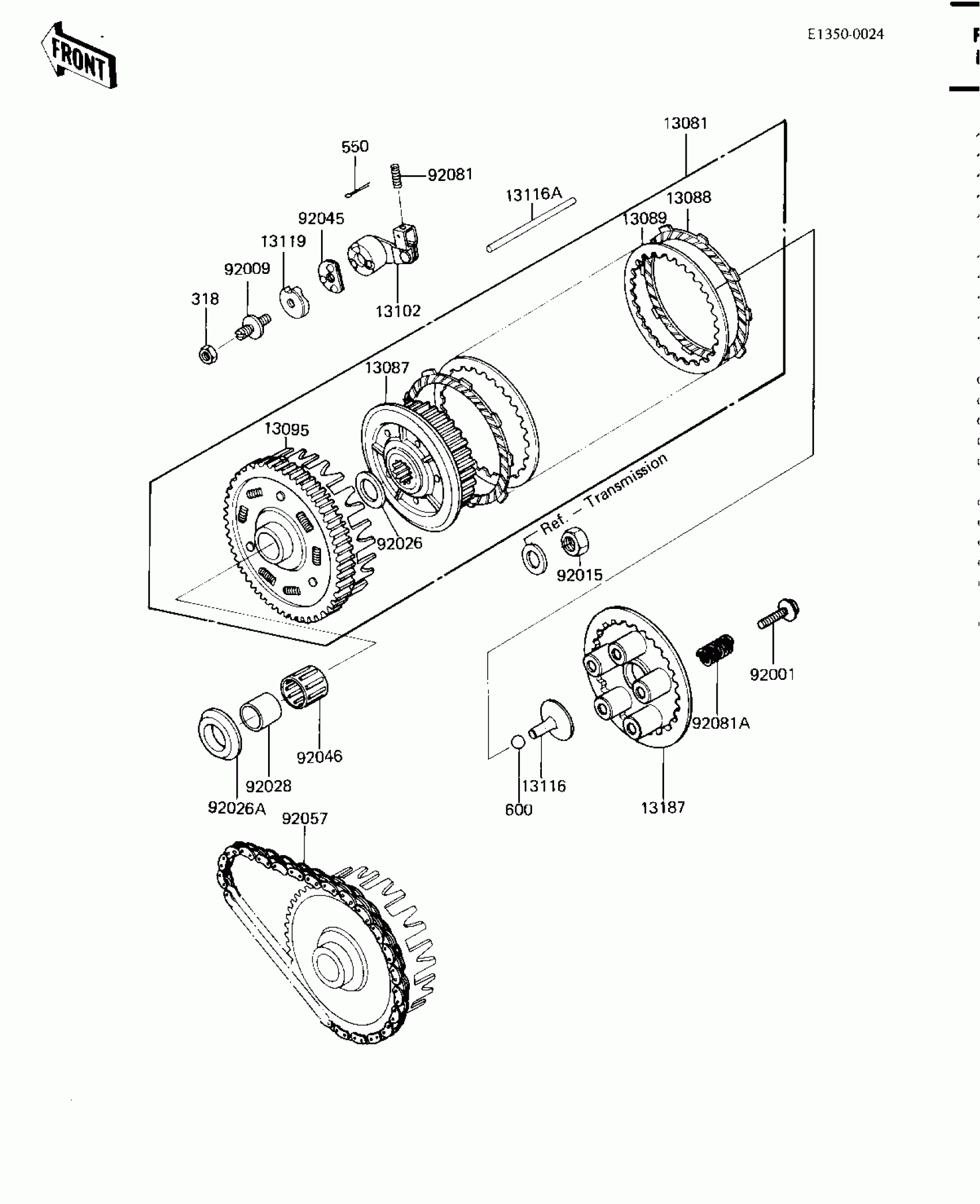

Kawasaki CSR Twin CLUTCH Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-1069

Unavailable

13087

HUB-CLUTCH

13087-042

Unavailable

13088

PLATE-FRICTION

13088-1013

$11.96

13089

PLATE-CLUTCH

13089-027

$9.73

13095

HOUSING,CLUTCH

13095-050

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1012

Unavailable

13116

PUSHER,CLUTCH SPRG P

13116-022

Unavailable

13116A

ROD,CLUTCH PUSH

13116-1007

Unavailable

13119

CAM-RELEASE,CLUTCH

13119-1003

$15.92

13187

PLATE,CLUTCH SPRING

13187-008

Unavailable

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92009

SCREW,8MM

92009-1009

Unavailable

92015

NUT,20MM

92015-1555

$9.95

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER

92026-123

Unavailable

92028

BUSHING,25X32X23.6

92028-178

$23.53

92045

BEARING,BALL,CLUTCH

92045-1001

$8.82

92046

BEARING-NEEDLE,KTV323723

92046-028

$19.92

92057

CHAIN,PRIMARY

13122-008

Unavailable

92081

SPRING,CLUTCH RELEASE

92081-069

$6.39

92081A

SPRING,CLUTCH

92081-1033

$5.64

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

550

PIN-COTTER,1.6X15

550D1615

$1.80

600

BALL-STEEL,3/8"

600A1200

$1.14
