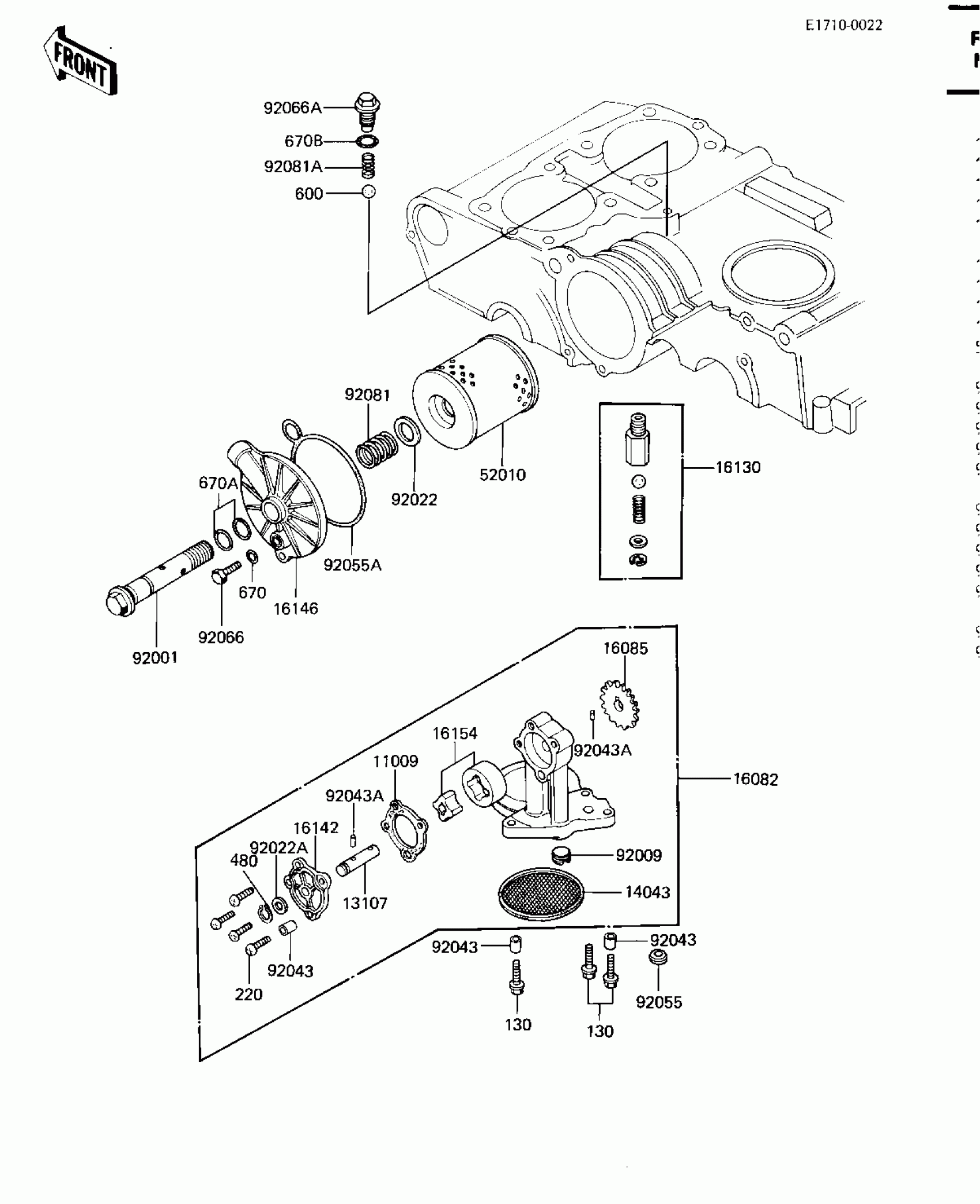

Kawasaki CSR Twin OIL PUMP/OIL FILTER Diagram

#

Description
Price

11009

GASKET,OIL PUMP

16145-003

$4.04

13107

SHAFT,OIL PUMP

16086-004

Unavailable

14043

FILTER,OIL PUMP

16111-004

$44.36

16082

OIL PUMP ASSY

16082-062

$286.02

16085

GEAR,OIL PUMP

16085-024

$55.00

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER,OIL PUMP

16142-004

$32.08

16146

COVER,OIL FILTER

16146-002

Unavailable

16154

ROTOR-PUMP

16154-003

$88.29

52010

ELEMENT-OIL FILTER

16099-002

$16.20

92001

BOLT,OIL FILTER

92003-189

Unavailable

92009

SCREW,SLOTTED

92013-008

Unavailable

92022

WASHER,20.5X30X1

92022-1012

$4.34

92022A

WASHER,11.2X15X1

92022-311

$3.92

92043

PIN,DOWEL,8X10

92043-1302

$1.03

92043A

PIN,DOWEL,4X12.8

92042-041

$6.57

92055

RING-O,OD=18

92055-048

$4.80

92055A

"O" RING

92055-084

Unavailable

92066

PLUG,OIL DRAIN

92066-024

Unavailable

92066A

PLUG,FILTER COVER

92066-050

Unavailable

92081

SPRING,OIL FILTER

92081-1018

$4.65

92081A

SPRING

92081-109

$11.29

130

BOLT-FLANGED,6X40

130G0640

$1.17

220

SCREW PAN HEAD 6X22

220B0622

$3.71

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

600

BALL-STEEL,3/8"

600A1200

$1.56

670

O RING,8MM

670B1508

$1.29

670A

O RING,16MM

670B2016

$1.36

670B

O RING,18MM

670B2018

$1.42
