Description

Price

11009

GASKET,FUEL TANK CAP

11009-1051

$10.97

11009A

GASKET,TAP VALVE

11009-1188

$5.74

16146

COVER ASSY,FUEL TAP

16146-1009

$18.54

43028

DIAPHRAGM,TAP

43028-1021

$30.59

43058

RING,TAP FLANGED

51039-003

$6.27

51001

TANK-FUEL,L.M.RED

51001-1073-E2

$818.18

51001A

TANK-FUEL,EBONY

51001-1073-8G

$835.32

51023

TAP ASSY,FUEL

51023-1030

Unavailable

51048

CAP ASSY TANK

51048-1018

Unavailable

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92022A

WASHER,5.3X10X0.8

92022-1038

$3.65

92022B

WASHER-PLAIN

92022-183

$3.92

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER,FUEL TANK

92075-125

$6.22

92075A

DAMPER,FUEL TANK

92075-295

$9.17

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW PAN HEAD 5X10

220B0510

$0.69

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

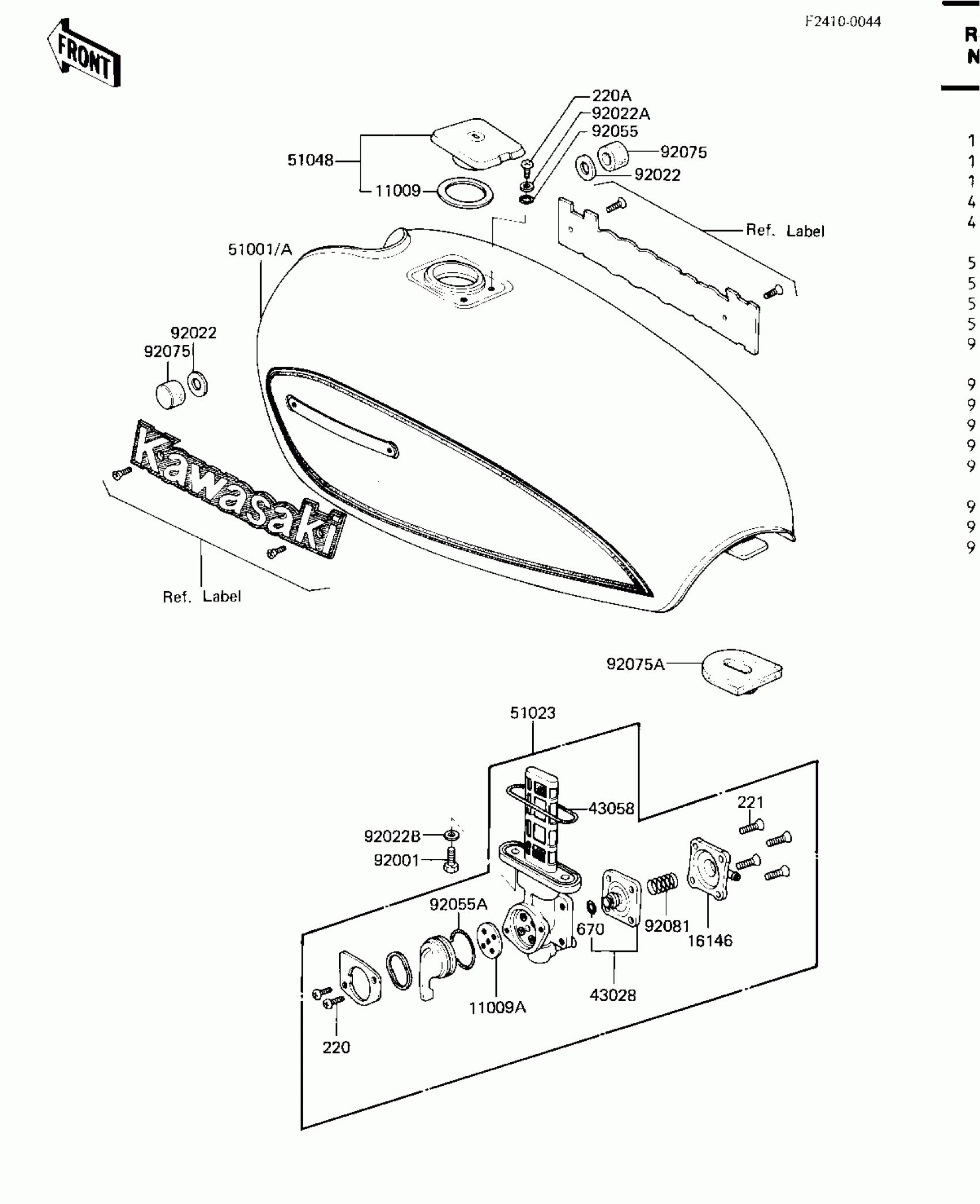

Kawasaki CSR Twin FUEL TANK Diagram

GASKET,FUEL TANK CAP

GASKET,TAP VALVE

COVER ASSY,FUEL TAP

DIAPHRAGM,TAP

RING,TAP FLANGED

TANK-FUEL,L.M.RED

TANK-FUEL,EBONY

TAP ASSY,FUEL

CAP ASSY TANK

BOLT,6X20

WASHER,10.5X26X2.3

WASHER,5.3X10X0.8

WASHER-PLAIN

RING-O

RING-O,TAP LEVER

DAMPER,FUEL TANK

DAMPER,FUEL TANK

SPRING,TAP DIAPHRAGM

SCREW-PAN-CROS,3X8

SCREW PAN HEAD 5X10

SCREW-CSK-CROS,4X14

O RING,4MM
