Partiron

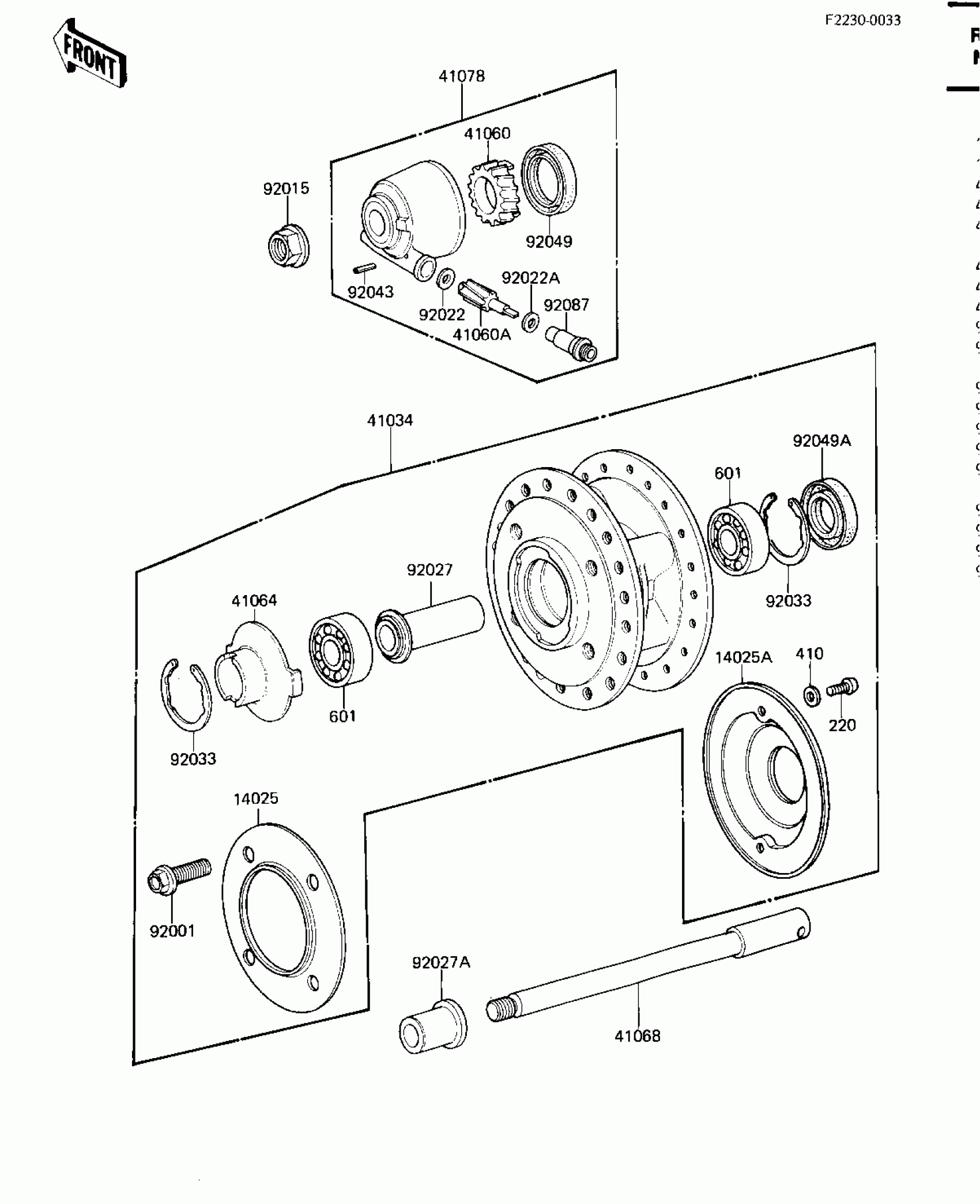

Kawasaki CSR Twin FRONT HUB Diagram

#

Description
Price

14025

COVER,DUST,LH

14025-1277

Unavailable

14025A

COVER,DUST,RH

14025-1341

Unavailable

41034

DRUM-ASSY,FR

41034-1033

$538.73

41060

GEAR-METER SCREW,26T

41059-026

$42.53

41060A

GEAR-METER SCREW,9T

41060-1016

$21.74

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FRONT,L=204M/M

41068-1009

$64.68

41078

CASE-ASSY-METER GEAR

41078-1013

Unavailable

92001

BOLT,FLANGED,10X30

92001-1173

$11.07

92015

NUT,14MM

92015-1407

$9.91

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92022A

WASHER,5.1X9X0.4

41063-001

$4.69

92027

COLLAR,L=55

92027-1223

$14.88

92027A

COLLAR,L=30

92027-1225

$17.60

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1002

$23.27

220

SCREW-PAN-CROS

220B0514

$4.04

410

WASHER PLAIN 5MM

410B0500

$0.46

601

UNAVAILABLE IN PRICE BOOK

601B63022

Unavailable
